Audio Authority 2412
12-channel UTP Transient Voltage Surge Suppressor
Audio Authority 2412
12-channel Transient Voltage Surge Suppressor
Audio Authority 2412 12-Channel UTP Transient Voltage Surge Suppressor for Cat 5e/6 protects UTP-based equipment against induced current and transient voltage that is often associated with noisy electrical environments and electrical storms.
Protect your next installation from transient electromagnetic surges that can damage or destroy sensitive electronic
equipment. These surges, sometimes exceeding 100,000 Volts, originate from lightning, power system faults, utility
grid switching, or load switching, and can effect any installation.
Supplement your standard AC power protection regimen by adding back-end protection of a system's vulnerable cable
infrastructure. When maximum uptime is critical, simply add a 2400 series product at each end of the cable to prevent
your cable from turning into an antenna that shunts damaging voltages to your equipment.
To protect equipment at the ends of long runs, add 2401 single-channel suppressors near the remote equipment (add to your cart below).
The 2412 features a special 5-year Guaranteed Repair or Replacement Warranty, which supersedes Audio Authority's normal warranty terms.
Audio Authority's Description
12-channel Transient Voltage Surge Suppressor
Model 2412
Ideal for protecting sensitive electronic equipment from transient voltage surges, the 2412 easily patches into existing UTP (unshielded twisted pair) cabling networks to provide increased reliability in even the most challenging electrical environments.
Overview
When operational stability is of paramount importance, 2400 series transient voltage surge suppressors can be the difference that protects your gear against catastrophic failure. Enhance the reliability of any UTP based system by hardening vulnerable portions of the signal path against induced current and other transient conditions that can damage critical electronics. Compatible with IP networks and most audio/video distribution systems, the 2412 stops damage before it starts.
This product features a special 5 year Guaranteed Repair or Replacement Warranty, which supersedes Audio Authority's normal warranty terms. Contact our technical support department for more information.
Features
Key Features
- Suppresses electrical transients induced into cabling
- Provides protection for audio/video distribution and switching systems, digital signage installations, and internet networks
- Compatible with video signals up to 1080p
- Compatible with data rates up to 100 Mbps
Inputs/Outputs
- RJ-45 connections (12 inputs, 12 protected outputs)
Specifications
Audio Parameters
- N/A
Video Parameters
- Compatible with most high definition video transmissions over Cat 5e/Cat 6 cable
Miscellaneous
- Connector Type: RJ-45 x 24 (12 inputs, 12 outputs)
- Dimensions: TBD [19 x 3.5 x 2.5 inch (480 x 90 x 64 mm) per Cable Solutions]
- Product Weight: TBD
- Shipping Weight: TBD
- Agency Approvals: TBD
In the Box
- User manual
Downloads
Documents
- Product Focus Sheet: 2401 and 2412
- User Manual: 2401 and 2412

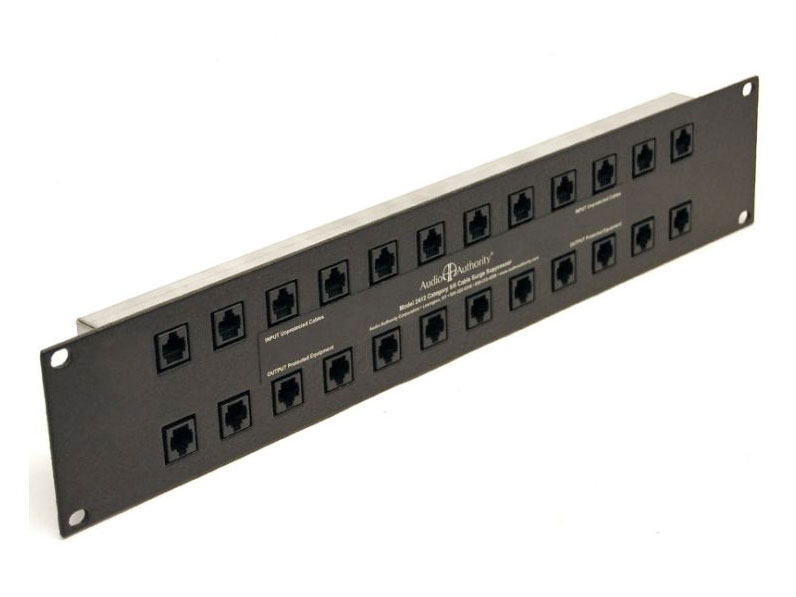

Shown here is an alternate view of the 2412 front panel.

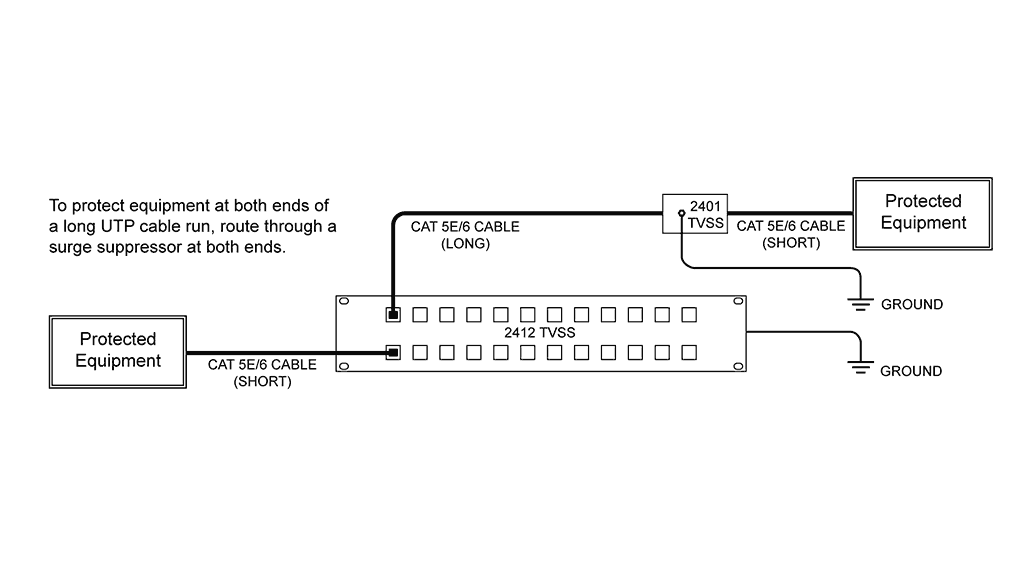

This connection example illustrates the 2412 in a typical installation.
Download this 2400-Series product focus sheet for additional information.
Here is the manual for the 2412. Click to download in PDF format.
This is the optional 2401 Single-Channel UTP Transient Voltage Surge Suppressor for use near remote equipment. Click to see the product page or add to your cart below.
