Audio Authority 1177A-1 Digital Audio Switch

Automatic Electronic Switcher for
Coaxial and Optical TOSLink Digital Audio Sources

Audio Authority Authorized Reseller Seal
The Audio Authority 1177A-1

Audio Authority 1177A-1 Digital Audio Switch / AutoSelector

Cable Solutions is proud to present the Audio Authority 1177A-1 digital audio switch!

Successor to the venerable 1177A, the 1177A-1 is manufactured by Audio Authority, exclusively for Cable Solutions.

Equal or superior to those of the 1177A, the specs for the 1177A-1 ensure outstanding performance.  Aside from the dash-one in the model number and a subtlety more luxurious finish on the case, appearance remains essentially identical.

The Audio Authority 1177A-1 Digital Audio Switch features an all-metal cabinet for optimal shielding and appearance and the new design includes new circuit board architecture for superior performance.

This high-performance digital audio switch can expand the digital audio capacity of any audio system. It automatically selects the active audio input and it can convert optical and coaxial signals automatically and transparently so you can connect any combination of optical TOSLink or coaxial digital audio sources.

The 1177A-1 digital audio switcher simultaneously outputs both optical and coaxial signals, seamlessly converting between the two formats. As an example, you can have a satellite receiver connected to input one via TOSLink optical cable and a CD player connected to input two via coaxial cable.  The switcher monitors all inputs, waiting for a state change.  So in the example above, if the satellite receiver is turned on, the 1177A-1 would automatically switch to that input.  Subsequently, if the CD player is then turned on, the switcher would sense the presence of the new source, and switch to that input.

Interestingly, this works even if the first source is not turned off, which is a great feature, because some devices, like satellite and cable boxes, continue to transmit a digital audio carrier even when they are turned "off".  Obviously the auto-select feature cannot work if more than one source refuses to stop transmitting a carrier, so if you have a situation like that, you might be better served by a switcher that can be controlled via IR remote.

Assuming that most of your devices actually do turn off when not in use, it works very well.  And regardless of which input is active, the switcher will simultaneously output both optical and coaxial digital audio from that source. Being a digital switcher, the 1177A-1 is capable of passing SPDIF signals in just about any format or clock rate, so it supports all Dolby Digital, DTS, and PCM formats.

The included universal power supply ensures that the 1177A-1 will work just about anywhere in the world, although customers outside of the USA will probably need a passive adapter for the plug.

Like most Audio Authority products, the 1177A-1 Digital Audio Switch comes with a one year limited warranty from the manufacturer.

Audio Authority's Description

Manufacturer Descriuption

Audio Authority1177A-1

Multi-color LEDs on the front panel  indicate "auto" mode and input selection status.  A push-button switch for manual source selection is also included.

Audio Authority1177A-1 Front Panel

Here is a closer look at the front panel.

Audio Authority 1177A-1 cabinet finish

We have attempted to capture the subtle qualities of the finish in this back-lit photo.  There is a subdued metallic appearance to the nicely textured finish.  It is difficult to capture in a photo, but easy to appreciate in person.

Audio Authority 1177A-1 back panel

This close-up of the back panel clearly shows four optical TOSLink digital audio inputs at the upper right, with a corresponding coaxial digital input just below.  The output connectors are situated on the left side, with the power input connector just to their right.

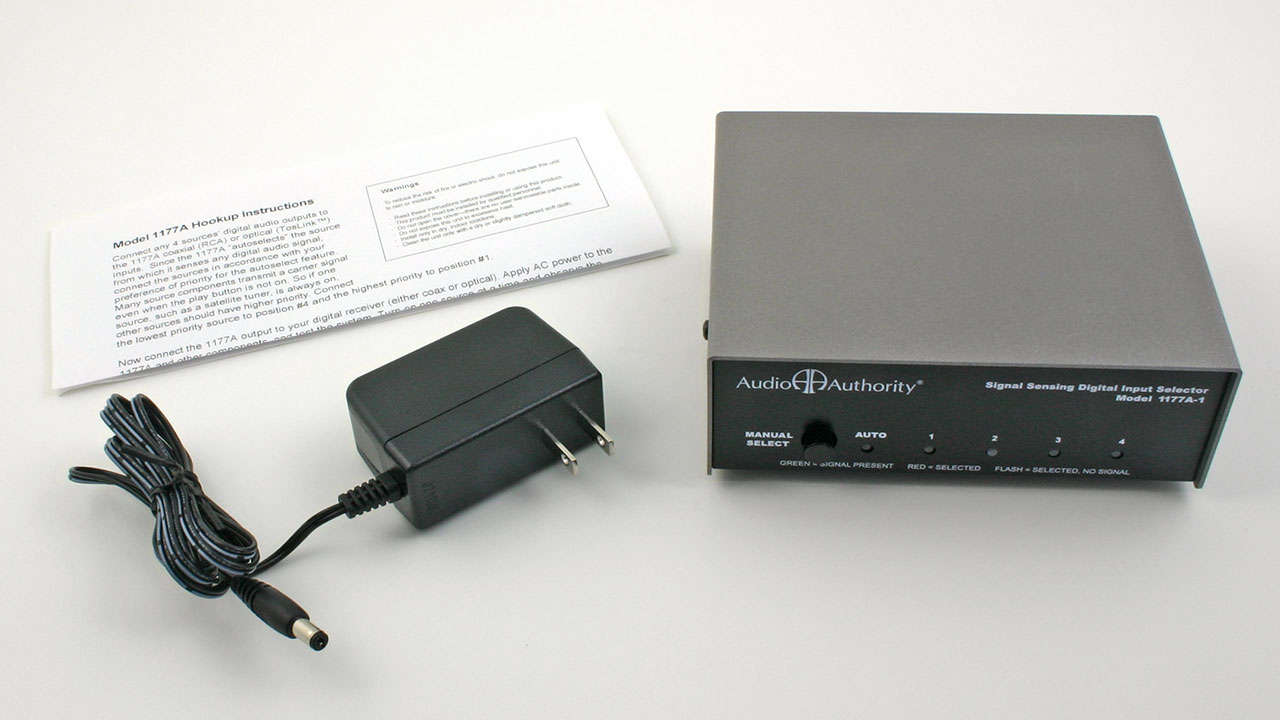

Audio Authority 1177A-1 - included items

Here are the items that are included in the box. Beginning at the upper right is the  1177A-1 unit itself.  Moving in a clockwise direction, you can see a universal power supply, and an installation instruction sheet.

Audio Authority 1177A-1 universal power supply

Here is a closer look at the labeling on the included universal power supply. This power supply will work with just about anywhere in the world, although the plug itself is intended for the USA, so international customers will need a passive adapter.

Audio Authority 1177A-1 package

This is a typical product box.

Audio Authority 1177A-1 Product Focus Sheet

Product focus sheet in PDF format - click to download.

Audio Authority 1177A-1 User Manual

User manual - click to download PDF.

Purchase Information
Product Description SKU MSRP Your Price Quantity
Audio Authority 4x1 Digital Audio AutoSelector Switch 1177A-1 $399.99 DISCONTINUED SOLD OUT
SSL Secure Site Logo This item has been discontinued - please take a look at this model.
