Intelix VGA-UHR-F
Ultra-High Resolution VGA Balun

Broadcast-Grade Active Cat 5 Video Extender

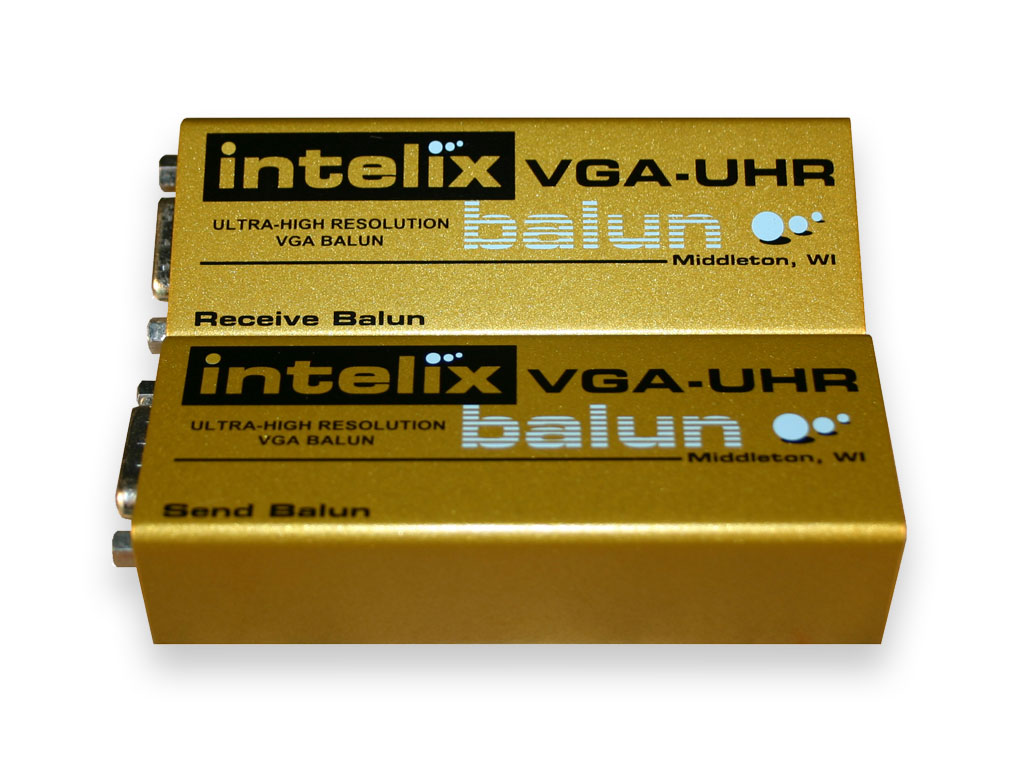

Intelix VGA-UHR-F Ultra-High Resolution VGA Balun Set

Intelix VGA-UHR-F Ultra-High Resolution VGA Balun Set

The Intelix VGA-UHR-F Ultra-High Resolution VGA Balun transmits / receives VGA Video signals up to 550 feet over a single twisted-pair cable, such as Cat-5 or Cat-6.

This professional-grade active balun / extender delivers crisp video at resolutions up to 1920 x 1200, making it an ideal solution for corporate A/V, schools, churches, auditoriums, as well as for use by discriminating individuals - just about any situation that involves video distribution.

The VGA-UHR-F set includes transmitter, receiver, power supply and a VGA cable.

If you do not need as much range, the VGA-HR-F, is a viable option. It transmits / receives VGA Video signals up to 350 feet over a single CAT 5 type cable.

While the VGA-UHR-F may be used stand-alone, if you may need a clean rack mounting option for a variety of baluns, the 19" rack kit, DIN-RACK-KIT-F, is ideal.

As with virtually all systems that are based upon twisted-pair cable technology, the Intelix VGA-UHR-F will work with virtually any twisted-pair cables, including Cat-5e and Cat-6, but range and bandwidth are directly related to both distance and cable quality, so to get the highest resolutions at the greatest distances, you will want high-quality, low-skew cables. If you want the very best pre-terminated cables, please consider our VideoTwist cables.

As long as boardrooms present visual data and churches project hymnal lyrics, Intelix will continue providing the technology which makes VGA distribution possible--inexpensively and effectively.

Like most Intelix products, the AVO-UHR-F comes with a two year limited warranty from the manufacturer.

Intelix's Description

VGA-UHR-F Ultra-High Resolution VGA Balun

Sold in pairs, the Intelix VGA-UHR-F balun transmits WSXGA (1920 x 1200) resolution video up to 550 feet over structured cabling, such as regular Cat 5. The VGA-UHR-F features custom dipswitch adjustment, allowing you to eliminate color skew, bleed, and ghosting--problems frequently associated with extended distance VGA distribution. The VGA-UHR-F also features gain control for boosting the video signal.

The Intelix VGA-UHR-F active VGA balun allows WUXGA (1920x 1200 pixel) signals to be transmitted up to 550 feet using standard Cat 5 unshielded twisted pair cabling.

Features

  • Up to 550 feet transmission (WUXGA: 1920 x 1200)
  • RF Shielded metal casing
  • Custom color skew adjustment
  • Custom gain control
  • Bandwidth up to 350 MHz
  • Small, easily-mountable packaging
  • Includes send balun, receive balun, 5VDC power supply, and six foot VGA M-F jumper cable

Design with Intelix and Design with Intelligence.

Intelix VGA-UHR-F Ultra-High Resolution VGA Balun Set - Connection Example 1

In this connection example, a laptop computer is connected to a remote monitor via a VGA-UHR-F balun set and

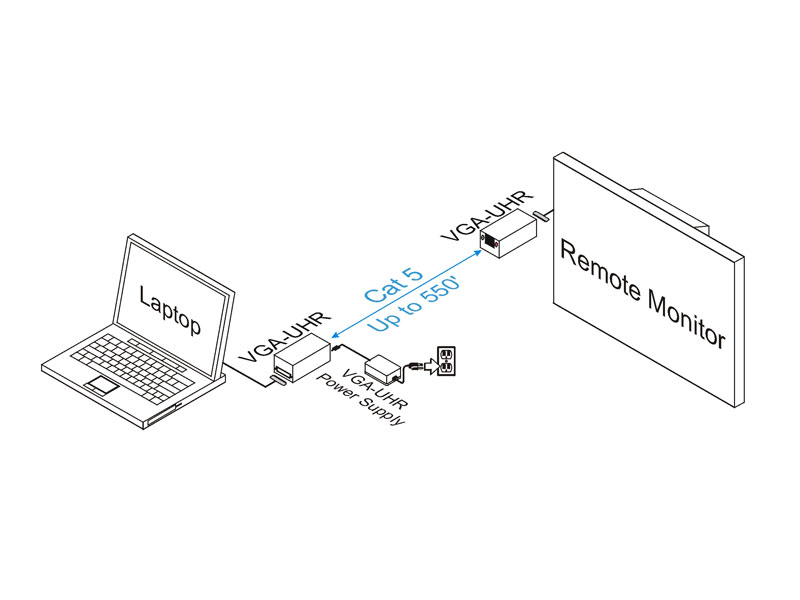

Cat 5. The VGA-UHR-F send and receive units connect to the source and destination devices via VGA cables. The VGA-UHR-F power supply connects to the send unit.

Intelix VGA-UHR-F Ultra-High Resolution VGA Balun Set - Connection Example 2

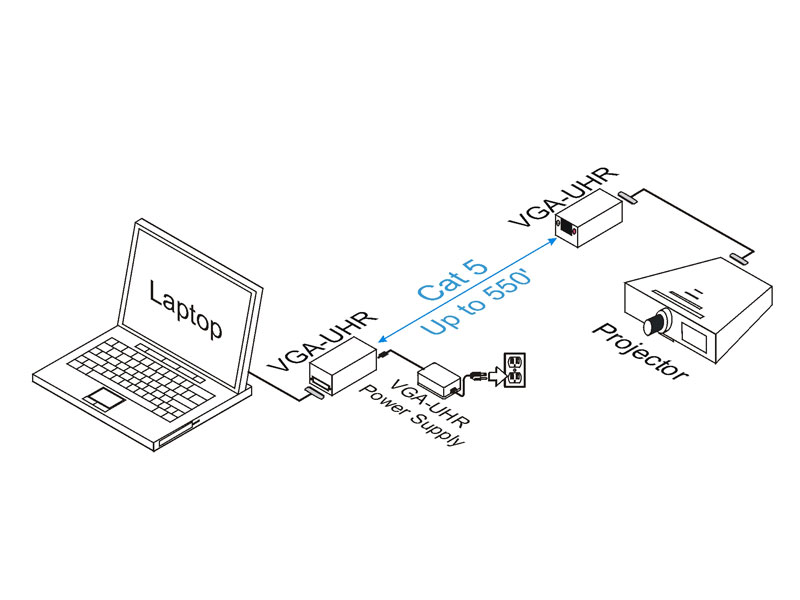

Example System 2: A laptop computer is connected to a projector via a VGA-UHR-F balun set and Cat 5. The VGA-UHR-F send and receive units connect to the source and destination devices via VGA cables. The VGA-UHR-F power supply connects to the send unit.

Intelix VGA-UHR-F Ultra-High Resolution VGA Balun Set - Connection Example 3

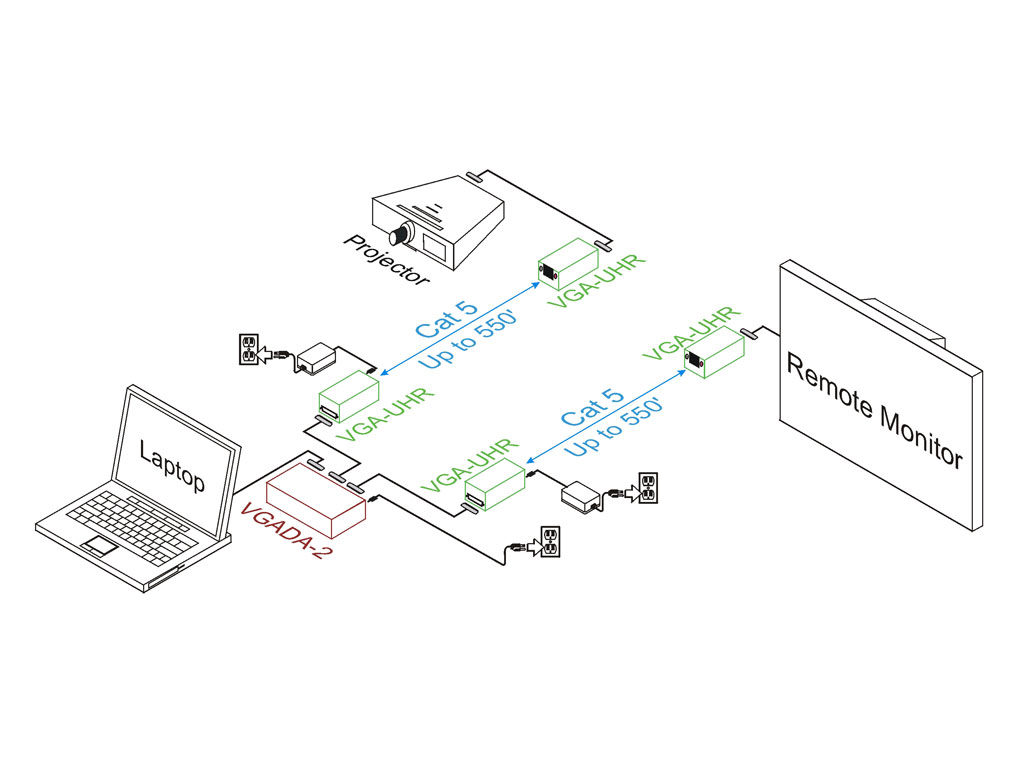

Example System 3: Video from a laptop computer is routed to two remote monitors over Cat 5 cabling. Because the remote monitors are located in different locations, the video is split by a VGADA-2 and then transmitted by a VGA-HR-F or VGA-UHR-F balun.

Intelix VGA-UHR-F Ultra-High Resolution VGA Balun Set - Spec Sheet (click to download PDF)

Here are the technical specs in PDF format.

Intelix VGA-UHR-F Ultra-High Resolution VGA Balun Set - Installation Manual (click to download PDF)

Here is the Installation Manual in PDF format.

Purchase Information
Product Description SKU MSRP Your Price Quantity
Ultra-High Resolution VGA Balun Set (550 Ft) VGA-UHR-F $505.95 SOLD OUT SOLD OUT
