Intelix DIGI-HD-UHR2-S HDMI IR Balun
HDMI v.1.3b over Twisted-Pair Extender Transmitter

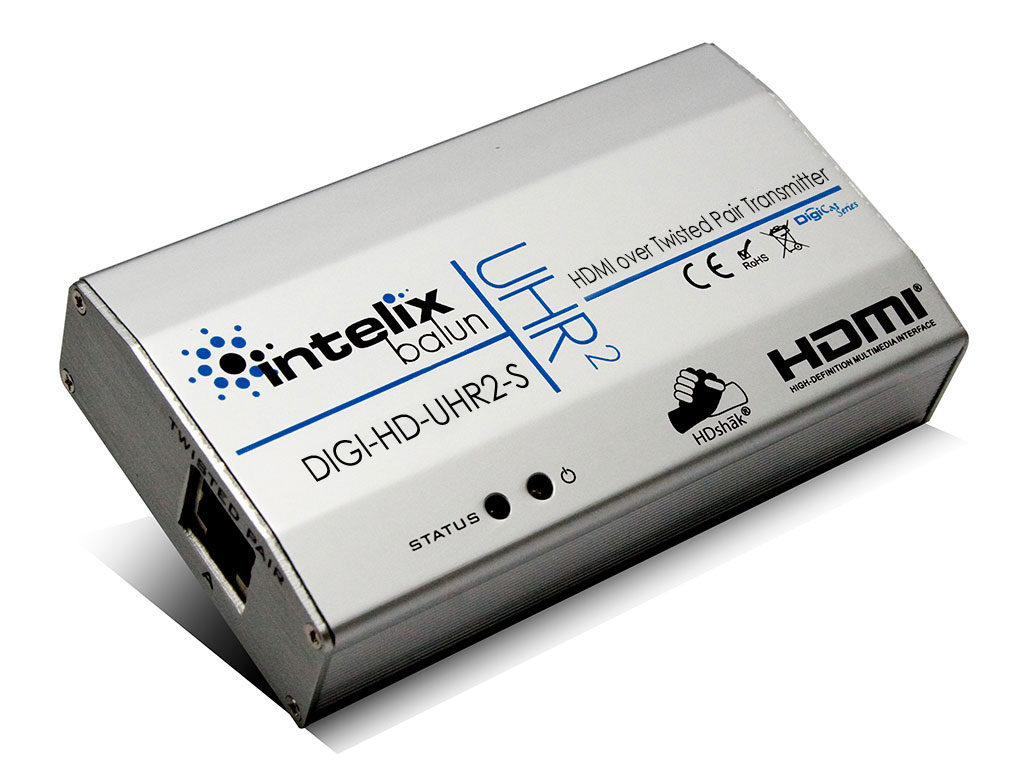

Intelix DIGI-HD-UHR2-S HDMI Balun - HDMI over Twisted-Pair Extender System Transmitter
The Intelix DIGI-HD-UHR2-S HDMI Balun is a professional-grade extender transmitter, capable of transmitting HDMI up to 300 feet over a single twisted pair cable such as Cat 5 or Cat 6.
Ideal for residential A/V, commercial A/V, and digital signage applications, the
DIGI-HD-UHR2-S transmits 1080p video up to 150 feet, 720p and 1080i video up to 300 feet, and 480i and 480p video up to 300 feet.
Intelix's built-in HDshāk® technology provides dynamic HDMI, EDID/DDC and HDCP mode selection, guaranteeing performance and image quality. This trademarked HDshāk® processing allows the DIGI-HD-UHR2-S delivers the highest level of EDID and DDC negotiation, ensuring proper source and destination HDCP handshaking even over extended distances of twisted pair cabling.
In addition, the DIGI-HD-UHR2-S features electrostatic discharge (ESD) protection circuitry which safeguards the HDMI circuit against static electricity and other destructive stray voltage. The unit is HDMI 1.3b and HDCP compliant. This transmitter is intended for use with either the DIGI-HD-UHR2-R receiver or the DIGI-HD-UHR2-WP-R wallplate style receiver (add to cart below). Also available as a part of the DIGI-HD-UHR2 Extender Kit.
With its enclosed design, the Intelix DIGI-HD-UHR2-S may be used stand-alone, or may also be rack-mounted by using an optional rack-mount kit. Connection to HDMI is via standard Type A connectors. HDMI cables are not included, but we do have them available here. Connection to the twisted-pair cables is via RJ45.
As with virtually all systems that are based upon twisted-pair cable technology, the Intelix HDMI Twisted-pair Matrix Distribution System will work with virtually any twisted-pair cables, including Cat-5e and Cat-6, but range and bandwidth is directly related to both distance and cable quality, so to get the highest resolutions at the greatest distances, you will want high-quality, low-skew cables. If you want the very best pre-terminated cables, please consider our VideoTwist cables.
Like most Intelix products, the DIGI-HD-UHR2-S comes with a two year limited warranty from the manufacturer.
Intelix's Description
DIGI-HD-UHR2-S Balun
Tired of problem installations? Rethink HDMI with the Intelix DIGI-HD-UHR2.
The Intelix DIGI-HD-UHR2-S transmits HDMI up to 300' over a single twisted pair cable. Built-in HDshāk® processing provides dynamic HDMI, EDID/DDC and HDCP mode selection, guaranteeing performance and image quality. The DIGI-HD-UHR2-S features electrostatic discharge (ESD) protection circuitry which safeguards the HDMI circuit against static electricity and other destructive stray voltage.
Features
- 1080p HDMI over a single twisted pair cable
- Built-in ESD surge protection
- Remote EDID storage
HDshāk Processing
Intelix HDshāk technology delivers the highest level of EDID negotiation, ensuring proper source & destination handshaking over twisted pair every time.
[please click here for details]
DIGI-HD-UHR2-S Feature Focus
HDMI 1.3 compliant. Forget HDMI handshake issues, loss of audio, and video flickers. The DIGI-HD-UHR2-S features an HDMI 1.3b chipset, providing the most stable and uniform platform for HDMI sources and destinations. Plus, Deep Color and Lossless Digital Audio are supported.
Shelf-top or rack-mountable. [Use DIN-RACK-KIT-F for rack mounting]
In this drawing the transmitter balun can be seen in greater detail.
This is the spec sheet, in PDF format.
Here is the Installation Manual, in PDF format.
