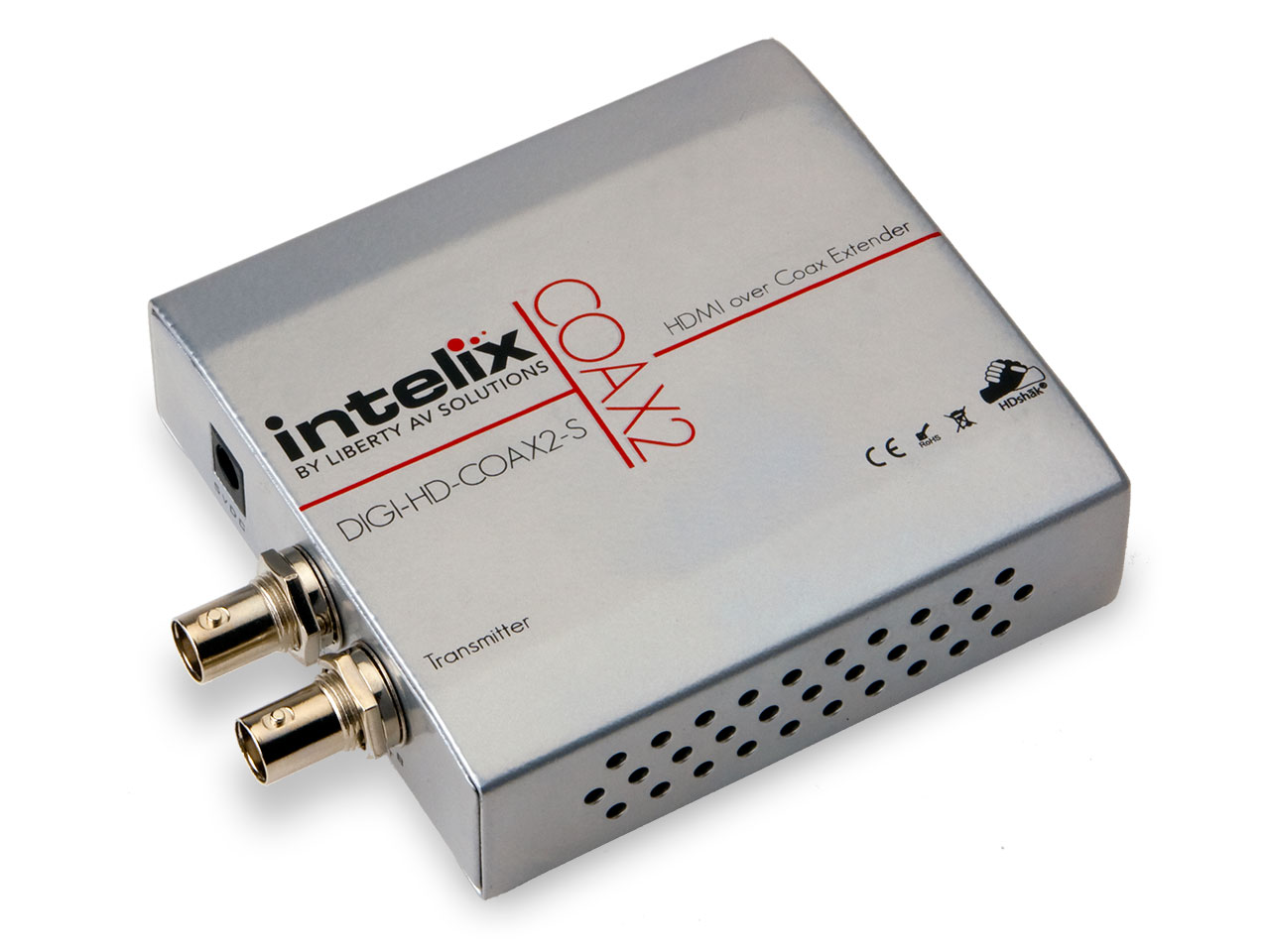

The Intelix DIGI-HD-COAX2-S is a Sender/Transmitter unit intended for expansion of Intelix HDMI over coax distribution systems.
These transmitters work at distances as great as 650 feet (depending upon resolution and coaxial cable and each system can accommodate up to 14 receivers.
For more information, please see the DIGI-HD-COAX2 system page.
Part of the following manufacturer's description includes DIGI-HD-COAX2-S features and specs, but please notice that it also describes the DIGI-HD-COAX2-R receiver unit (available separately).
Like most Intelix products, the DIGI-HD-COAX2-S comes with a two year limited warranty from the manufacturer.
Designed for demanding commercial and residential audio-visual applications, the DIGI-HD-COAX2 employs Intelix’s industry-leading digital processing to transmit high-definition HDMI signals over a single coaxial cable. The unit transmits 1080p up to 300 feet, 1080i and 720p up to 650 feet.
Plus, built-in amplified signal splitting provides seamless daisy-chain distribution to ten remote destinations.
Finally, HDMI meets Install.
Extend HDMI over a single coaxial cable. Forget expensive HDMI cables and the distance limitations of twisted pair, the DIGI-HD-COAX transmits HDMI over a single RG6 or RG59 cable.
Support two simultaneous displays. The DIGI-HD-COAX2-S transmitter features dual outputs, allowing two distribution paths to operate simultaneously.
Daisy-chain multiple remote displays. The DIGI-HD-COAX2-R receiver features a looping output, allowing the multiple receivers to be connected to a single transmitter.
BNC connectors. The DIGI-HD-COAX2 features sturdy, professional-grade BNC connectors.
HDMI 1.3 and HDCP compliant. The DIGI-HD-COAX is HDMI 1.3 and HDCP compliant.
Built Intelix tough. The DIGI-HD-COAX2 features a durable metal chassis.
This photo shows the the input and output panels of the DIGI-HD-COAX2-S sender unit in greater detail.
In this connection example, HDMI is transmitted to two separate runs of
coaxial cable. Each run supports up to seven receivers, for a total of 14 receivers per transmitter.
This is the DIGI-HD-COAX2 spec sheet, in PDF format.
Here is the Installation Manual in PDF format.
This guide illustrates the differences between the DIGI-HD-COAX2 and the original DIGI-HD-COAX, in PDF format.
Here is the product brochure for the original DIGI-HD-COAX, in PDF format.
Please notice that the cosmetic appearance and some of the specs have changed with the new model, but this brochure does a nice job of illustrating typical installation scenarios, so we have included it here for your reference.
