Gefen EXT-HDMI-642-B 6x2 HDMI Switcher / Distribution Amplifier

with discrete IR remote control - Open Box Unit

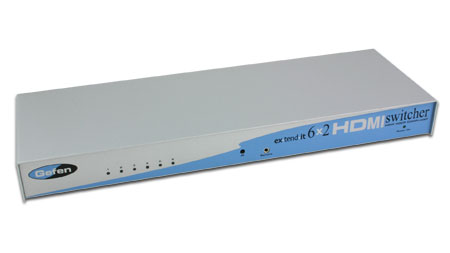

  Gefen EXT-HDMI-642 - 6x2 HDMI Switcher / Distribution Amplifier with IR Remote Control

Gefen EXT-HDMI-642 - 6x2 HDMI Switcher / Distribution Amplifier with IR Remote Control

This Gefen EXT-HDMI-642 6x2 HDMI switcher provides electronic switching and distribution so that six HDMI sources can be connected to two monitors.  You can easily switch two HDTV displays between six HDMI sources.  It is the perfect solution for connecting DVD players, satellite receivers, HDTV set top boxes, or any HDMI-enabled equipment to a single input.

It comes with an IR remote control, and it has discrete codes so that it can easily be controlled by universal remote controls/macros.

The switcher works equally well with HDMI or DVI video, so any mix of HDMI and DVI equipment is possible.  The package includes HDMI/HDMI cables, but we also have HDMI/DVI conversion cables available at no additional cost - just specify your choice when you check out.  If you do not specify, we will ship all cables with HDMI/HDMI terminations.

Warranty

This unit has been opened and as such is being sold as an "Open Box Unit".

Cable Solutions backs the EXT-HDMI-642-B with a one year limited warranty against defects in materials and workmanship, just as we would a new unit.  This warranty is separate from any warranty that may be provided by the manufacturer, so you must contact Cable Solutions for all warranty-related issues.

Gefen's description

Connect and Access One of Multiple Sources from the Same Display(s)

6 Sources + 2 Displays = Greater Integration Options

Gefen’s 6x2 HDMI Switcher is a small metallic unit equipped with six HDMI inputs and two HDMI outputs. Six inputs accommodate the simultaneous connection of up to six high definition video sources, such as satellite systems and HD DVD players. Two outputs send the high definition audio/video signals to two high definition displays or one display and one audio receiver. Digital audio and high definition video for each source is accessed immediately when the unit “switches” to it. You control the switching by using the IR remote that comes with the unit.

This HDMI product supports BOTH Audio and Video signals.

Fully HDCP Compliant

HDCP (high bandwidth digital content protection) is a standard encoded into the video signal to prevent it from being pirated. If a source device is HDCP coded and is connected to a display or projector without the proper decoding mechanism, the picture is relegated to “snow” or in some cases, very low (480P) resolutions of the images. In order to see high resolution digital video with HDCP compliance, both the source, the display and anything in between must be equipped with HDMI connections that can enable HDCP decoding, such as the 6x2 HDMI Switcher.

How it Works

You simply connect all your sources to the Switcher’s inputs. You have a choice of connecting either two displays or a display and a receiver to the Switcher’s outputs. Once the sources, the Switcher and the display(s) are powered and connected, you simply select which source you want to view using the IR remote.

Package Includes:
  • The 6x2 HDMI Switcher
  • RMT-6IR Remote control
  • Rack Ears
  • Six 6-foot HDMI cables
  • 24VDC power supply
  • User's Manual
Features:
  • Saves money on hardware—no need to purchase multiple high definition displays.
  • Saves space—one high definition display supports multiple sources.
  • Saves time—no need to disconnect and reconnect sources—everything is accessible.
  • Maintains high resolution video— sharp HDTV resolutions up to 1080P are easily achieved.
  • No loss of quality—the integrity of the high definition signal is preserved using high caliber cables that ensure the signal is maintained.
  • Operational flexibility—you can switch at the source, with the IR remote control or your own universal remote.
  • Compatible with all HDMI-equipped, HDCP-enabled HDTV devices.
  • Easy to install and simple to operate.
Specifications:
  • Video Amplifier Bandwidth: 1.65 GHz
  • Single Link Range:1080P/1920x1200
  • Vertical Frequency Range: 60 Hz
  • HDMI Input/Output Connector: Type A 19-pin
  • Digital Audio Output: TOSlink
  • Remote Control Port: RS232, Mini-Stereo
  • Power Consumption:15 Watts (max.)
  • Power Supply 24VDC
  • Dimensions:17”W x 1.75”H x 5.875”D
  • Shipping Weight: 8 lbs.
  • HDCP Compliant


HDMI, HDCP & HDMI Defined

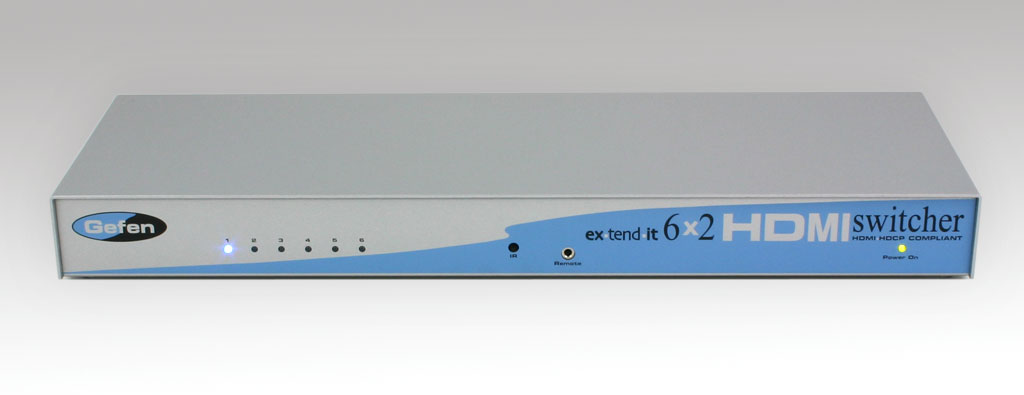

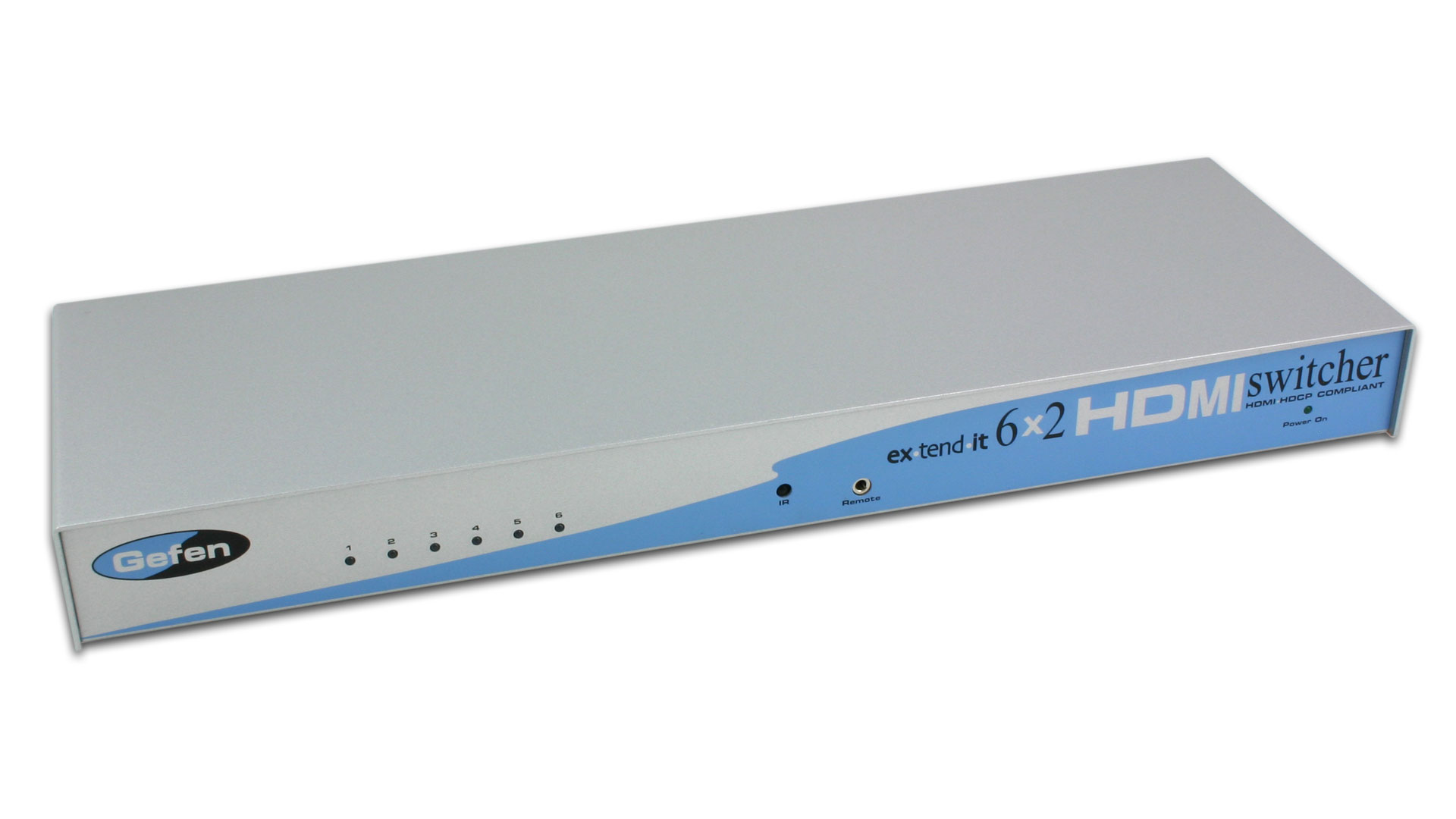

  Gefen EXT-HDMI-642 - 6x2 HDMI Switcher / Distribution Amplifier with IR Remote Control - Front

Here is an overall view of the switcher and the front panel. From left to right, you can see status LEDs for inputs 1 through 6, the IR window, a jack for Gefen's remote IR extender, and a power status LED.

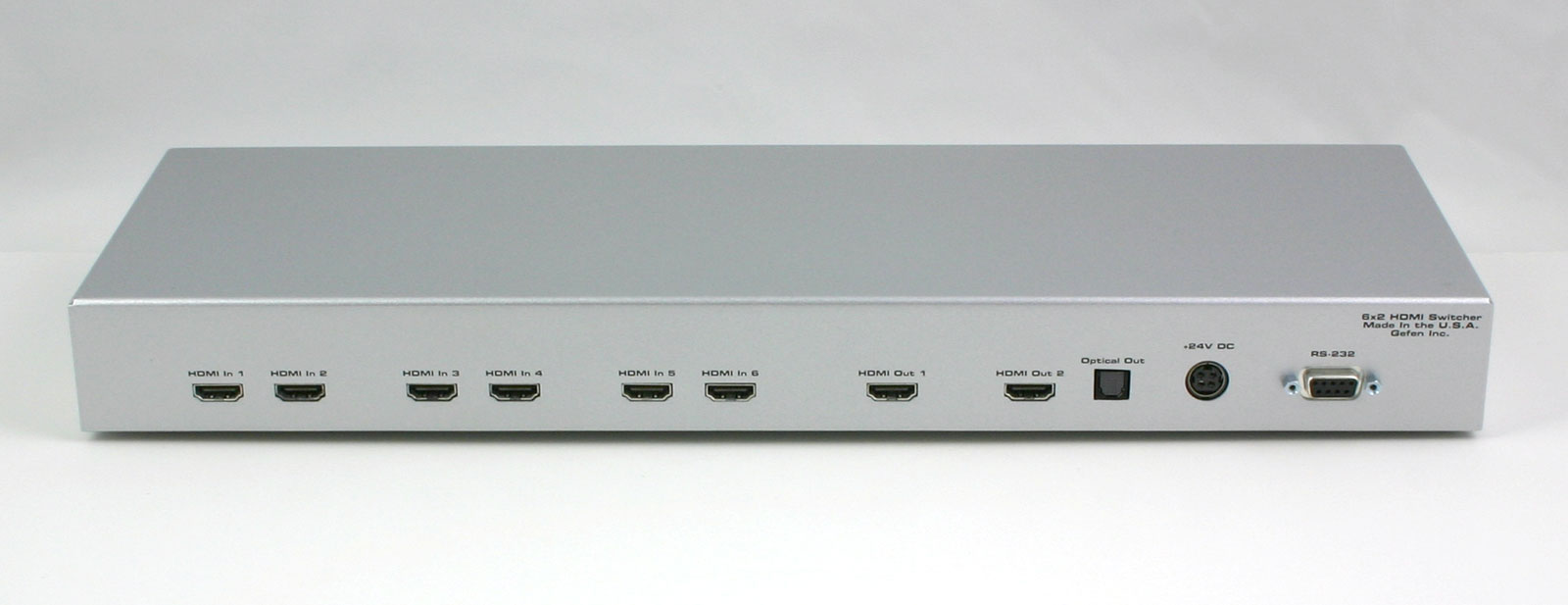

  Gefen EXT-HDMI-642 - 6x2 HDMI Switcher / Distribution Amplifier with IR Remote Control - back panel

Here is a good look at the back panel of the device. From left to right are HDMI inputs 1 through 6, HDMI output 1, HDMI output 2, optical digital audio output, power connector, and an RS232 controller port.

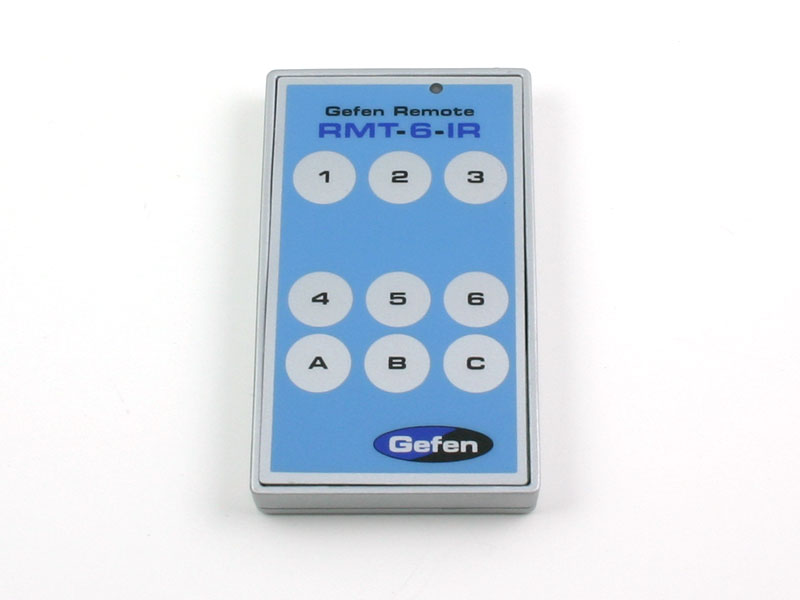

RMT-6-IR Remote Control

Here is the included RMT-6-IR infrared remote control.  Notice that this is Gefen's updated remote, designed to eliminate IR conflicts.

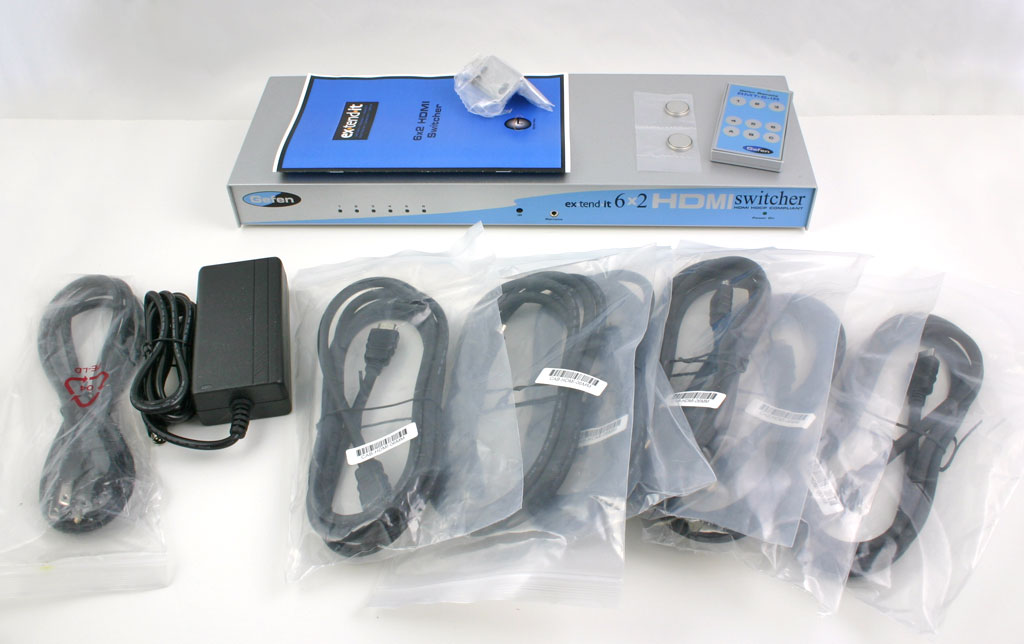

  Gefen EXT-HDMI-642 - 6x2 HDMI Switcher / Distribution Amplifier with IR Remote Control - package contents

Included in the package is the switcher unit itself, rack-mount brackets, owners manual, remote control (with extra battery), six 2 meter (6.6 foot) HDMI cables, power supply, and power cord. If you would like to substitute one or more DVI/HDMI conversion cables, please include a note with your payment.

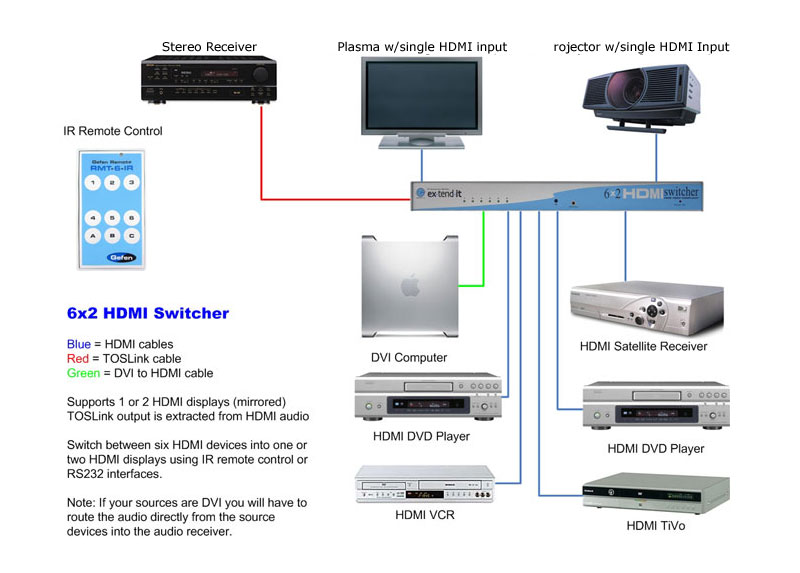

  Gefen EXT-HDMI-642 - 6x2 HDMI Switcher / Distribution Amplifier with IR Remote Control - connection example

Here is a connection example.

Purchase Information
Product Description SKU MSRP Pricing Quantity
Gefen 6x2 HDMI Switcher / Distribution Amplifier - Open-Box Unit EXT-HDMI-642-B $899.00 DISCONTINUED DISCONTINUED
SSL Secure Site Logo This item has been discontinued.  Please click here to see some excellent alternatives.
