Gefen EXT-HD-142A-B 1x2 HD Splitter
with Separate Digital
Audio Connections
Connect two displays to a single source - Open-Box Unit

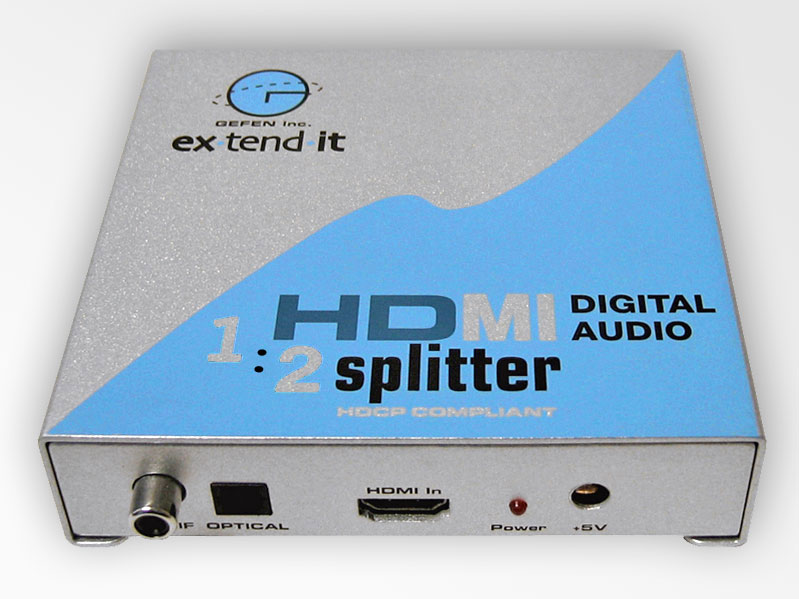

Gefen EXT-HD-142A 1x2 HD Splitter with Separate Digital Audio Connections
This Gefen EXT-HD-142A, 1x2 HD / Digital Audio Splitter distributes a single HD video signal to two displays. This high quality device can be used to send HD video and separate digital audio signals from DVD players, Blu-Ray players, satellite receivers, cable boxes, and other HD-enabled sources to multiple HD-enabled devices, such as LCD, DLP, LCoS, plasma and CRT monitors and projectors.
Important Note: Since the digital audio signal is separate from the video signal, this splitter works equally well with either DVI or HDMI digital video, so if you have a mix of DVI and HDMI equipment, that is not a problem! The ports on the splitter are HDMI style, so conversion cables or adapters are used to connect equipment with DVI connectors.
Warranty
This unit has been opened and as such is being sold as an "Open Box Unit".
Cable Solutions backs the EXT-HD-142A-B with a one year limited warranty against defects in materials and workmanship, just as we would a new unit. This warranty is separate from any warranty that may be provided by the manufacturer, so you must contact Cable Solutions for all warranty-related issues.
Gefen's description
The ex•tend•it HDMI Digital Audio Splitter allows set-top boxes, DVD players, D-VHS players and other HDTV devices with an HDMI output to be connected to two or more HDTV displays at the same time. It distributes both digital audio and high definition video to both displays.
The HDMI Digital Audio Splitter is a distribution hub that sends the same video output to two or more HDTV displays. It is a flexible solution that can be stacked to accommodate multiple displays. When two or more HDMI Splitters are connected together, they can be used to create a larger distribution.
How it works
The HDMI Digital Audio Splitter is connected using a HDMI cable from the HDMI source to the HDMI Splitter input. There are two HDMI outputs. HDMI output 1 is the primary connection and is used for the main display. HDMI output 2 follows the main display.
The HDMI splitter is HDCP compliant.
Package Includes:
The HDMI Digital Audio Splitter
One 5v Power Supply
One 6ft HDMI cable
Features:
- Splits the HDTV HDMI signal to two or more HDTV displays
- Connects two or more HDTV displays at the same time to the same video source
- Uses HDMI cables to connect to the input and splitter output
- Allows simultaneous display at local and remote locations
- Supports 720I, 720P and 1080P resolutions
- Supports HDCP compliant devices
- Supports DDWG standard for HDMI compliant monitors
- Installs in seconds
Specifications:
- Video Amplifier Bandwidth:1.65 GHz
- Single Link Range:1080P/1920 x 1200
- Vertical Frequency Range:60 Hz
- HDMI Input/Output Connector: Type HDMI
- Power Consumption:15 Watts (max.)
- Power Supply 5VDC
- Dimensions:4”W x 1”H x 4”D
- Shipping Weight:4 lbs.

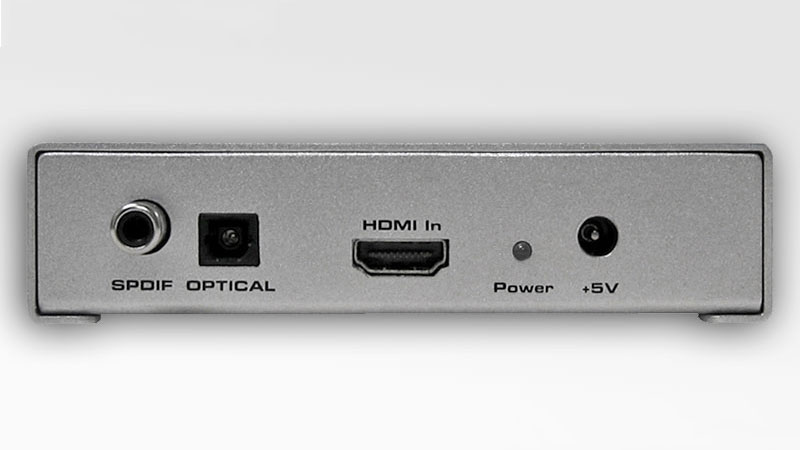

In this close-up of the front panel, you can see (from left to right), coaxial digital audio input, optical digital audio input, the HDMI-style input connector, LED power status light, and the power connector.
From left to right, coaxial digital audio output 1, optical digital audio output 1, HDMI video output 1, HDMI video output 2, coaxial digital audio output 2, and optical digital audio output 2 are shown here, on the back panel of the device.
Here is a connection example.
