DVDO HD-15 to 5-BNC VGA Breakout Cable

Available in 6 and 20 foot lengths

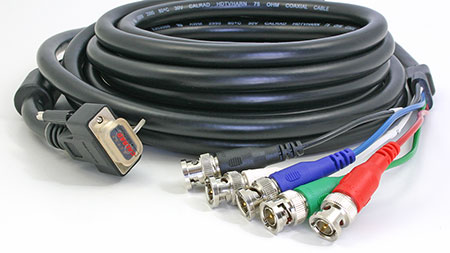

DVDO HD15 to 5-BNC RGBHV Video Breakout Cable - DVDO HD15 to 5-BNC RGBHV Video Breakout Cable - shown here in the 20 foot length

DVDO HD15 to 5-BNC RGBHV Video Breakout Cable - shown here in the 20 foot length

DVDO breakout cables are great for use with iScan processors, or anywhere that a good quality VGA-male / 5-BNC RGBHV connection is needed.

VGA-male is also known as HD-15 male and component video may also be referred to as Y/Pb/Pr.

This high performance cable can be used to interconnect equipment with VGA-style HD-15 connectors or to "break out" VGA connections to equipment with five discrete channel connections.  For example, this VGA-male/BNC-male cable would be ideal for connecting a video processor to a HDTV monitor with R/G/B/H/V inputs via BNC connectors.

This breakout cable also comes with RCA adapters for those who have RCA connectors instead of BNC.

Pricing for these manufactured cables is lower than our custom-built breakout cables, so if you can use this exact length and configuration, you can save some money.

DVDO's Description

DVDO's custom-designed Precision

Precision Analog HD15 VGA to 5-BNC Video Cable with BNC to RCA Connector Adaptor Kit

  •  75 ohm coaxial cable construction with strain-relief overmolds
  • High quality gold-plated cast RCA connectors with color-coded barrel grips
  • Integrated ferrite on HD15 cable end for enhanced system electromagnetic compatibility

This cable is typically used as the video output interconnect between iScan™ products and displays requiring RGB with discrete H & V Sync signal lines. It can also be used for any display requiring either RGB (with composite sync on a separate signal line), RGB with sync embedded on the ‘G’ signal line, or Component (YPbPr) video. This cable is 20 feet (6.1 meters) in length, ideal for longer runs to projectors and plasma displays. It comes as a kit with BNC to RCA adaptors to accommodate displays with RCA connectors.

DVDO Breakout Cable

This breakout cable delivers a pure, high-resolution video signal for sharp, natural-looking images.  Shown here in the 20 foot length.

DVDO Breakout Cable, BNC connectors

Here is a closer look at the BNC connectors.

DVDO Breakout Cable, VGA connector

Here is a closer look at the VGA connectors.

DVDO Breakout Cable

Shown here is a packaged 20 foot cable.

Canare L-4CFB Component Video Cable Set, black

Cable Solutions is a DVDO Authorized Reseller.

Purchase Information
Product Description SKU MSRP Your Price Quantity
DVDO HD-15 to 5-BNC Breakout Cable - 6 foot 11-2012-01 $49.95 $45.00
DVDO HD-15 to 5-BNC Breakout Cable - 20 foot 11-2004-01 $79.00 $64.00
