Canare F-09 Slimline RCA Connectors
Shrouded Outer Contact Sleeve for Improved EM Shielding

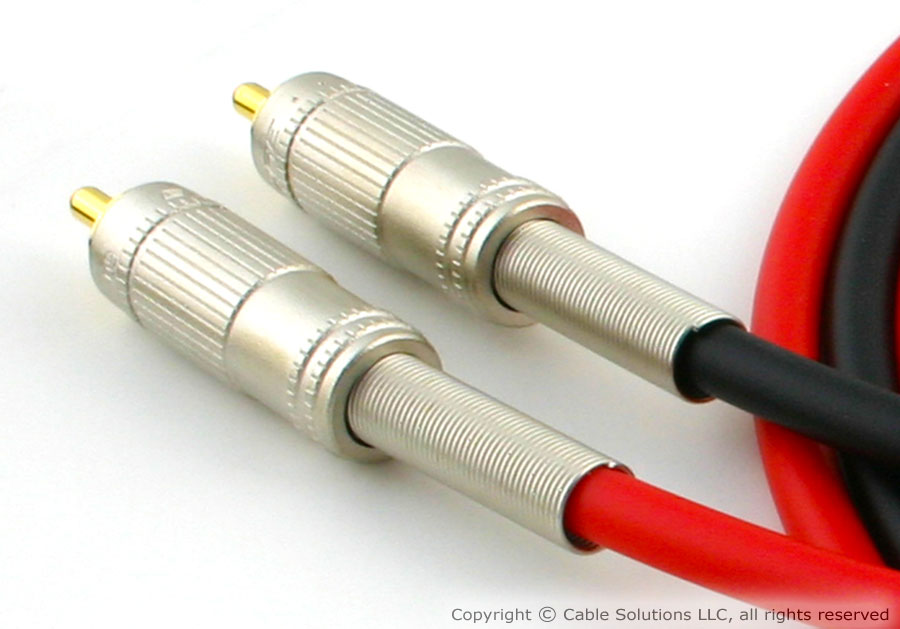

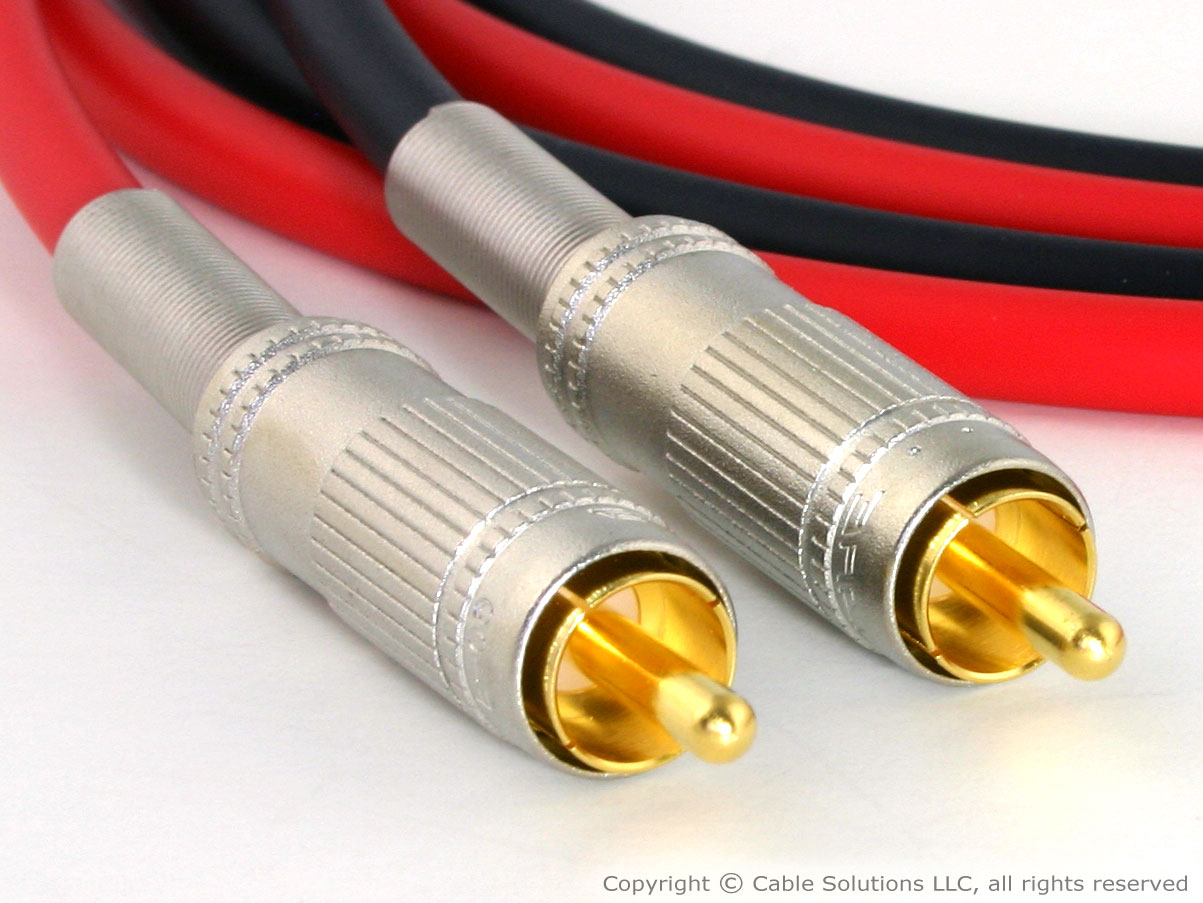

Canare F-09 Slimline RCA Connectors, shown here installed on Canare GS-6 cable (cable not included)
Canare F-09 Slimline connectors feature robust all-metal construction with nickel-plated "bell-brass" handles. All contact points are gold-plated for reliable conceptions, easy soldering, and long life. The inner portion of the connector has a 360 degree crimp ring to ensure long service life while a polyacetal dielectric material offers great mechanical and electrical performance.
The spring-type strain-relief accommodates large diameter cables up to 6mm (0.236"). The connector body can accommodate cable ODs up to 6.3mm (0.248") without the strain-relief. The overall diameter of the "Slimline" handle is just a touch over 12mm (0.472").
We are offering these connectors here in pairs (2 connectors) which would be enough to build a single interconnect cable. A quantity of (2) would be two pairs (4 connectors), which would be enough to build a pair of stereo interconnect cables.
Please notice that although some of our photos are showing these connectors installed on Canare GS-6 cables, no cable is included - this listing is for bare connectors, intended for DIY applications. If you prefer finished cable assemblies, please click here.
Canare's F-09 RCA connectors can accommodate large cables - up to 6mm with the spring-type strain-relief, or 6.3mm without the strain-relief. Shown here installed on 5.8mm cable (cable not included)
This close-up shows the Canare logo engraved in the nickel-plated F-09 body.
Here are some additional details about Canare F-Series connectors. (this item included F-09 only)
