Audio Authority 1360

HD Component to Composite / S-Video Downconverter

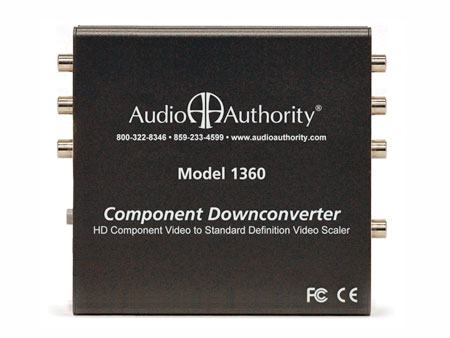

Audio Authority 1360 Component Downconverter

Audio Authority 1360 HD Component Downconverter

Need to integrate a legacy television into a HD distribution system? This unit simplifies the conversion of component video to either composite or s-video, with a pass-through. Signals ranging from 480p to 1080p are scaled to an output of 480i.

With a smaller form-factor and a lower price, the 1360 HD Component Down-converter is an ideal choice for applications that do not require that advanced features of the 1361.

Like most Audio Authority products, the 1360 comes with a one year limited warranty from the manufacturer.

Audio Authority's Description

HD Component Downconverter

Model 1360

  • Converts component video signals to composite or s-video
  • Accepts signals from 480p to 1080p
  • Scales output to 480i
  • Image size adjustment

Commonly used for integrating legacy televisions into HD distribution systems, or feeding an RF modulator, the 1360 provides a lower price point than the 1361 for specialized applications that don't require the 1361's wider range of functionality.

Input resolutions supported: 1080p, 1080i, 720p, 576p, 480p

Dimensions: 1 x 4 x 4 inches

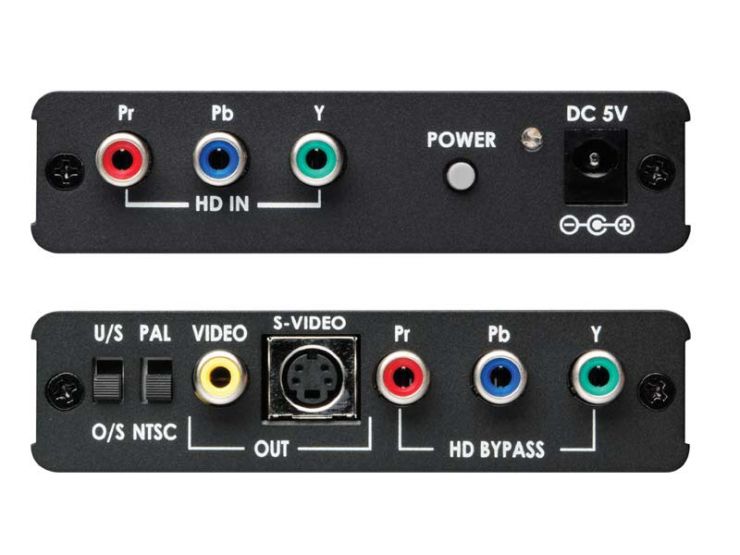

Audio Authority 1360 side panels

A view of each side of the 1360

Audio Authority 1360 - 1361 Comparision Chart

A quick glance at a comparison between the 1360 and the 1361 video down-converters

Audio Authority 1360 Focus Sheet

The focus sheet, in PDF format, explains some of the differences between the 1360 and the 1361.

Audio Authority 1360 User Manual

Here is the user manual in PDF format.

Purchase Information
Product Description SKU MSRP Your Price Quantity
HD Component to Composite or S-Video Downconverter 1360 $349.00 $314.10
