Audio Authority 1176BK
6-port Cat-5 Matrix Router Expander (black)

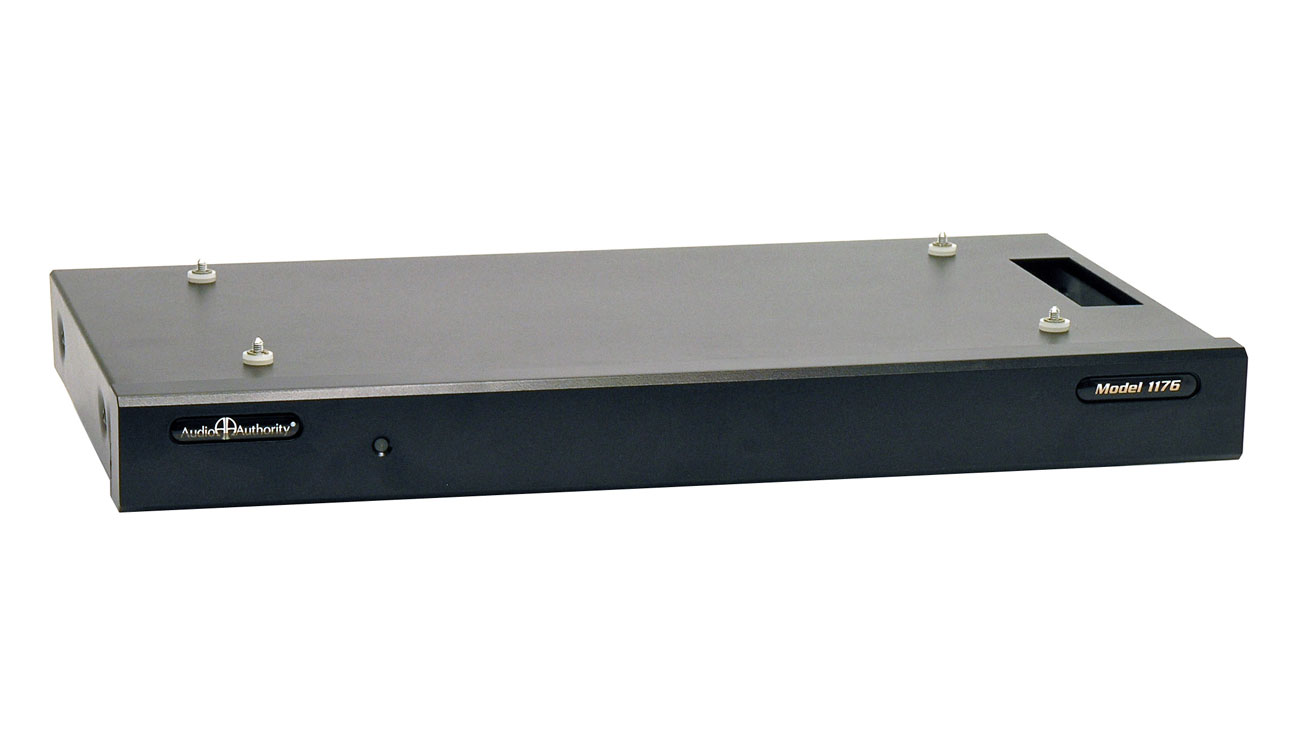

Audio Authority 1176BK 6-port Cat-5 Matrix Router Expander (black) for AVAtrix Systems
Use the Audio Authority model 1176BK CAT 5 Matrix Router Expander to add up to six Cat-5 A/V zone receivers to AVAtrix models AVM-562, AVX-561-NR and AVX-661-NR Whole-House Routing Systems.
Multiple 1176BK units can be used to expand system capacity to accommodate up to 36 A/V zone receivers!
Designed to stack in an elegant manner with other AVAtrix System components, the 1176BK driver system can transmit video and audio up to 1000 feet without any frequency roll-off or signal attenuation, so colors and details are faithfully preserved for your maximum enjoyment. This "BK" model has a black finish.
Like most Audio Authority products, the Model 1176BK comes with a one year limited warranty from the manufacturer.
Audio Authority's Description
6-port Cat-5 Matrix Router Expander (black) for AVAtrix
Model 1176BK
- Adds six Cat 5e/6 outputs to an AVAtrix head-end
- Dual Cat 5e/6 outputs
- Connects via AVAtrix internal bus cable
- Supports Cat 5e/6 cable runs up to 1000 feet
- Made in the USA
Overview
Each 1176BK expander increases the output capacity of an AVM-562 system by six Cat 5 outputs. A single system can include up to 36 wallplate/receiver outputs. The 1176BK connects to the AVM-562 via an internal ribbon bus cable. The AVM-562 factory-installed bus cable (Model 802-567) has two open ports that can be used for 1176BK or 1172BK Expanders. If more than two Expanders are required, use Model AVM-562E, which includes a longer bus cable with five open ports.
- Adds 6 dual Cat 5 outputs to an AVAtrix™ Cat 5 Matrix
- Up to five 1176BK expanders can be added to an AVAtrix™ system
- Supports video up to 1080p
- Extends video and audio up to 1,000 feet over Cat 5e/6 cable
- Rack mountable with included 1U rack-mount ears.
- Manufactured in the USA
Features
Key Features
- Distributes video and audio over two Cat 5e/6 cables
- Balanced line infrastructure for maximum picture quality
- Simple addressing via back panel knob
- Compatible with three Cat 5 Receiver options to match any installation scenario
Inputs/Outputs
- Input via proprietary bus cable
- Outputs: 6 Dual Cat 5 jacks (RJ-45)
- Requires Audio Authority Cat 5 Receivers for operation
Product Dimensions
- 1.75 x 16.675 x 9 (H-W-D, inches)
Specifications
Video Parameters
- Video Formats: 480i/p, 576i/p, 720p, 1080i/p
- Input/Output Impedance: 75 ohms
- Input Ground Isolation: No
- Gain: 1
- Gain Accuracy: 2%
- 3dB Bandwidth: 150MHz
- Input Coupling: AC
- S/N Ratio: 62dB
- Max Gain/Equalization: 1.00 gain
Audio Parameters
- Input Impedance: 75 ohms/50K ohms
- Min Load Impedance: 75 ohms/10K ohms
- Multi-channel Digital: Yes
- Frequency Response: 10-50KHz
- S/N Ratio: 75dB
- THD+Noise: 0.03%
- Crosstalk: 75dB
Miscellaneous
- Connector Types (Input): Proprietary Bus Cable
- Connector Types (Output): Dual RJ-45
- Dimensions: 1.75 x 16.675 x 9- add 0.5 to height to include feet
- Product Weight: TBD
- Shipping Weight: TBD
- Agency Approvals: FCC, CE, C-tick
- DC Input Connector: 5.5 x 2.1mm
- DC Input Voltage/Polarity: 18V/Center Positive
- Max DC Input Current: 1.4A (400mA with no Cat 5 Receivers)
- Heat Output: 25 BTU/hr
In the Box
- Power Supply: Model 803-170
- Rack Mount Ears: Model 1191A
- User Manual
Downloads
Documents
- User Manual: 1176BK (PDF file)

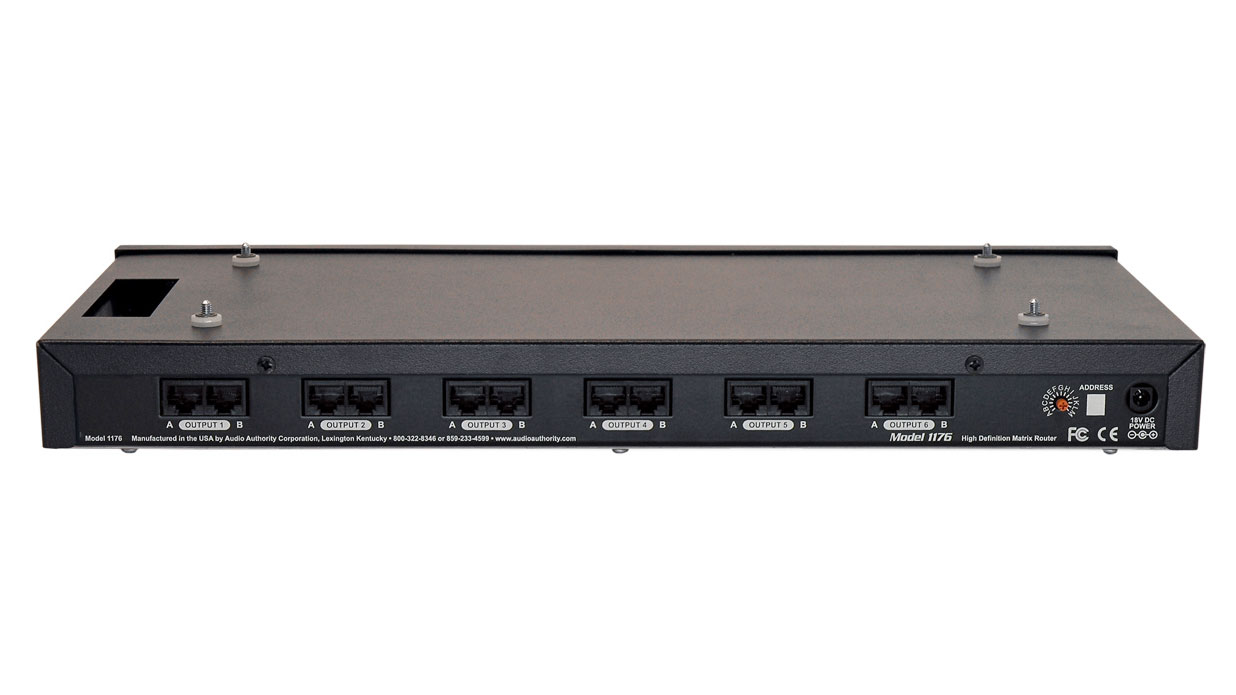

Here is a good look at the back panel of the unit.
Here is a good look at the back panel of the unit. Here, the Model 1176BK is shown stacked with an AVX-562 AVAtrix System (AVX-562 not included).

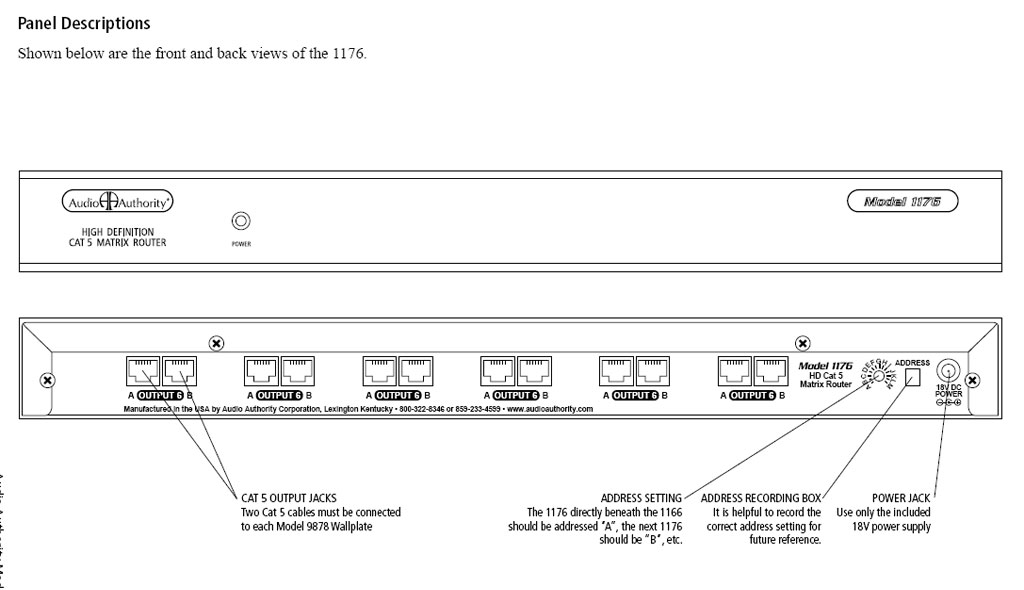

This drawing shows the model 1176 in great detail.
Click here to download the 1176BK Manual in PDF format.
