Use the Intelix RF-F Broadband Video Balun to send RF signals Cat 5 type cable. Perfect for cable
TV and Internet service that runs over coaxial cable.
This professional-grade device uses a
high-performance passive design to deliver
high-quality RF signals
up to 100 meters (330 feet) over a single CAT 5 type cable. The RF-F is ideal for corporate A/V, schools,
universities, as well as for discriminating
individuals - just about any situation that involves
a low-level RF interface.
These units are sold singly, although two are required for a complete hook-up.
Notice that Intelix Baluns are designed to work with
standard unshielded CAT5, CAT6, or CAT7 cable - shielded
cable is not required!
Intelix's Description
|
The Intelix RF-F balun is ideal for transmitting cable TV channels 2 to 150 up to 330 feet over
structured cabling, such as Cat 5.
The Intelix RF-F balun passively transmits broadband (RF) video over unshielded twisted
pair cabling, such as Cat 5 or Cat 5e. Used in pairs, the RF-f transmits video up to 330
feet, providing a low-cost versatile cabling solution which uses a building’s existing
structured cabling system.
The Intelix RF-F is ideal for private RF networks, guestroom TV and internet services,
apartments and condominiums, schools and universities, and corporate audio-visual
environments. The RF-F is designed for point-to-point connections.
When signal quality matters, choose Intelix.
| Technical Specifications |
| Maximum Distance*
|
330 feet
|
| Bandwidth (3 dB) |
5 MHz to 900 MHz
|
| Supported Video Channels
|
CATV channels 2-150
VHF channels 2-13
FM broadcast band |
| Insertion Loss |
<9 dB: 5-10 MHz
<3 dB: 10-900 MHz
|
| Return Loss |
>10 dB: 15-370 MHz
>7 dB: 370-770 MHz
>10 dB: 770-900 MHz
|
| Common Mode Rejection
|
-20 dB or higher at 5-900 MHz
|
|
Connectors
|
One (1) male F to one (1) RJ45
|
| Recommended
Cable |
Cat 5, Cat 5e, Cat 6 |
| Connectors |
One (1) male F to one (1) RJ45
|
| RJ45 Pinout
|
7 & 8, pair 4
|
| Enclosure |
Black Plastic
|
Unshielded Twisted Pair Cable Specifications
(24 gauge or lower solid copper) |
Maximum capacitance: 20 pF/foot
Impedance: 100 ohms @ 1 MHz
Attenuation: 6.6 dB/1000 ft. @ 1 MHz
Cat 5, Cat 5e, Cat 6, Cat 7 compatible
|
| Temperature |
Operating: 32 to 131 F (0 to 55 C)
Storage: -4 to 185 F (-20 to 85 C)
Humidity: up to 95%
|
| Dimensions |
2.5” x 1.0” diameter
|
| Weight |
0.07 lbs (1.05 oz) |
| Ordering
Information |
RF-F: single RF-F balun in bulk packaging
|
|
Regulatory
|
FCC, CE
|
| Warranty |
Two years |
|
|
*Distances and picture quality may be
affected by cable grade, cable quality, source
and destination equipment, RF and electrical
interference, and cable patches. Intelix
specifications are based on straight-through
cabling with standard-grade Cat 5.
Design with Intelix and Design with Intelligence
|
Why Cable Solutions?
No one works harder than we do to get your order shipped out to you fast! On business days, orders that are funded by noon will ship the same day. Orders funded on weekends or holidays will ship the next business day.
Cable Solutions is an Intelix Authorized Reseller, so our customers get the full benefit of Intelix's factory-direct support and warranty.
Customer service is our first priority. We do
our best to help you find the best solutions for your
particular application. We're enthusiasts too, so
we know what it's like to wait for cables and
accessories that are needed to hook up new gear.
We also know how important it is to be able to get a
response when you need help, so you'll often find us
working long hours in an effort to get you the answers
that you need.
Design excellence, high quality materials, meticulous
workmanship, and superior service...put it all together
and you get a superior product. Don't get stuck
with bad advice, poor service, slow shipment or an
inferior product. If you want the best, here it
is.
Miscellaneous
Please click here to read
our policies and disclaimer. Thanks for reading
all of this!
|
Click on any of the
pictures below for a closer view!

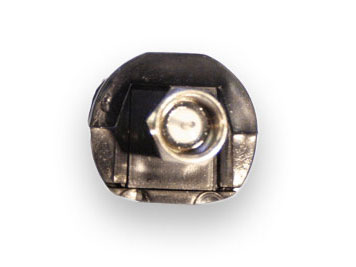

Intelix RF-F Broadband Video Balun
Example System: A cable signal is routed up to 330 feet over Cat 5 cabling
to a television using two RF-F baluns. A user then switches through cable channels 1-150.
Here are the technical specifications - click to download in PDF format.
Here is the Installation Manual in
PDF format.
