The Intelix DIGI-VGA-F makes it easy to send
skew-free high-resolution video and stereo audio to as
many as two
remote monitors, while still providing for local
monitor and audio connections. The DIGI-VGA-F
system transmits video at resolutions up to 1920 x 1200, as
well as stereo audio, over a single standard Cat 5-style
cable. This professional-grade device uses a
high-performance active design to achieve pristine
video, and hi-fi stereo audio.
The transmitter unit may be powered
by the host computer, via USB cable, or by using the
included external power supply. The receive unit
is powered by a second (included) external power supply.
Kit includes both sender and receiver units.
Like most Intelix products, the DIGI-VGA-F comes with a
two year limited warranty from the
manufacturer.
Intelix's Description
The Intelix DIGI-VGA-F balun set transmits
high-definition VGA video and high-fidelity analog audio
extended distances over inexpensive structured pair
cabling, such as Cat 5 or Cat 6. The DIGI-VGA-F balun
set includes a DIGI-VGA-S-F send balun, a DIGI-VGA-R-F
receive balun, two power supplies, and a USB power
cable. The kit is powered on both the send and receive
end with either 12 VDC power supplies or optional USB
power on the send end. The send balun provides local
audio/video outputs for added versatility, whereas the
receive balun features dual amplified audio/video
outputs for linking. In addition, the DIGI-VGA-R-F
receive balun provides brightness, contrast, and overall
picture quality adjustment for skew-free performance
over standard Cat 5 cabling.
|
The Intelix DigiCat Series of baluns is the ideal solution for sending high performance
audio and video signals over structured cabling.
When signal quality matters, choose Intelix.
|
Technical Specifications |
| Max Distance |
1920 x 1200 resolution:
250 feet
1600 x 1200 resolution: 350 feet
1280 x 1024 resolution: 500 feet
1024 x 768 resolution: 700 feet
800 x 600 resolution: 850 feet |
| Video
Amplifier Bandwidth |
Receive Unit: 12V/0.5A
or 6W
Send Unit: 12V/0.2A or 2.4W |
| Max Units
for Linking |
3 |
| Max Distance
Between Links |
Distance based on
resolution |
| Power
Consumption |
Receive Unit: 12V/0.5A
or 6W
Send Unit: 12V/0.2A or 2.4W |
|
Audio Frequency Response |
20 Hz to 20 kHz |
| Audio
Impedance |
600 Ohm |
| Audio
Nominal Level |
0 - 1.0 V |
| Common Mode
Rejection |
60 dB |
| Input Video
Signal |
1.2 V p-p |
| Cable |
Cat 5, Cat 5e, Cat 6,
and Cat 7 compatible |
| Send Device
Connectors |
One male HD15 input,
one female HD15 output, one 1/8" mini
audio input, one 1/8" mini audio output,
one shielded RJ45 output, one USB type-B
power connector, one DIN mini power
connector |
| Receive
Device Connectors |
Two female HD15
outputs, two 1/8" mini audio outputs,
one shielded RJ45 input, one DIN mini
power connector |
| Brightness |
Front panel trim-pot on
the DIGI-VGA-R-F receive unit |
| Contrast
(skew adjustment) |
Front panel trim-pot on
the DIGI-VGA-R-F receive unit |
| Status |
Front panel video,
audio, and power LEDs on both the
receive and send units |
| Enclosure |
RF shielded metal |
| Dimensions |
Receive Unit: 6.25" x
1.25" x 3.25"
Send Unit : 6.25" x 1.25" x 3.25" |
| Shipping
Weight |
4.0 lbs. |
| Temperature |
Operating: 32 to 131
degrees F
Storage: -4 to 185 degrees F
Humidity: up to 95% |
| Warranty |
2 years |
| Part # |
DIGI-VGA-F |
| Included
Accessories |
Two power supplies |
|
|
*Distances, picture and audio quality
may be affected by cable grade, cable quality,
source and destination equipment, RF and
electrical interference, and cable patches.
Intelix specifications are based on
straight-through cabling with standard-grade Cat
5.
Design with Intelix and Design with Intelligence
|
Why Cable Solutions?
Customer service is our first priority. We do
our best to help you find the best solutions for your
particular application. We're enthusiasts too, so
we know what it's like to wait for cables and
accessories that are needed to hook up new gear.
We also know how important it is to be able to get a
response when you need help, so you'll often find us
working long hours in an effort to get you the answers
that you need.
Design excellence, high quality materials, meticulous
workmanship, and superior service...put it all together
and you get a superior product. Don't get stuck
with bad advice, poor service, slow shipment or an
inferior product. If you want the best, here it
is.
Miscellaneous
Please click here to read
our policies and disclaimer. Thanks for reading
all of this!
|
Click on any of the
pictures below for a closer view!

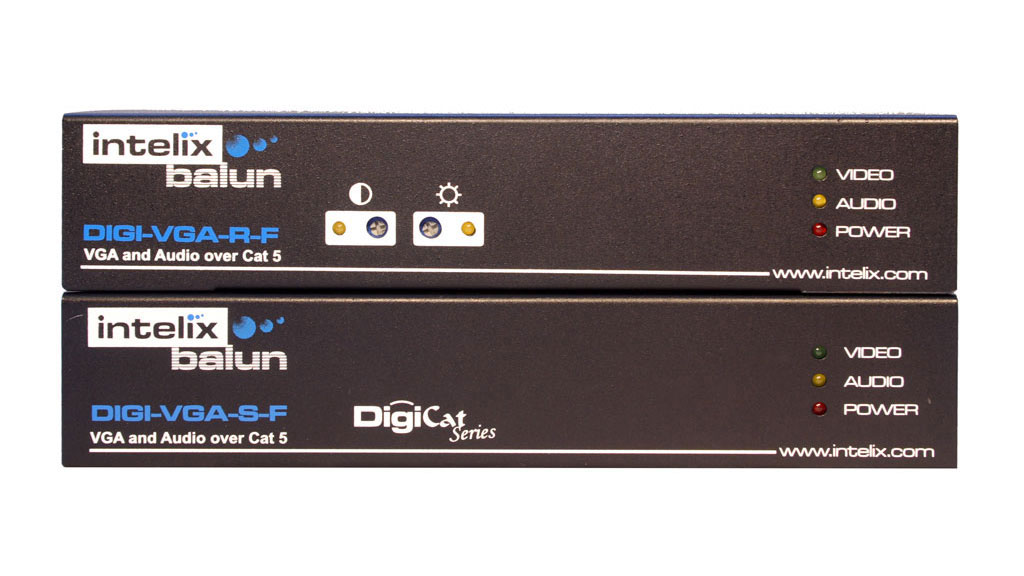

Intelix DIGI-VGA-F Distribution
Amplifier. The receive unit is on the top and the
transmit unit is on the bottom.

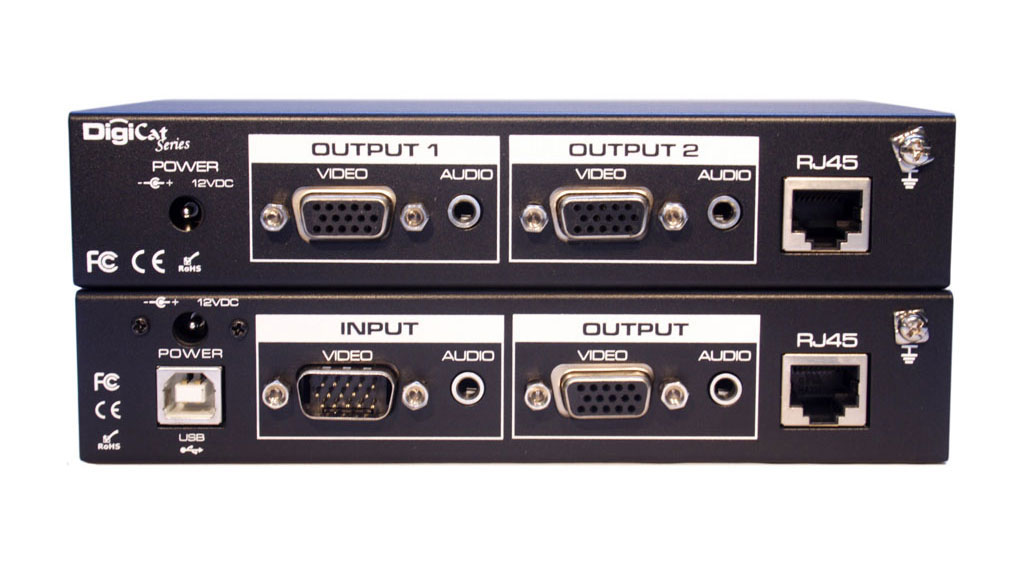

Here is a good look at the rear
panels. In this photo, the receive unit is on the
top and the transmit unit is on the bottom.

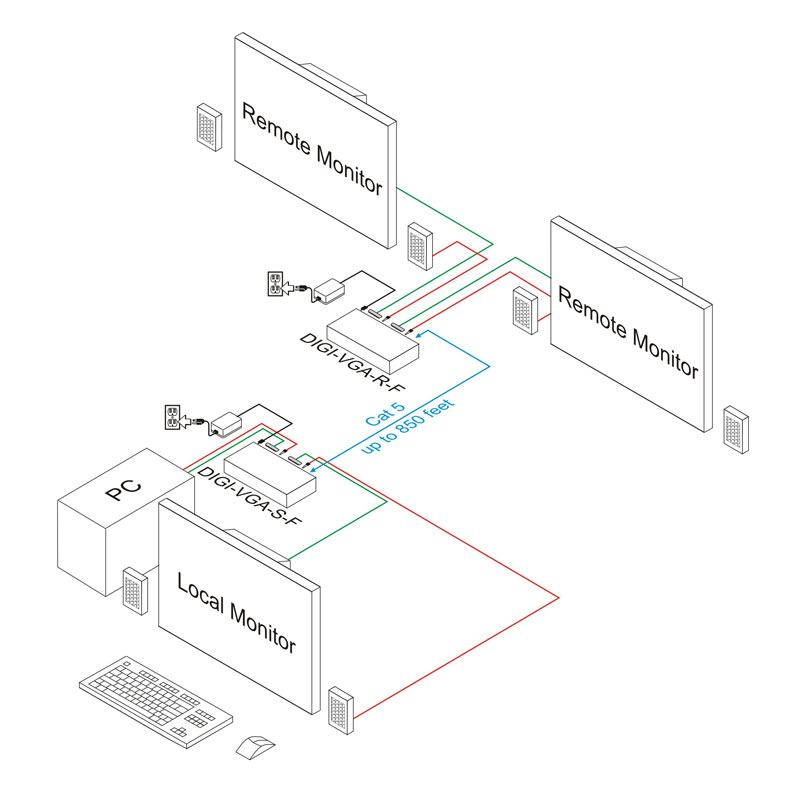

In this connection example, a PC is
