Intelix DIGI-SCAL-11x2 HD Switcher / Scaler

High Resolution Switcher with Built-in Scaling and Format Conversion

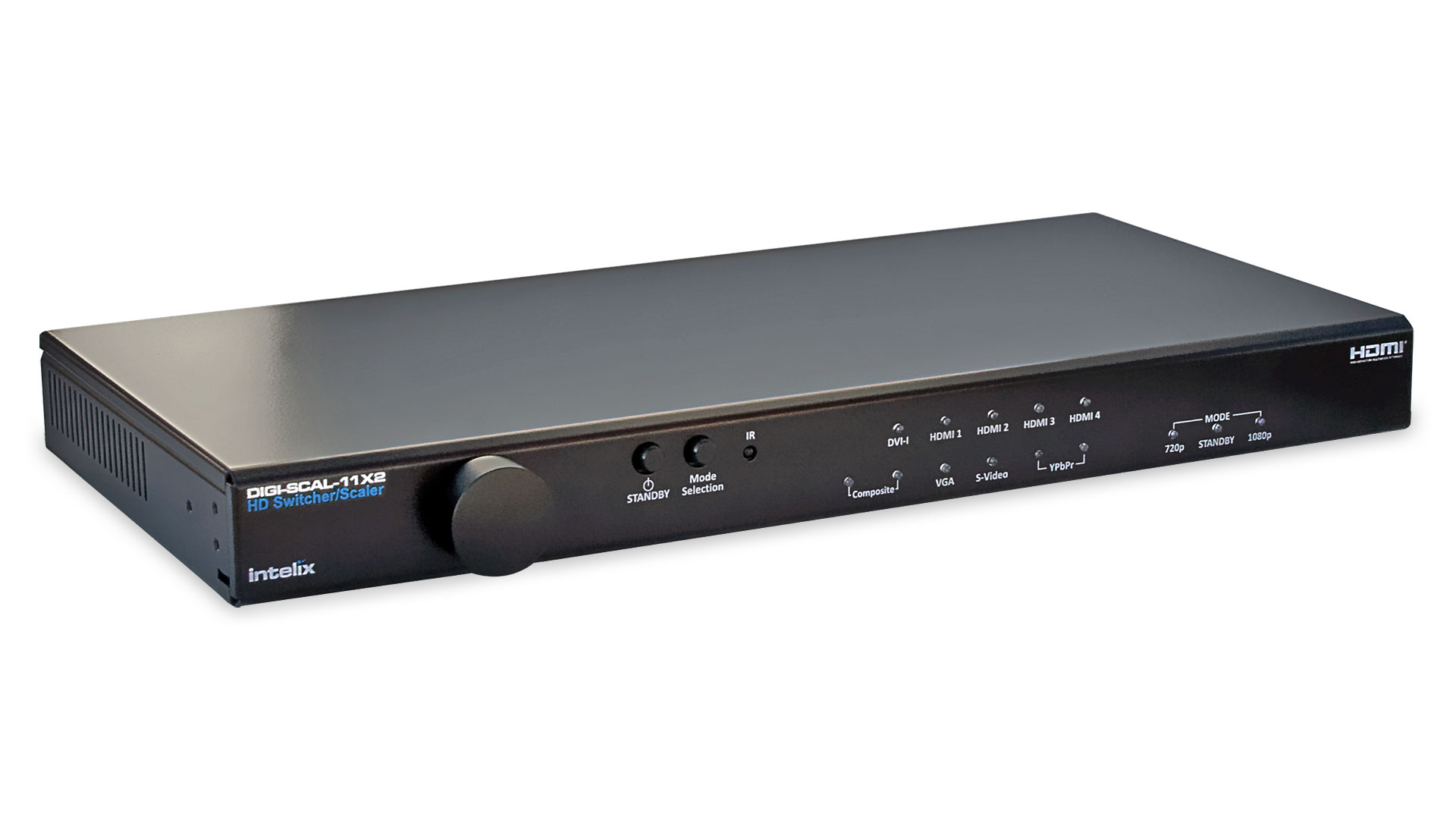

Intelix DIGI-SCAL-11X2 High-Definition Switcher/Scaler/Format Converter

Intelix DIGI-SCAL-11X2 High-Definition Switcher/Scaler/Format Converter

The DIGI-SCAL-11x2 is a revolutionary high-definition switcher with built-in scaling and audio/video format conversion. It provides functionality that would normally require three separate devices - switching, scaling, and format conversion, all in a compact, easy-to-use product.

The DIGI-SCAL-11x2 is ideal for integrating legacy, non-HD equipment into a distributed high-definition audio-visual system. It provides switching between eleven different audio-visual sources, up-scaling them to 720p or 1080p, and converting them to HDMI.

The unit features five stereo audio inputs, four HDMI inputs, two YPbPr inputs, two composite video inputs, one S-video input, one VGA input, one DVI-I input, and one optical digital audio input. Dual HDMI outputs allow two displays to be driven simultaneously, and separate optical and stereo audio outputs provide connectivity to analog audio reinforcement systems.

Third-party control systems integrate seamlessly via RS232 and IR, and the unit may also be controlled via the front panel or with an included wireless remote control. In addition, built-in video processing provides picture adjustment.

Like most Intelix products, the DIGI-SCAL-11x2 comes with a two-year limited warranty.

Intelix's Description

Intelix DIGI-SCAL-11X2

High-Definition Switcher/Scaler/Format Converter

How do you integrate multiple analog and digital devices into a single, comprehensive high-definition environment? Magic? Miracle? Intelix.

The Intelix DIGI-SCAL-11X2 features the processing of three different devices—switching, scaling, and format conversion—in a single, 1RU chassis. It provides switching between eleven different audio-visual sources, scales the sources up to 720p or 1080p, and converts the signals to HDMI for seamless integration into your HD environment.

The DIGI-SCAL-11X2 makes your old skool equipment look good and your new school technology state-of-the-art.

Design with Intelix and Design with Intelligence.


Features:

  • HDMI and HDCP compliant
  • Scaling up to 720p or 1080p
  • Remote and local source switching
  • RS232, IR, and front panel control
  • Included wireless remote
  • Rack-mountable
  • Four HDMI inputs
  • Two composite video inputs
  • Two YPbPr video inputs
  • One VGA input
  • One S-Video input
  • One DVI-I input
  • Five stereo audio inputs
  • One digital audio input
  • Two HDMI outputs
  • One digital audio output
  • One analog audio output

Feature Focus

  • HDMI and HDCP compliant. Forget the imitations, Intelix only delivers compliant technology.
  • Analog and digital inputs. Whether analog or digital, the DIGI-SCAL-11X2 has you covered. It features composite video, S-Video, component video, VGA, and stereo audio inputs, as well as DVI, HDMI, and optical audio inputs. Both analog and digital are switched and scaled.
  • Smart negotiation/smart scaling. The DIGI-SCAL-11X2 provides scaling up to 720p or 1080p. For applications requiring native VESA resolutions, such as with DVI and VGA, the unit features a bypass mode to keep your signals at native resolutions.
  • Enhanced control. The DIGI-SCAL-11X2 features front panel control, IR control, and RS232 control. In addition, the unit ships with a wireless remote control.
  • Shelf-top or rack-mountable. The DIGI-SCAL-11X2 includes bottom panel mounting feet for shelf-top applications and 19" rack ears for permanent rack installations.
  • Built-in audio conversion. The DIGI-SCAL-11X2 features analog-to-digital and digital-to-analog converters. Analog audio inputs are interlaced with video inputs and distributed out of the HDMI outputs. Optionally, digital audio on the HDMI inputs are converter to stereo audio and distributed out of the analog audio outputs.
  • Built-in video processing. The DIGI-SCAL-11X2 features built-in video processing, allowing you to dynamically adjust picture contrast, brightness, saturation, sharpness, hue, noise rejection, and size.
  • Compact design. The DIGI-SCAL-11X2 is only one rack unit tall.

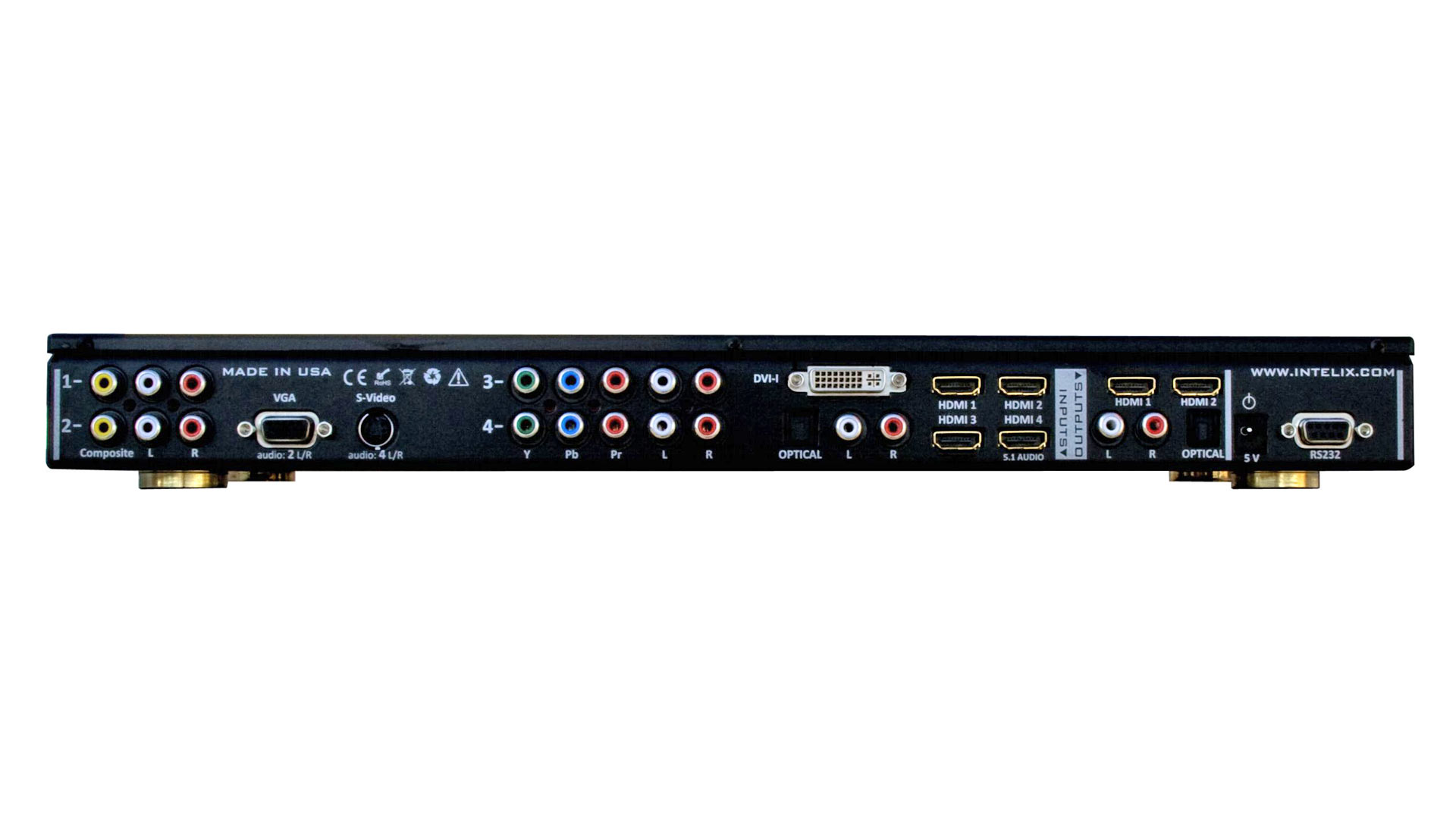

Intelix DIGI-SCAL-11X2 HD Switcher/Scaler/Format Converter - back panel

This photo shows the back panel.

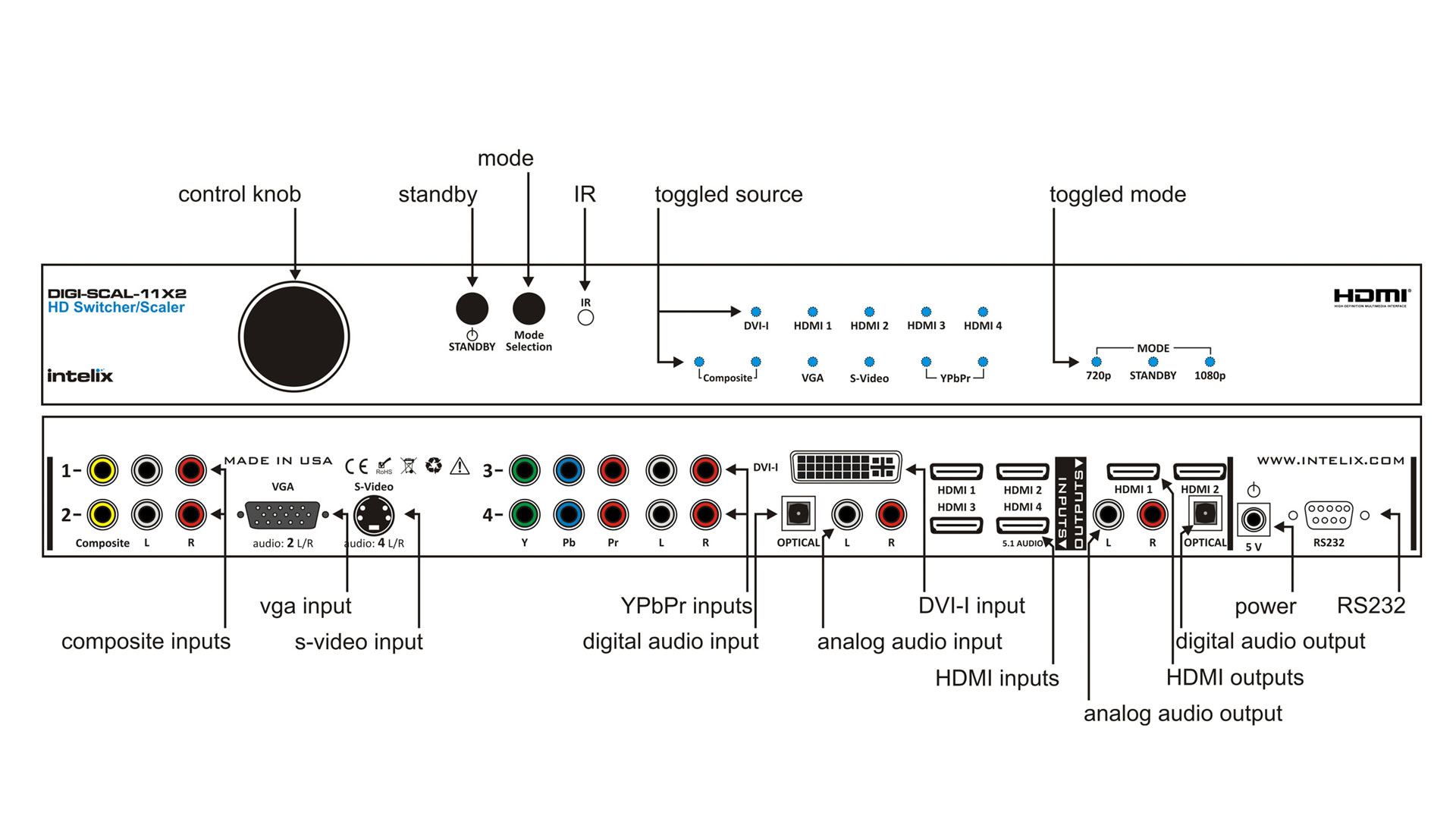

Intelix DIGI-SCAL-11X2 HD Switcher/Scaler/Format Converter - panel detail drawing

This drawing illustrates the front and back panels in great detail.

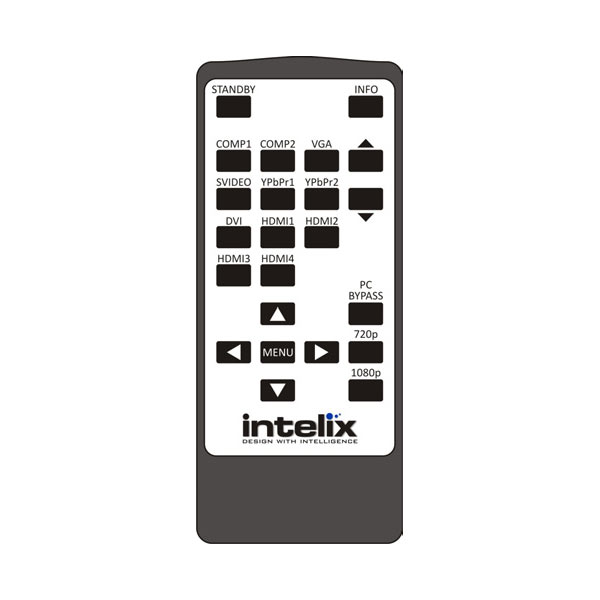

Intelix DIGI-SCAL-11X2 HD Switcher/Scaler/Format Converter - remote control

Here is a drawing of the included IR remote control.

Intelix DIGI-SCAL-11X2 spec sheet - click to download PDF

This is the spec sheet - click to download PDF

Intelix DIGI-SCAL-11X2 User Manual - click to download PDF

Here is the Installation Manual in PDF format.

Add to Cart to see your discounted pricing!
Product Description SKU MSRP Your Price Quantity
Intelix DIGI-SCAL-11X2 High-Definition Switcher/Scaler/Format Converter DIGI-SCAL-11X2 $799.95 DISCONTINUED DISCONTINUED
SSL Secure Site Logo This item has been discontinued. Please consider these models as an alternatives.
