Intelix DIGI-HD-8X8 HDMI Distribution System
High-Definition Matrix Switcher with Cat-5 / Cat-6 Twisted-Pair Outputs
Intelix DIGI-HD-8X8 HDMI Distribution System
High-Definition Matrix Switcher with Cat-5 / Cat-6 Twisted-Pair Outputs
The Intelix DIGI-HD-8X8 HDMI Matrix Distribution System offers features that are not found in competing products.
For example, if you take a look at the back panel, you will find eight pairs of twisted-pair output jacks, as you would expect from a twisted-pair distribution system, but what may not be immediately apparent is that the system also has eight active HDMI outputs as well. This makes it simple to add one or more local monitors, in addition to the eight remote monitors. This 8x8 HDMI matrix system also includes IR pathways for each of the eight remote monitors, enabling remote control of the eight sources, as well as the distribution system itself.
The DIGI-HD-8X8 is HDMI version 1.3 capable as well, making it a perfect choice for more advanced systems. Advanced chipsets and firmware promise superior HDCP compatibility and trouble-free operation.
Twisted-pair receivers are sold separately below, so you can get exactly the functionality you need. Use any combination of receivers, up to a total of eight receivers (add to your cart below):
- DIGI-HD-UHR2-R Enclosed Receiver - HDMI (only), one twisted-pair cable required
- DIGI-HD-UHR2-WP-R Wallplate Receiver - HDMI (only), one twisted-pair cable required
- DIGI-HD-IR3-R Enclosed Receiver - HDMI and bi-directional IR, two twisted-pair cables required
- DIGI-HD-IR3-WP-R Wallplate Receiver - HDMI and bi-directional IR, two twisted-pair cables required
- DIGI-HD-XR Enclosed Receiver / Repeater - use to extend range and/or to add cascaded HDMI outputs.
The UTP (Unshielded Twisted Pair) hardware is capable distances of up to 300 feet, depending upon UTP cable quality and signal bandwidth.
As with virtually all systems that are based upon twisted-pair cable technology, the Intelix HDMI Twisted-pair Matrix Distribution System will work with virtually any twisted-pair cables, including Cat-5e and Cat-6, but range and system bandwidth are directly related to both distance and cable quality, so to get the highest resolutions at the greatest distances, you will want high-quality, low-skew cables. Check the installation manual for more information. If you want the very best pre-terminated cables, please consider our VideoTwist cables.
Like most Intelix products, the DIGI-HD-8X8 comes with a two year limited warranty from the manufacturer.
Intelix's Description
DIGI-HD-8X8 High-Definition Twisted Pair Matrix
Why settle for mediocrity? The Intelix DIGI-HD-8X8 combines a professional-grade HDMI matrix with Intelix's industry-leading extenders. Each system provides eight HDMI inputs, eight HDMI outputs, and eight twisted pair outputs. Plus, a built-in touch screen delivers front panel source selection and matrix routing with ease. Third-party control systems integrate seamlessly via RS232, Ethernet or IR.
In addition, the DIGI-HD-8X8 features eight pass-through IR channels which distribute remote IR commands from in-room controllers, through compatible Intelix twisted pair extenders, up to 150 feet over twisted pair cable, and out of the matrix, allowing complete control of remote sources from the destination. The Intelix DIGI-HD-8X8 is the ultimate solution for whole house audio/video distribution.
Features
- Eight HDMI inputs
- Eight HDMI outputs and eight twisted pair balun outputs
- 1080i and 1080p compatible
- HDMI 1.3b and HDCP compliant
- Distributes eight IR signals from remote destinations to local sources
- Front panel, Ethernet, RS232, and IR control
- Diagnostic 3.75" touch screen for setup and control
- Contractor locking and owner locking
- Included wireless remote
- 3D compatible
- Rack-mountable
DIGI-HD-8X8 Touch Screen
The Intelix DIGI-HD-8X8 features a 3.75" touch screen on the front panel which is ideal for system setup and control. The touch panel software also runs on a computer or Java-enabled device (pocket PC, smart phone, etc.), delivering intuitive programming and control from remote destinations.
[please click here to see a sampling of screenshots]
HDshāk Processing
Intelix HDshāk technology delivers the highest level of EDID negotiation, ensuring proper source & destination handshaking over twisted pair every time.
[please click here for details]
DIGI-HD-8X8 Feature Focus
HDMI 1.3 compliant. Forget HDMI handshake issues, loss of audio, and video flickers. The DIGI-HD-8X8 features an HDMI 1.3b chipset, providing the most stable and uniform platform for HDMI sources and destinations. Plus, the matrix supports Deep Color and Lossless Digital Audio.
Built-in twisted pair extenders. The DIGI-HD-8X8 features HDMI and twisted pair extender outputs. If the destinations are close, use the HDMI outputs. If the destinations are far away, use the twisted pair outputs and a compatible Intelix receiver. In addition, the HDMI and twisted pair outputs are paralleled, allowing simultaneous use per channel.
Smart negotiation. The DIGI-HD-8X8's on-board CPU automatically negotiates outputs with various resolutions, allowing multiple sized monitors from different manufacturers to be used simultaneously.
Enhanced control. No matter what the application, the DIGI-HD-8X8 has you covered. The matrix features front panel control, Ethernet control, IR control, and RS232 control. In addition, the matrix ships with a wireless remote control.
Shelf-top or rack-mountable. The DIGI-HD-8X8 includes bottom panel mounting feet for shelf-top applications and 19" rack ears for permanent rack installations.
IR pass-through. Tired of third-party IR switchers and patch panels? When used in conjunction with an Intelix DIGI-HD-IR3-R receiver, the DIGI-HD-8X8 matrix distributes remote IR commands over twisted pair cable, through the matrix, and out to local sources. This means the DIGI-HD-8X8 transmits IR signals from your remote destination back to the rack, switches them inside the matrix, and distributes them to your cable boxes, DVD player, or other local source device.
DIGI-HD-8X8 Downloads
- DIGI-HDI-8X8 Technical Specifications
- DIGI-HD-8X8 Installation Manual
- DIGI-HD-8X8 Software

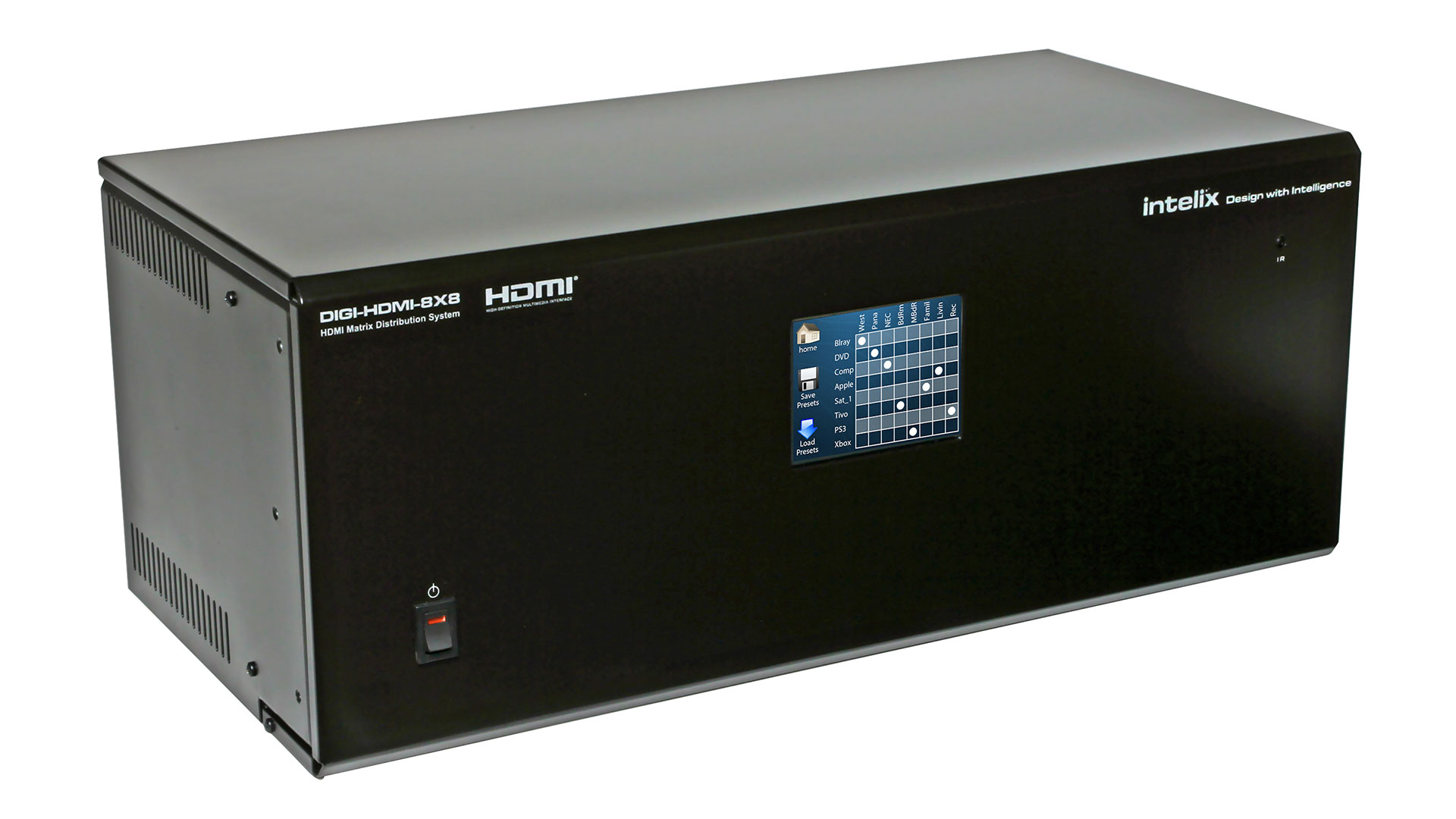

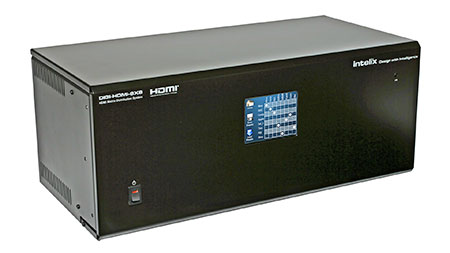

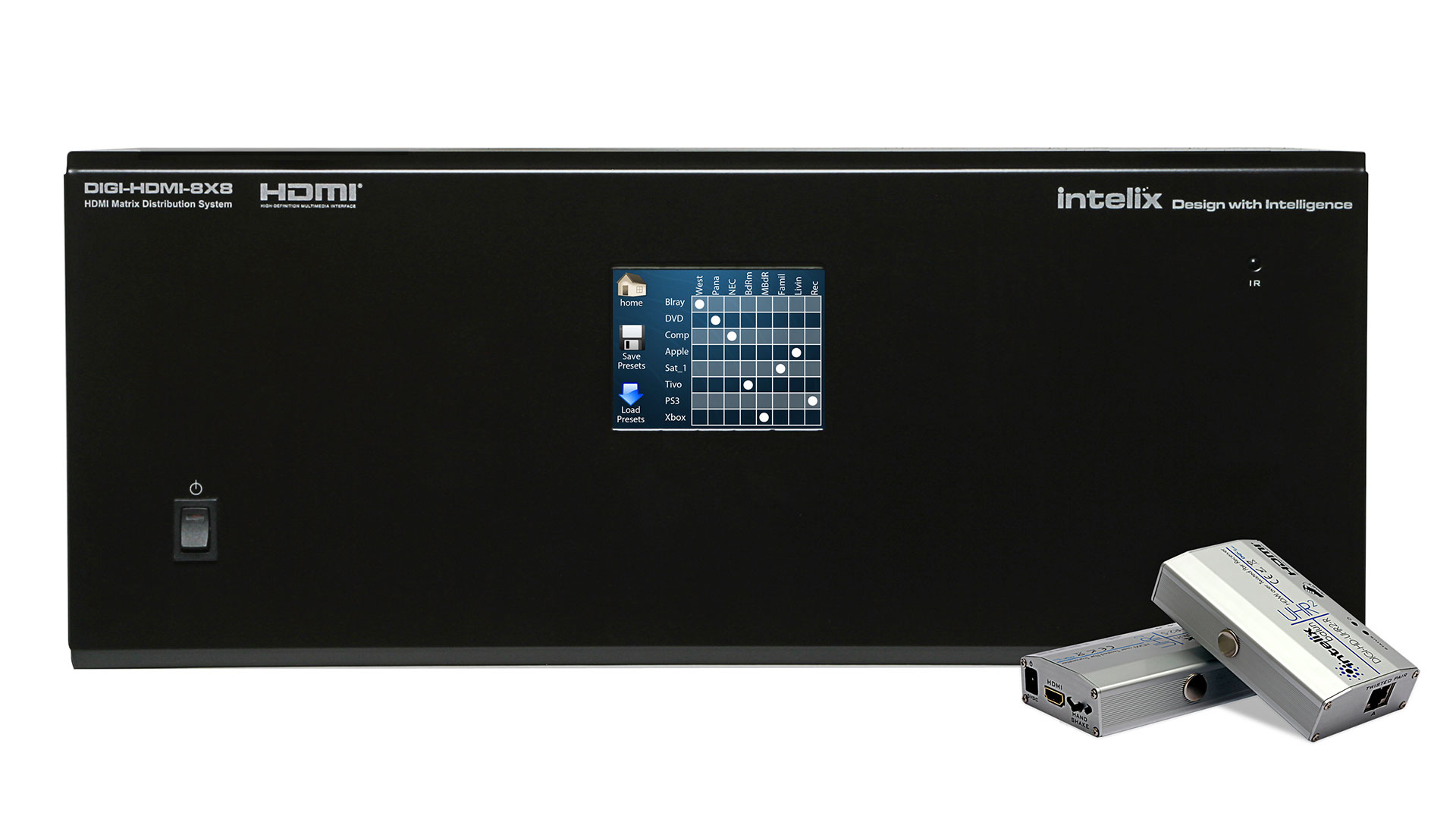

Here is a closer look at the DIGI-HD-8X8 front panel.

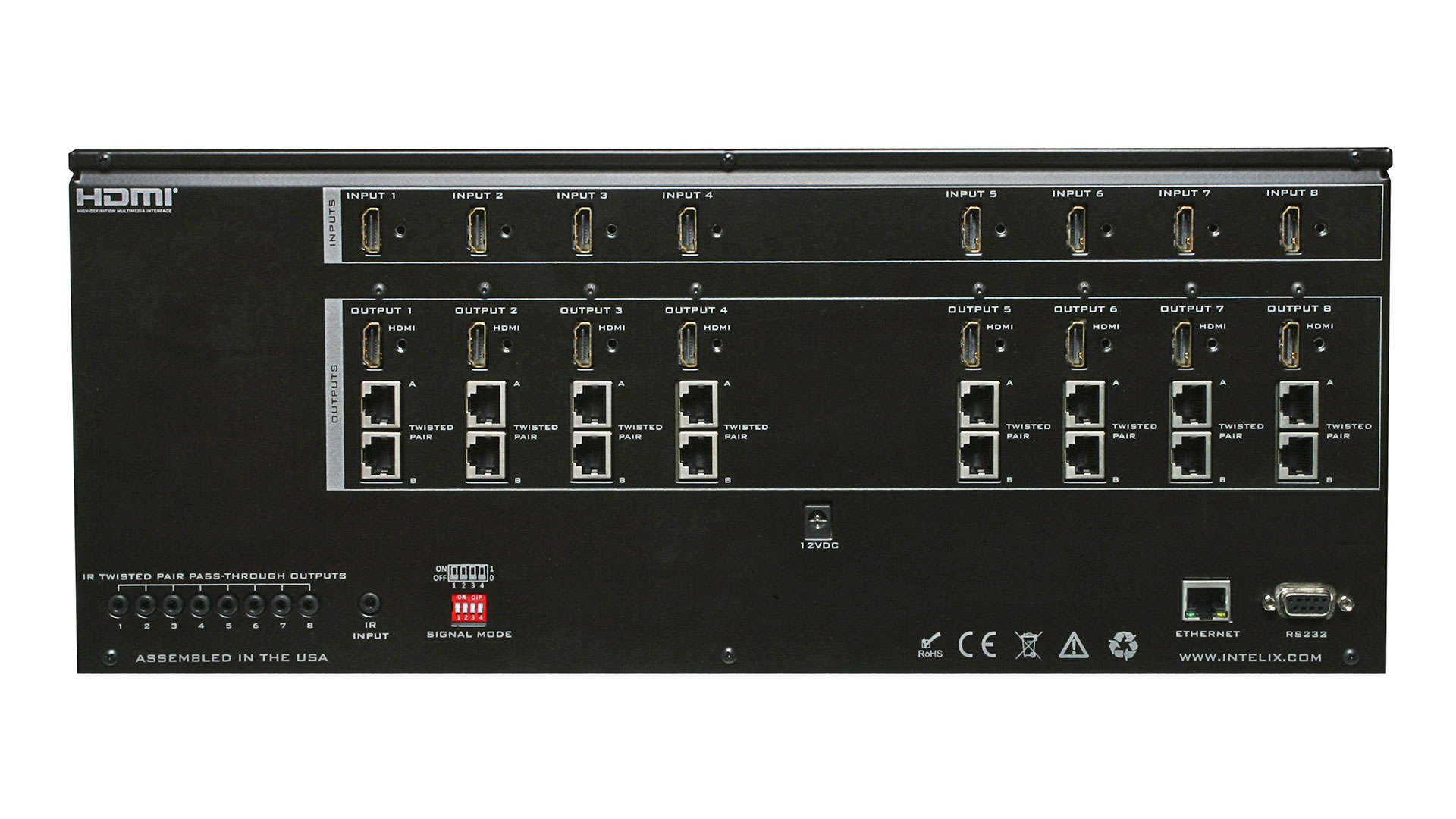

This photo shows the back panel.

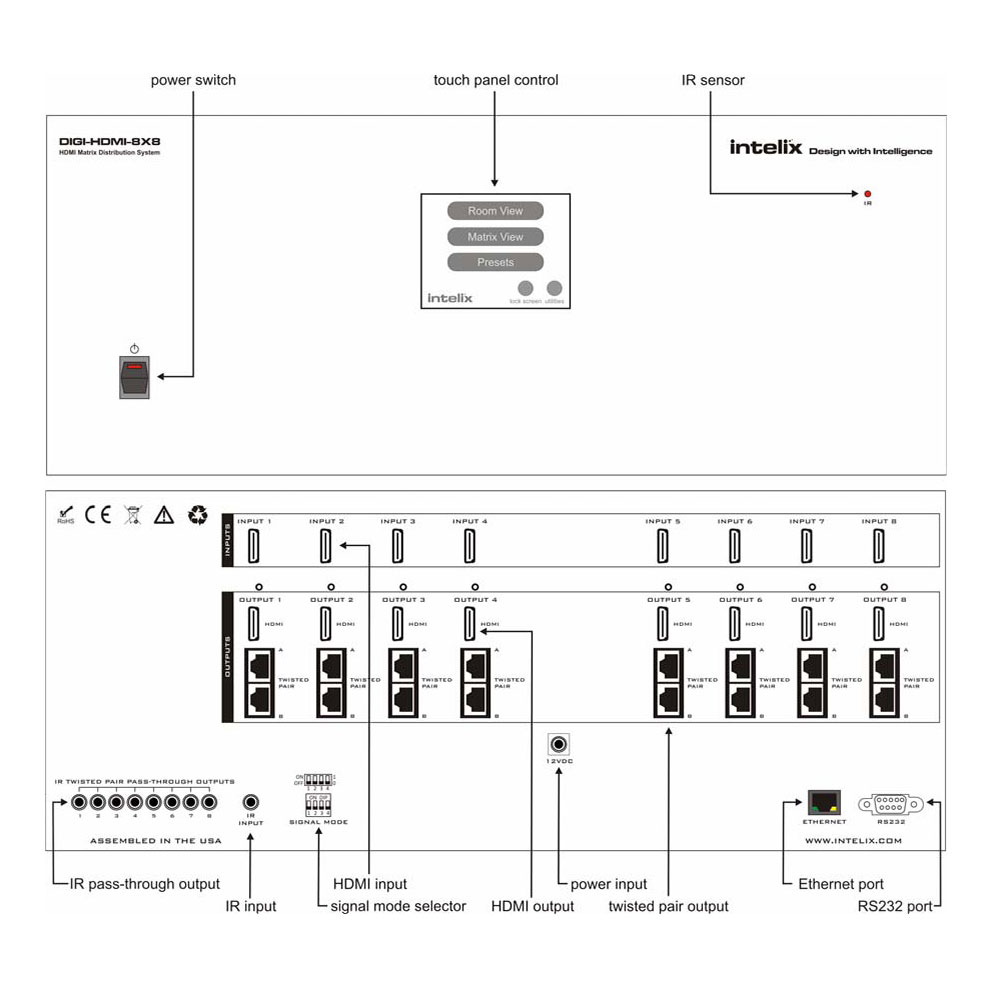

This drawing illustrates the front and back panels in great detail.

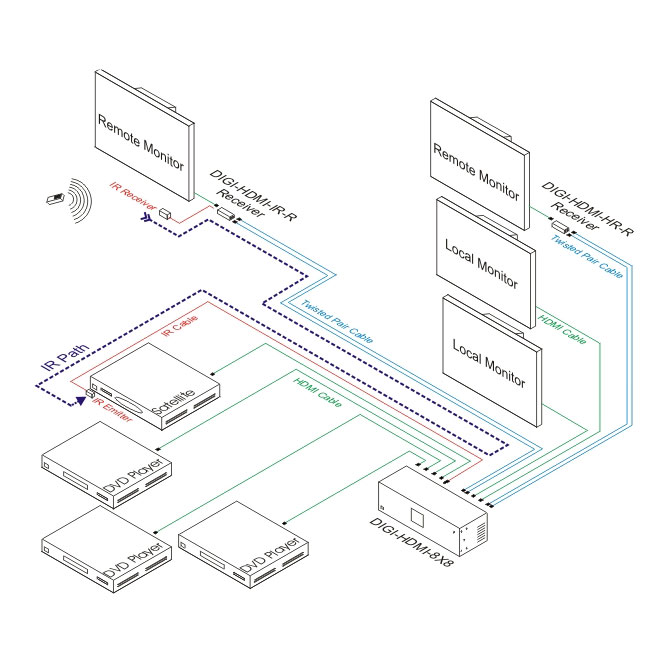

In this connection example, HDMI audio/video from four sources are transmitted to an Intelix DIGI-HD-8X8 and routed to four monitors. The two local monitors are connected with HDMI cables (not Included), the two remote monitors are connected with unshielded twisted pair cables (not included).
Here is the optional DIGI-HD-UHR2-R Twisted-Pair Receive Balun. Use up to eight receivers per DIGI-HD-8X8 system. (Add to your cart below).
The optional DIGI-HD-IR3-R Cat-5 Receive Balun is similar to the model above except that it also includes bi-directional IR functionality. Use up to eight receivers per DIGI-HD-8X8 system.(Add to your cart below.)
Here is a product brochure, in PDF format.
This is the spec sheet, in PDF format.
Here is the Installation Manual, in PDF format.
