Gefen 1:4 VGA Hub / Distribution Amplifier
Connect up to Four Displays to a Single Source
Gefen EXT-VGA-145 1:4 VGA Hub

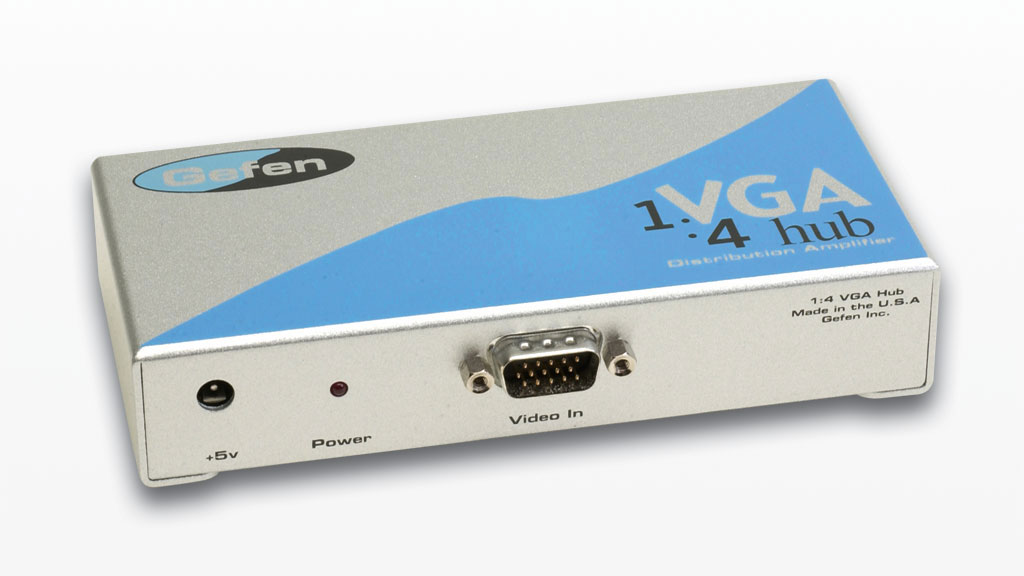

From left to right, a power connector, LED power status light, and the video input are on the front of the unit.
The Gefen EXT-VGA-145 VGA Hub is a high-performance distribution amplifier, suitable for computer resolutions up to 1920 x 1200 and HDTV resolutions up to 1080p. This 1x4 VGA hub is equipped with VGA-style HD-15 connectors, making it simple to connect up to four monitors to one computer or HDTV source component.
The EXT-VGA-145 comes with a 1 meter VGA cable, and a power supply.
Warranty
Cable Solutions backs the EXT-VGA-145 with a one year limited warranty against defects in materials and workmanship. This warranty is separate from any warranty that may be provided by the manufacturer, so you must contact Cable Solutions for all warranty-related issues.
Gefen's description
One VGA Input, Four VGA Outputs
The 1:4 VGA Hub allows a computer with a VGA graphic card to connect to up to four VGA compatible monitors or projectors at the same time. Because it allows one computer to drive multiple monitors for simultaneous viewing, you can use it to set up additional monitors in the workspace, or to assist presentation environments by sending graphics to both monitors and projectors at the same time.
How it works
You simply connect your computer's VGA graphic port to the 1:4 VGA Hub's input using the supplied cable. Up to four analog monitors or projectors are connected to the Hub's four VGA outputs. VGA output 1 is the primary connection and is used for the main display. VGA output 2, 3 and 4 will mirror the primary connection.
Tech Specs
Features:
- Easily distribute one source to four simultaneous displays
- Supports component video distribution
- Supports resolutions up to 1080p, 2K, and 1920 x 1200
- Allows four monitors to be connected to the same video source at the same time
Specifications:
- VGA Amplifier Bandwidth: 350 MHz
- Input Video Signal: 1.2 Volts p-p
- Input Sync Signal: 5 Volts p-p (TTL)
- Horizontal Frequency Range: 15 - 70 KHz
- Vertical Frequency Range: 30 - 170 Hz
- Supports all VESA standard resolutions
- Input VGA Connector: HD-15 male
- Output VGA Connector: HD-15 female
- Power Supply: 5V DC
- Power Consumption: 5 watts (max)
- Dimensions: 1"H x 5.75"W x 2.5"D
- Shipping Weight: 4 lbs.
Package Includes:
- 1:4 VGA Hub
- One 6ft VGA cable (M-F)
- 5V external power supply

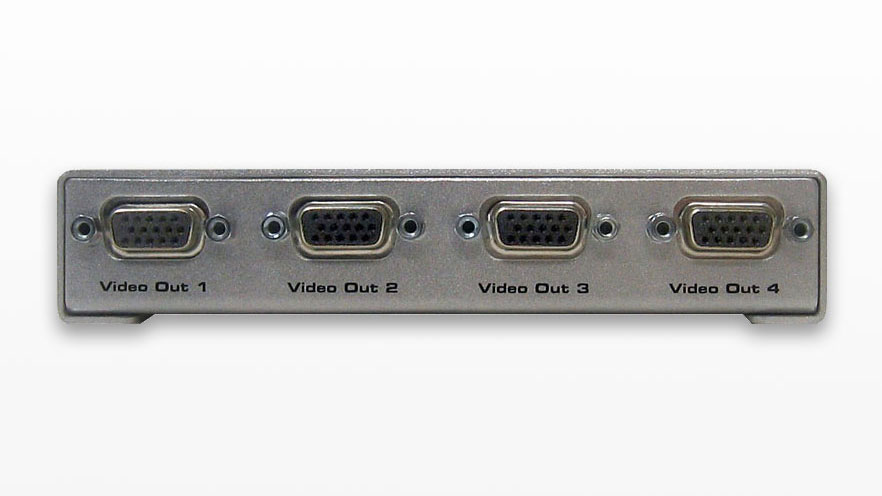

Here is a good look at the back panel of the device. As you can see, the four output connectors are arranged, 1 through 4, from left to right.

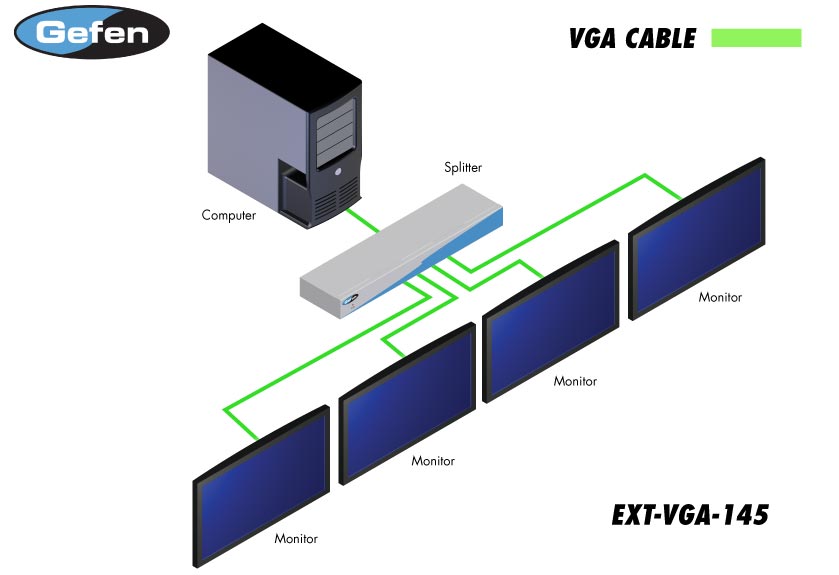

Here is a connection example.
This is the User Manual - click to download in PDF format.
