Gefen EXT-DVI-142DL 1x2 DVI Dual-Link Splitter
(1) dual link DVI input, (2) dual link DVI outputs

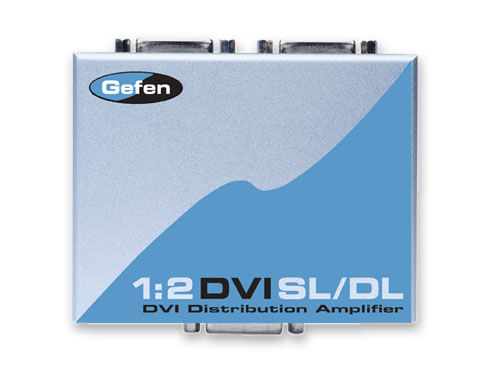

Gefen EXT-DVI-142DL 1x2 DVI Splitter
This Gefen EXT-DVI-142DL 1x2 Dual Link DVI Splitter / Distribution Amplifier distributes a dual link DVI digital video signal to two or more displays.
The unit supports single link resolutions up to 1920 x 1200, and dual link up to 3840 x 2400.
Warranty
Cable Solutions backs the EXT-VGA-145 with a one year limited warranty against defects in materials and workmanship. This warranty is separate from any warranty that may be provided by the manufacturer, so you must contact Cable Solutions for all warranty-related issues.
Gefen's Description
Overview
1x dual link DVI input, 2x dual link DVI outputs.
The DVI DL Splitter allows computers with a Dual Link DVI output to be connected to two or more Dual Link DVI displays at the same time. It is a flexible distribution hub that can accommodate multiple displays when two or more DVI DL Splitters are connected together to create a greater distribution.
How It Works
The DVI DL Splitter is connected with a Dual Link DVI cable from the Dual Link DVI source to the DVI DL Splitter input. There are two DVI outputs. DVI output 1 is the primary connection and is used for the main display. DVI output 2 follows the main display.
Note:
A connected display that cannot show the same video resolution(s) as the Primary Display connected to Output #1 may fail to show a picture. Secondary displays follow the Primary by sharing the resolution and capability information (EDID) obtained from the Primary Display.
This product also supports Single Link DVI.
Tech Specs
Features:
- Splits a dual link DVI signal to two or more dual link DVI displays
- Allows simultaneous display
- Supports resolutions up to 1080p, 2K, and 3840 x 2400
- Supports HDCP passthrough for output one
- Supports DDWG standard for DVI compliant monitors
Specifications:
- Video Amplifier Bandwidth: 2 x 165 MHz
- Input Video Signal: 1.2 volts p-p
- Input DDC Signal: 5 volts p-p (TTL)
- Dual Link Maximum Resolution: 3840 x 2400
- DVI Input/Output Connector: DVI-I (29 pin) female (digital only)
- Operating Temperature range: +5 to +45 Deg. Celsius
- Operating Humidity range: 5 to 65% RHL, non-condensing
- Storage Temperature range: -20 to +70 Deg. Celsius
- Storage Humidity range: 5 to 95% RHL, non-condensing
- Power Supply: 5V DC
- Power Consumption: 8.15 Watts (max)
Package Includes:
- DVI DL Splitter
- One 5V Power Supply
- One 6 ft Dual Link DVI cable (M-M)
- User's Manual
Optional Accessories:

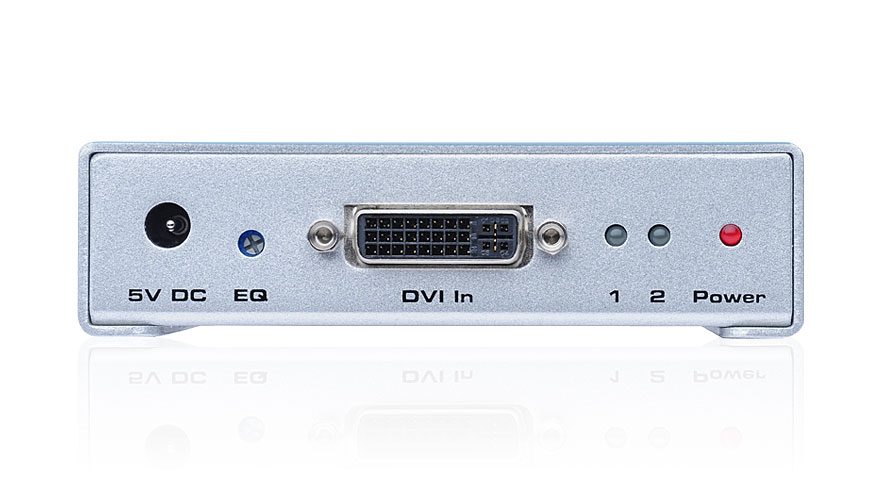

Here is a good look at the front panel of the device

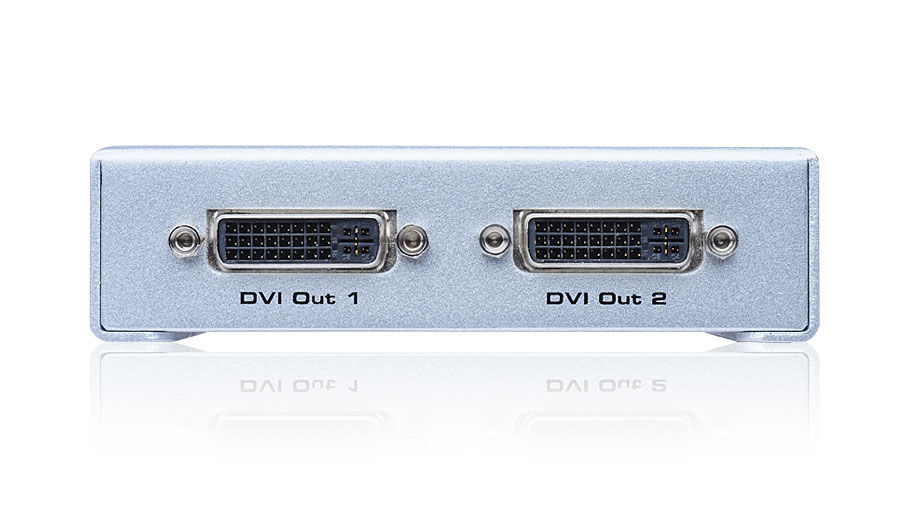

Here's a close up of the back panel

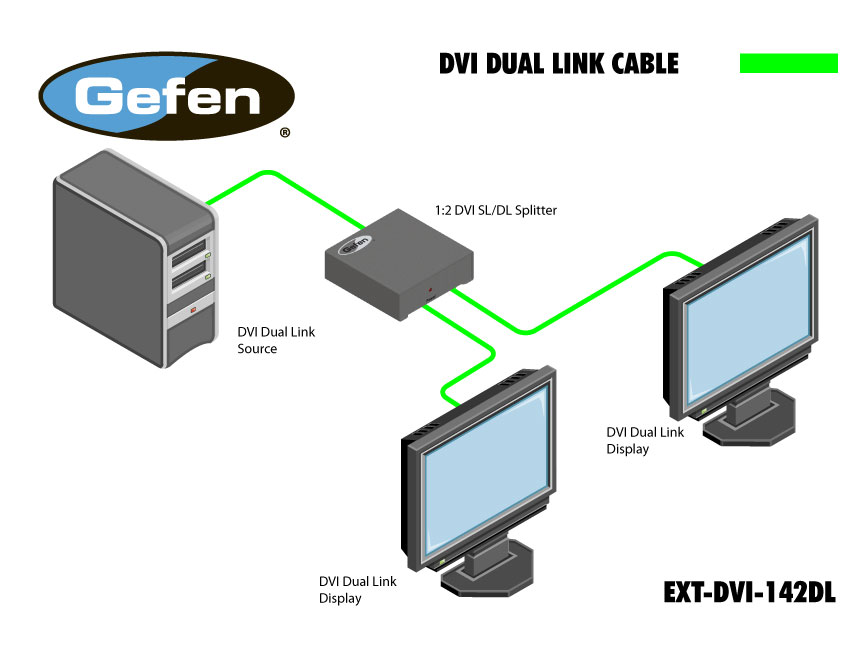

Here is a connection example.
This is the User Manual - click to download in PDF format.
