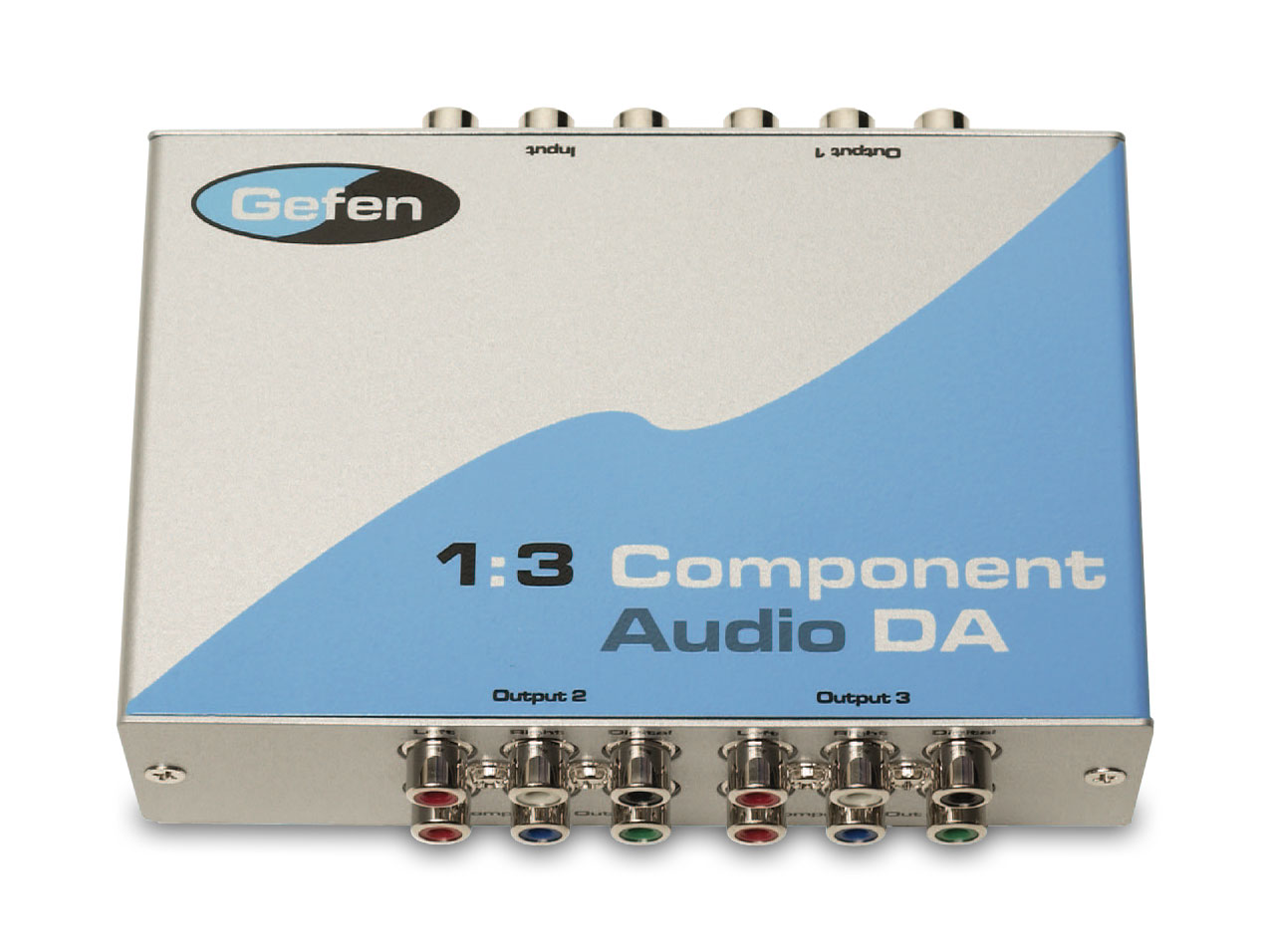

Gefen EXT-COMPAUD-143 1x3 Component Video and Audio Distribution Amplifier
Connect up to three displays to a single source
Gefen EXT-COMPAUD-143 1x3 Component Video and Audio Distribution amplifier
This Gefen EXT-COMPAUD-143 1x3 Component Video and Audio Distribution Amplifier makes it easy to connect as many as three display devices to a single source.
The EXT-COMPAUD-143 supports Y/Pb/Pr component video at resolutions up to 1080p, computer resolutions up to 1920 x 1200, as well as both analog stereo audio and coaxial digital audio.
The unit also supports R/G/B/H/V video by repurposing the audio connectors to handle the H/V signals. As a bonus, this versatile distribution amp can also distribute composite and/or S-Video in place of component video.
Warranty
Cable Solutions backs the EXT-COMPAUD-143 with a one year limited warranty against defects in materials and workmanship. This warranty is separate from any warranty that may be provided by the manufacturer, so you must contact Cable Solutions for all warranty-related issues.
Gefen's description
Component Video and Digital Audio Distribution Amplifier
1:3 Component Audio Distribution Amplifier
One Component and Audio Input, 3 Component and Audio Outputs
The 1:3 Component Audio Distribution Amplifier is the perfect solution for anyone who needs to send one source of high definition component video and analog or digital audio to multiple displays at the same time. It supports all component equipment, such as DVD players and satellite set top boxes and all component displays. In operation, the component video source is connected to the distribution amplifier at the input. Three outputs are available to be used in part or in full. Once the unit is connected and powered, your source is routed to up to three component high definition displays at the same time.
Features:
- Connects up to three component displays at the same time to one video source
- Support SD(composite, YCbCr) and HDTV (YPbPr, RGsB) input signal
- Maintains 480p, 720p, 1080i, and 1080p resolutions
- Maintains high resolution video - beautiful HDTV resolutions up to 1080p are easily achieved video source at the same time
Specifications:
- Input: YPbPr x1 or RGsB x1 (or RGBHV), or composite x3 1 Vp-p@ 75 ohm
- Output: YPbPr x3, or RGsB (or RGBHV) x3, or composite 3x3
- Audio input: coaxial (S/PDIF) x1 + R/L x1
- Audio output: coaxial (S/PDIF) x3 + R/L x3
- Analog audio input/output: audio 2 Vrms max 47k ohm
- Bandwidth: 480MHz (-3dB)
- Video Range: 1080p
- Power Supply: 5V DC
- Power Consumption: 5W (max.)
- Dimensions: 5.5"W x 1.5"H x 3.6"D
- Shipping Weight: 4 lbs.
Package Includes:
- 1:3 Component DA
- One 6 foot Component cable
- 5V DC Power Supply
The power input, two DIV inputs and one DVI output connector can be seen on the back panel.
Shown here is the included IR remote control.

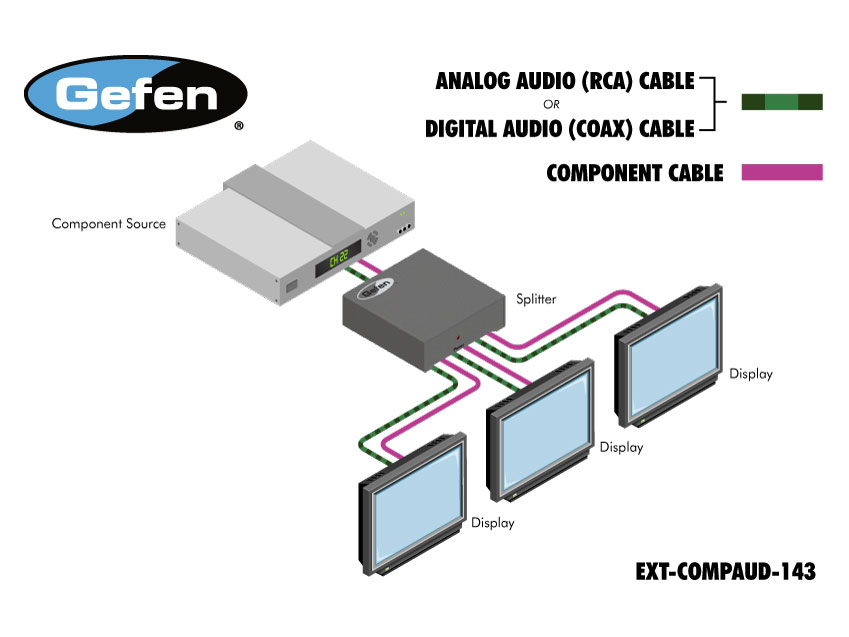

This connection example illustrates a typical installation.
Here is a product flyer - click to download in PDF format.
This is the User Manual - click to download in PDF format.
