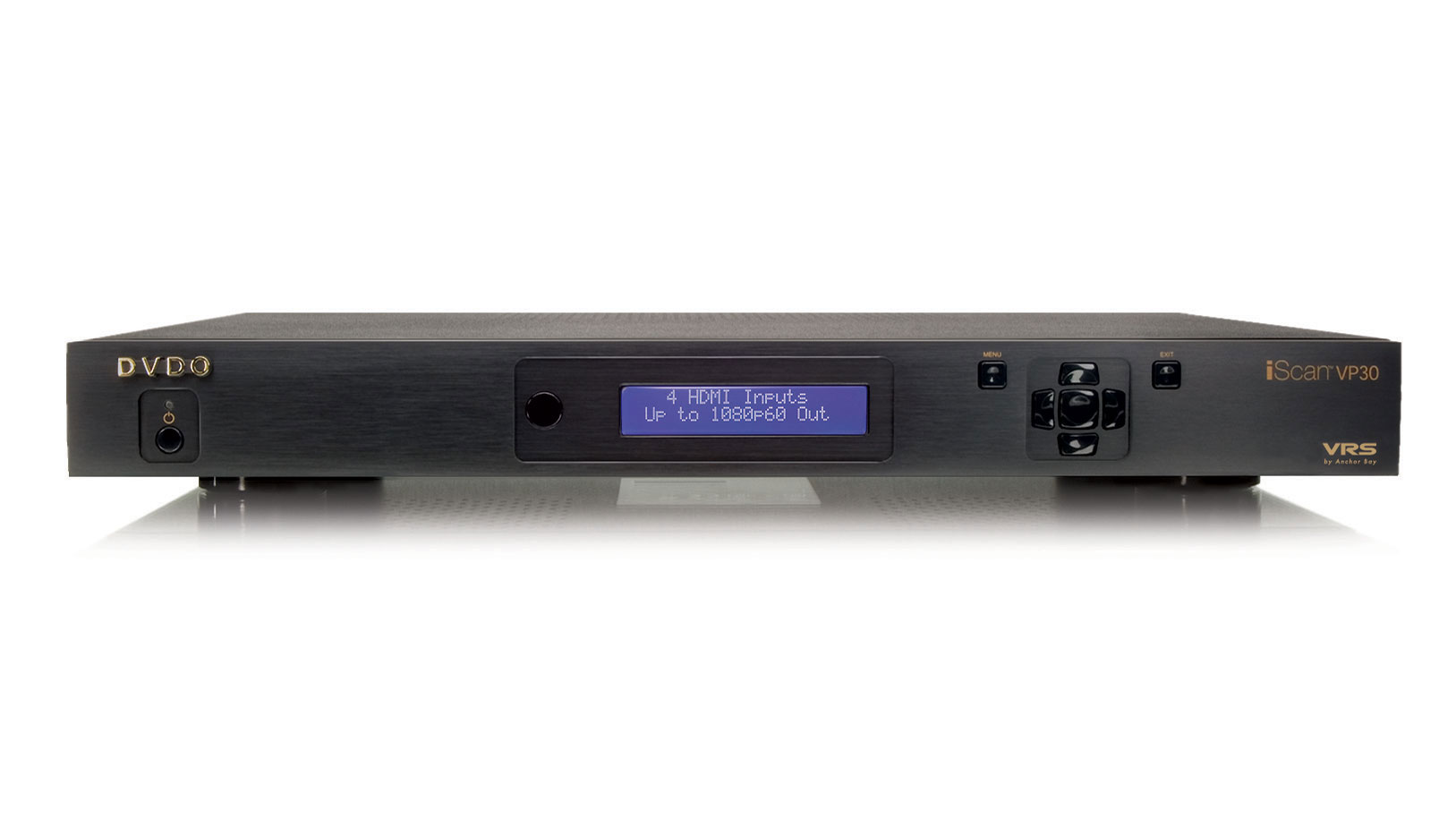

DVDO iScan VP30
High Definition Video Processor
The DVDO® iScan™ VP30 is the next generation high-resolution video processor
and A/V switcher that sets a new standard for up, down, and cross-converting all of your video
sources. Whether it's your 480i cable feed, 480p DVD player, or 720p or 1080i HD set-top-box
signal-the iScan VP30 scales your video output to perfectly match the optimum resolution of your
display, up to 1080p! Plus, it's HDCP compliant over each of the 4 digital HDMI inputs, and
accepts any legacy 480i/480p analog sources.
The VP30 serves as your complete A/V hub, providing audio/video switching that simultaneously
eliminates A/V lipsync and allows a one wire connection to display for all of your video needs.
Video Reference Series technologies that come standard:
Precision Video Scaling IIT
10-bit Scaling with Enhanced Sharpness Control
RightRate™
High-Performance Framerate Conversion
AutoCUE-C™
Automatic Chroma Upsampling Error detection & correction
Precision AV LipSync™
intelligent digital audio delay technology to match Audio & Video timing
AutoVFR™
Intelligent Component Video Inputs with Automatic Video Format Routing
Video Reference Series technology that is optional:
Precision Deinterlacing™
10-bit Motion, Edge & Source-Adaptive Deinterlacing of 480i/576i
- Five-field motion adaptive deinterlacing
- Edge adaptive processing for smooth diagonal edges
- Three frame video processing delay (Max)
- Game Modes with very low latency
Motion and Source Adaptive Video Deinterlacing
NTSC (3:2 and 2:2 pulldown; video) and PAL/SECAM (2:2 pulldown; video) sources
Analog HD Transcoding and Processing
All video signals can be output over a single video output, either analog or HDMI
4 HDMI inputs
Process up to 1080i-60 input signals
Flexible Input and Output Aspect Ratio Controls
Display Profiles User-defined memories (10) for multiple display, framerate, and image shift
configurations
10-bit, 300 MHz Instrumentation Quality DACs (2x Oversampling for 1080p)
Full-frame Timebase Correction
High performance, multi-standard video decoder (10-bit: 480i/576i; 12-bit:
480p/576p/720p/1080i)
High-quality super-adaptive comb filter with 2D Y/C separation
Flexible Digital and Analog Audio switching and routing - 4 HDMI audio/video inputs, 5
assignable audio inputs (4 digital, 1 analog) with 1 HDMI audio/video output and 2 active digital
audio outputs.
Software Upgradeable
Technical Specifications
Input Aspect Ratio Controls
- Presets: 4:3 full frame, 4:3 letterbox, Panorama (non-linear stretch), 16:9 full
frame or user defined aspect ratio (10)
- Flexible Horizontal and Vertical Zooming (up to 2x) & Panning Controls
- Overscan Adjustment per input
Output Aspect Ratio Controls
- Presets: 4:3, 16:9, 2.35:1, or custom aspect ratio
- Separate Display/Screen Adjustments
- Underscan Adjustment to address Overscan inherent in a display
Picture Controls
- Fully programmable controls with non-volatile memories
- Each input has an individual memory for each processed format
- Brightness, Contrast, Saturation, Hue, Sharpness, and Fine Y/C Delay (sub-pixel)
Operation
- Intuitive On Screen Display
- Easy to read 2 line, 20 character Backlit Front Panel Display
- Front Panel Controls

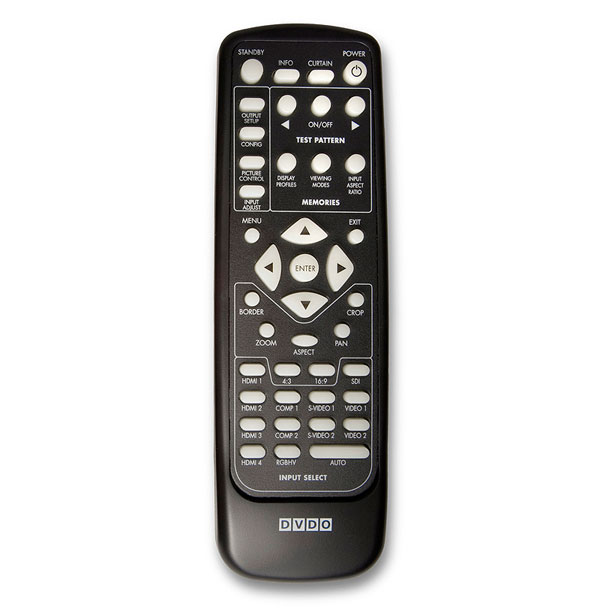

- IR Remote Control (discrete codes available)
- Automation via RS232 port
Output Controls
- Output Resolution
- Sync Type
- Colorspace (RGB or YPbPr/YCbCr)
- Frame Rate (Locked/Unlocked)
- Gamma
- Display Profiles (10)
35 Built-in test patterns
Software Upgradeable via Serial Port
Miscellaneous
Power
- Universal AC mains input: 100 - 240 VAC @ 50 - 60 Hz
- Consumption < 45W
- Sleep mode - automatic 30 second timeout indicated by power LED turning off
Physical Dimensions
- 10.4"x17"x2.2" (26.3cmx43.4cmx5.5cm) with feet
- 10.4"x17"x1.8" (26.3cmx43.4cmx4.6cm) without feet
- Standard 19" 1U 1.75" Rackmount available
Weight
- Shipping - 10.5 lb (4.8 kg)
- Unit without Power Supply - 6.4 lb (2.9 kg)
Predefined Output Resolutions for Plasma, DLP, LCD, LCOS and CRT-based displays
Digital Television Standards
480p, 576p, 720p, 1080i, 1080p-50/60
PC Standards
VGA, SVGA, XGA, SXGA
Plasma Resolutions
852x480, 1024x768, 1024x1024, 1280x768, 1360x768 (2), 1365x768, 1366x768 (2), 1920x1080
DLP Resolutions
1280x720, 1024x576, 848x600, 1920x1080
LCOS Resolutions
1400x1050, 1365x1024, 1400x788, 1920x1080
CRT Resolutions
1280x960, 1440x960, 1440x1152
User Customizable Output Resolution from VGA (6400x480) to 1080p (1920x1080)
|

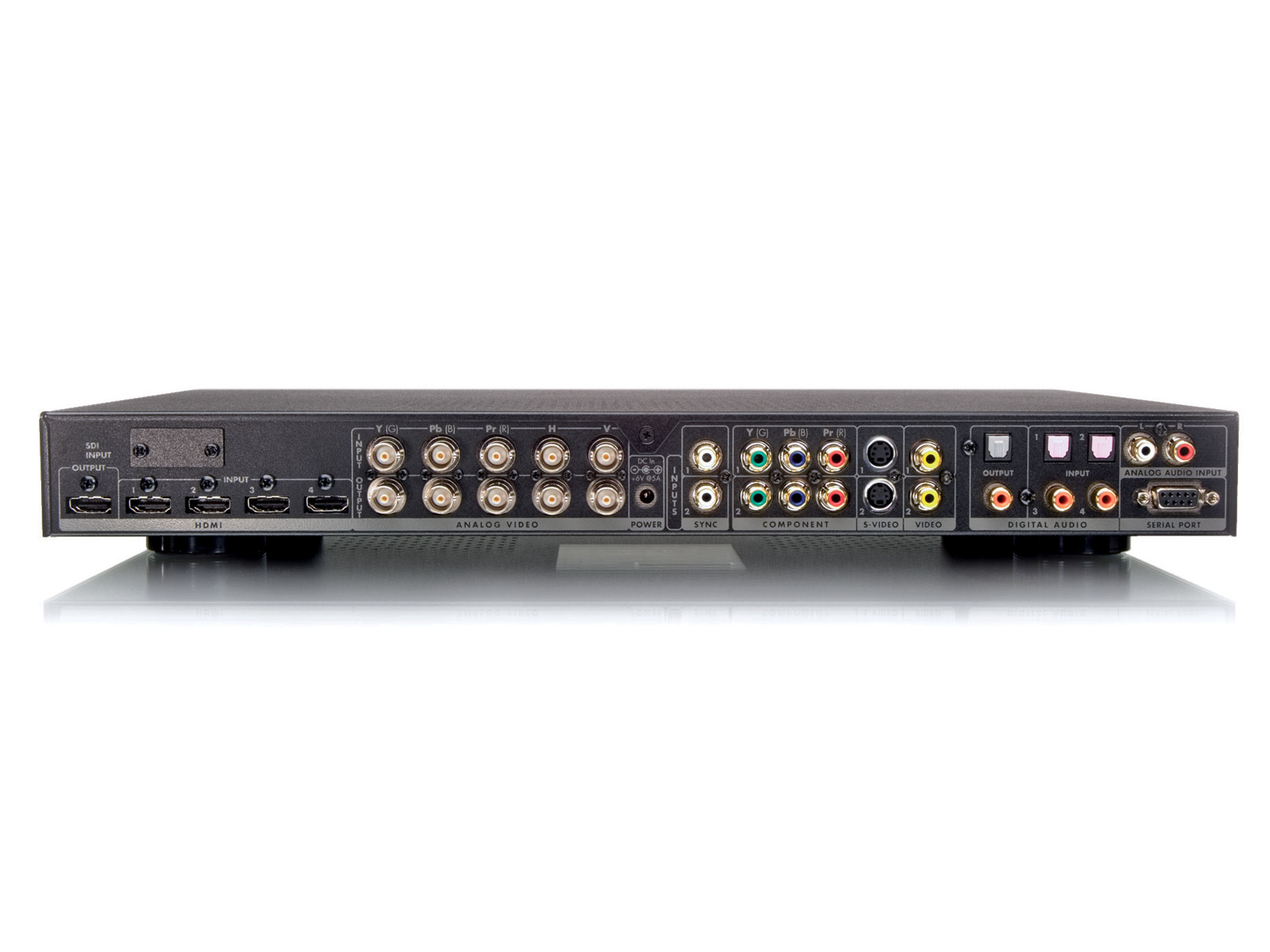

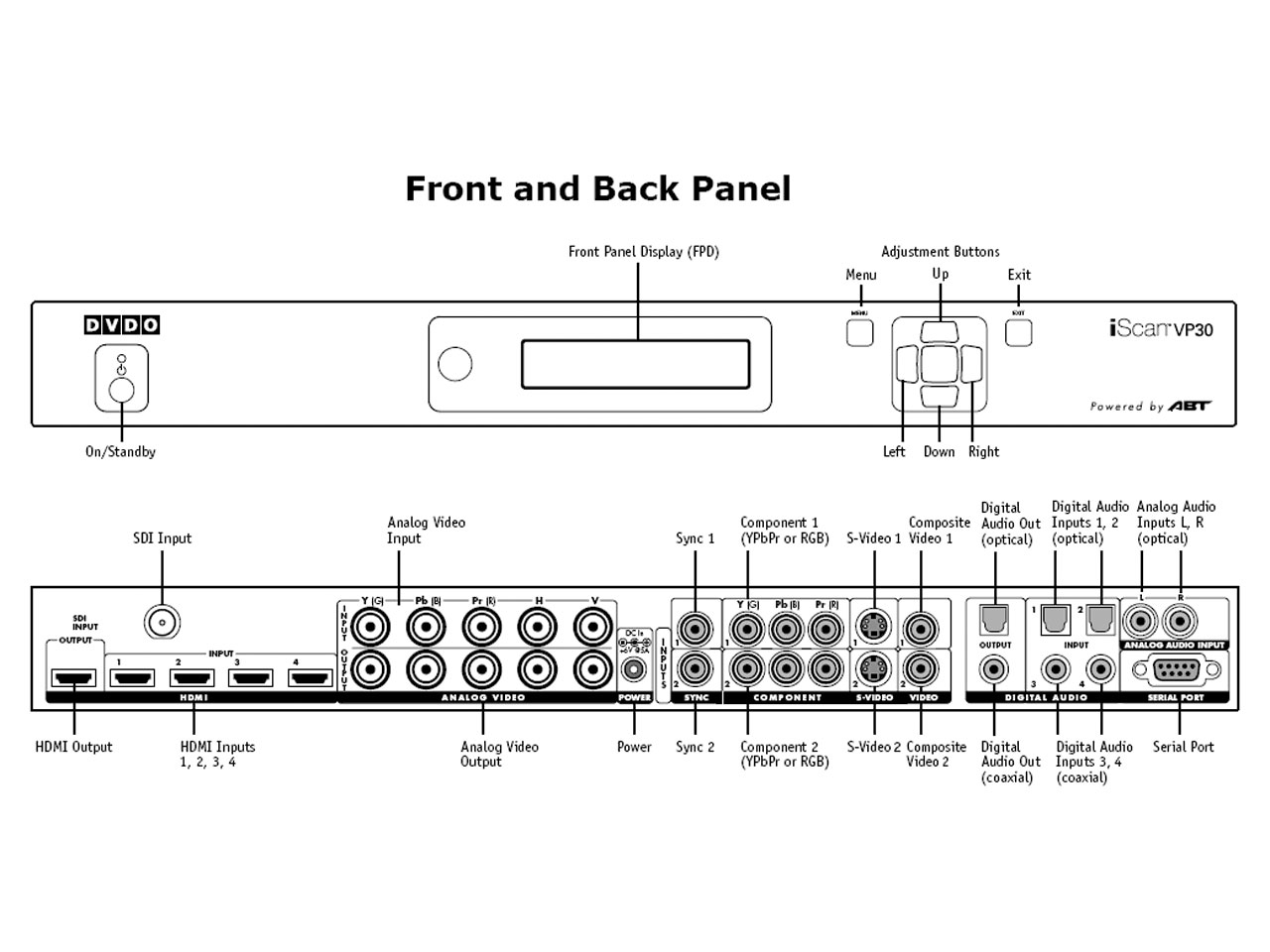

Inputs
Twelve Video Inputs
- 2 Composite (NTSC/PAL/SECAM)
- 2 S-Video (NTSC/PAL/SECAM)
- 2 Component (YPbPr or RGB/S) processes 480i/p-60, 576i/p-50, 720p-50/60, 1080i-50/60
- 4 HDMI (RGB or YCbCr) processes 480i/p-60, 576i/p-50, 720p-50/60, 1080i-50/60,
VGA-SXGA@60Hz
- 1 SD-SDI (Serial Digital Interface) Optional processes 480i-60, 576i-50
Nine Audio Inputs
- 4 HDMI
- 2 Assignable Coaxial Digital
- 2 Assignable Optical Digital
- 1 Assignable Analog Pair (L/R)
Outputs
One Analog Video Output
- Using High Quality BNC-style connectors
- Configurable for YPbPr, RGBHV, RGB/S, or RGB
One HDMI Output
- Audio/Video Output
- Configurable for YPbPr or RGB
- Also carries digital audio
Two Digital Audio Outputs (Simultaneously Active)
- One Coaxial Digital
- One Optical Digital
|
