Audio Authority C-1024A
IR Converter for Bose LS 20, 25, 30, 40 and 50 Systems
Audio Authority C-1024A IR Converter for Bose LS 20, 25, 30, 40 and 50 Systems
The simple, yet sophisticated,
C-1024A allows Bose Lifestyle systems to respond to the same universal IR remote control as the other audio or video
components in your system. The C-1024A can be used with the Logitech Harmony 800 (or higher), Philips Pronto,
or any universal remote that can accept Pronto-style CCF files or raw hex codes.
While the C-1024A is not designed for all Bose systems, it does work very elegantly with the legacy Bose music center (LIFESTYLE 20, 25 and 30) and the MRI (LIFESTYLE 40 and 50).
Its small size makes it easy to hide behind a TV or in a cabinet, with only the small IR sensor exposed in the front where it will receive the IR remote commands. The serial cable that is included makes for a simple installation.
Like most Audio Authority products, the C-1024A comes with a one year limited warranty from the manufacturer. The B-Stock Unit also comes with a one year limited warranty.
Audio Authority's Description
IR Converter for Bose LS 20, 25, 30, 40 and 50 Systems
Model C-1024A
Enables IR commands issued by a compatible remote control to operate some Bose LifeStyle systems.
The C-1024A makes it possible for multiple sound and video components to respond to the IR commands issued by a single Pronto® or Harmony 880 or greater learning remote control.
Small enough to be easily hidden, the C-1024A is designed for placement behind the TV in the home theater room. Only the small IR sensor remains visible near the front of the TV where it receives the remote control commands.
System control is achieved through a serial jack connection into the rear panel of the LIFESTYLE® system.
The C-1024 communicates with the Bose® music center LIFESTYLE® 20, 25 and 30) or the MRI (LIFESTYLE® 40 and 50).
This product does not operate any Bose® systems other than those listed.
Carton Contents:
- Model C-1024A
- Serial data cable
- IR sensor
- Power pack
Product Dimensions: 5 x 2.5 x 1.1 (LWH, inches)
Downloads
- Product Focus Sheet: C-1024A IR to Bose Serial Converter (.pdf)
- Model C-1024A User Manual
- IR Codes Download (CCF file, works with most universal remotes) [links to AAC website]
- Raw Hex Codes Download (XLS file) [links to AAC website]
- Find in Harmony's Database under "Amplifier" > "AV Switch" category.

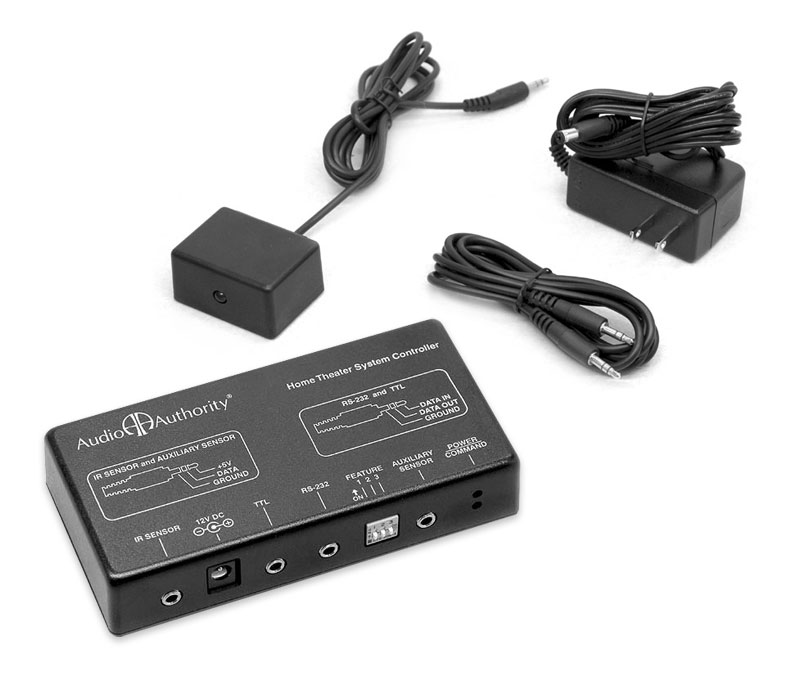

Shown here are the included items - the serial data cable, IR sensor, power supply and the unit itself

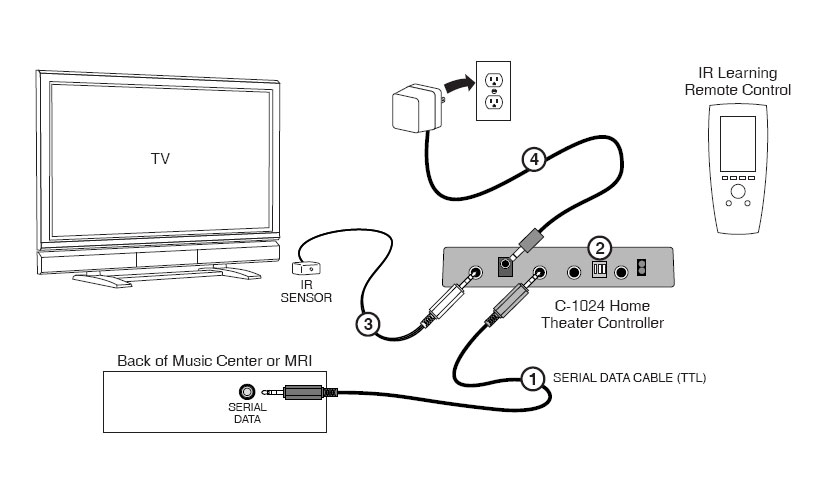

A connection example is worth a 1000 words.
Here
is the product focus sheet. Click to download PDF.
The user manual can be viewed in PDF format.
