Liberty AV 24-4P-P-L6ASH Category 6A F/UTP EN Series 23 AWG 4-Pair Shielded Cable

Liberty AV 24-4P-P-L6ASH-WHT Category 6A F/UTP EN Series 23 AWG 4-Pair Shielded Cable

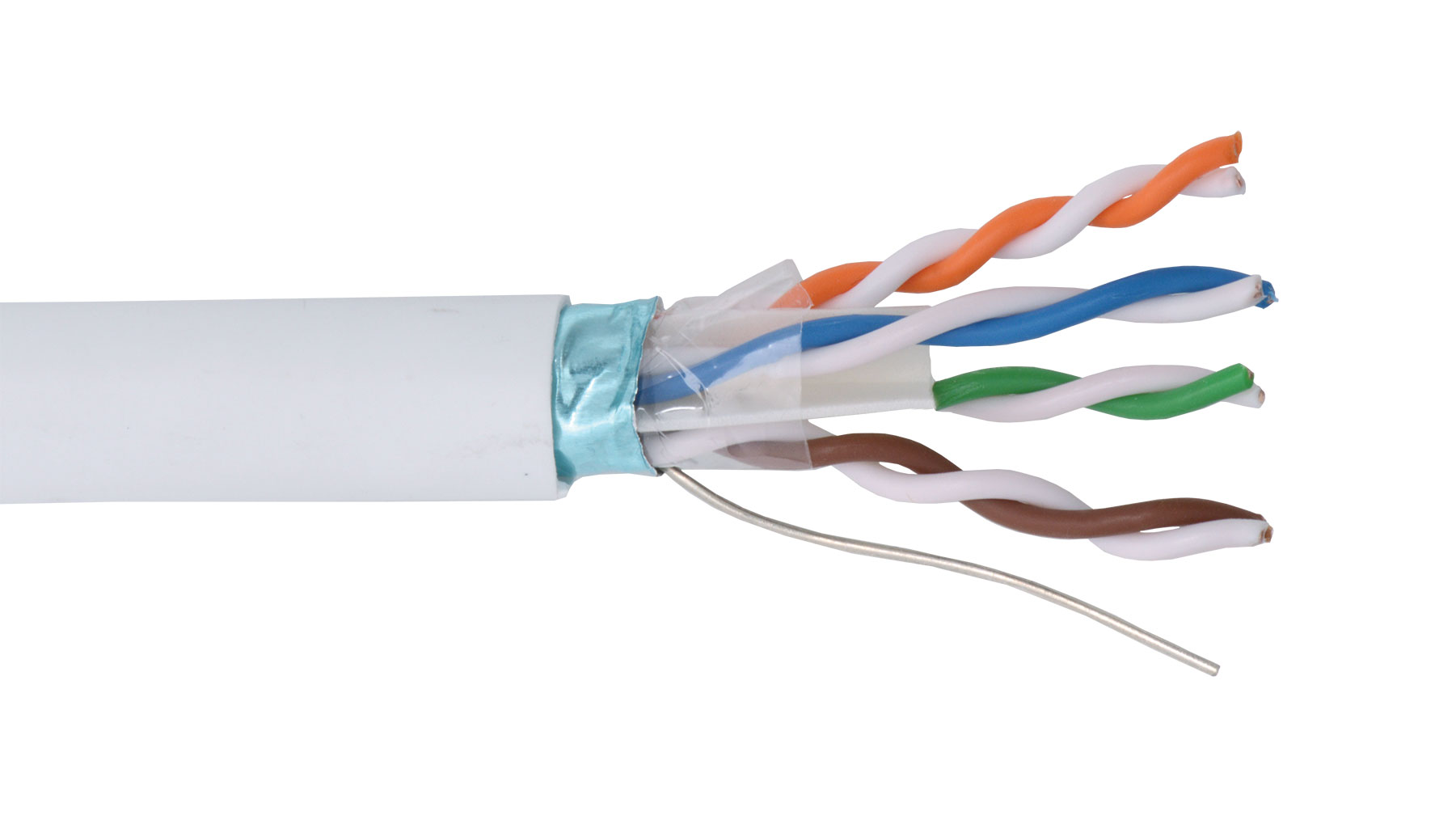

Liberty AV 24-4P-P-L6ASH Category 6A F/UTP EN Series 23 AWG 4-Pair Shielded Cable, shown here with white jacket

Liberty AV Solutions
24-4P-P-L6ASH is a 4 pair 23 AWG solid, twisted, and shielded Cat-6a cable.

Each pair is insulated with  FEP dielectric, with internal geometry maintained by a fluoropolymer separator interstice.  An aluminum/polyester tape foil and 24 AWG tinned copper drain wire provide 100 percent shield coverage.

Housed in a 0.290" plenum-rated PVC jacket, available in white, as shown, or in blue, by special order.

Ideal for LAN systems at 10/100/1000BaseT and 10GBaseT, including plenum phone, voice, video over IP and security video, balun support and media infrastructure, as well as infrared and audio applications.  Range is up to 300 feet for LAN applications and 2500 feet for passive baluns.

NEC type CMP and CEC type CMP FT6. Third party verified to ANSI/TIA-568C Category 6A performance. Product manufactured compliant to the requirements of UL444 for installations and applications in accordance with NEC articles 725 and 800.

These part numbers / colors are typically in stock and ready for immediate shipment:

  • 24-4P-P-L6ASH-WHT - White

These part numbers / colors are special order and typically require an extra 10 days lead time:

  • 24-4P-P-L6ASH-BLU - Blue



Available in standard reels or Cool Spool boxes in 1000 or 500 foot lengths.

Liberty AV's Description

Liberty AV 24-4P-P-L6ASH Category 6A F/UTP EN Series 23 AWG 4-Pair Shielded Cable

Features and Benefits

  • 23 AWG Solid Bare Copper Conductors
  • FEP, Fluorinated Ethylene Propylene (Teflon(TM))
  • Varying lay twisted pairs cabled on a common axis
  • 100% Foil shield with foil and drain facing in
  • Ripcord under the jacket
  • PL-PVC, Plenum rated Polyvinyl Chloride Alloy Jacket
  • Third Party (UL, ETL) certified to Category 6A performance NEC Rated CMP, CEC Rated CMP, CMG FT6, RoHS Compliant
  • 1000 Foot Spools Standard

Applications

  • Plenum Horizontal LAN 10/100/1000/10GBaseT Networking
  • Balun Infrastructure, Voice, Voice over IP cabling
  • Video, Audio, InfraRed, IP Control, PoE, HDBaseT
  • Analog and Digital Multimedia Extension and routing
Liberty AV 24-4P-P-L6ASH Category 6A F/UTP EN Series 23 AWG 4-Pair Shielded Cable, Spec Sheet, PDF

Here is the Spec Sheet, in PDF format.

Liberty AV Cool Spool system

This flyer describes the optional Cool Spool system.

Pricing and Configuration Options
Product Description Base SKU MSRP Your Price
Liberty AV Category 6A F/UTP EN series 23 AWG 4 pair shielded cable, 1000 foot 24-4P-P-L6ASH $1485.00 $1336.50
Liberty AV Category 6A F/UTP EN series 23 AWG 4 pair shielded cable, 500 foot 24-4P-P-L6ASH-500 $742.50 $668.25
Option Description Select Options
Jacket Color
Spool Length
Packaging
Quantity
SSL Secure Site Logo
Purchase Information
Product Description SKU MSRP Your Price Quantity
Liberty AV Category 6A F/UTP EN series 23 AWG 4 pair shielded cable, 1000 foot reel 24-4P-P-L6ASH-WHT $1485.00 $1336.50
