Liberty AV 24-4P-L6-EN-DB Category 6 U/UTP
EN Series 23 AWG 4-Pair Unshielded
Direct Burial Cable

Liberty AV 24-4P-L6-EN-DB Category 6 U/UTP EN Series 23 AWG 4-Pair Unshielded Direct Burial Cable

Liberty AV 24-4P-L6-EN-DB Category 6 U/UTP EN Series 23 AWG 4-Pair Unshielded Riser Cable, shown here with blue jacket

Liberty AV Solutions
24-4P-L6-EN-DB is a 4 pair 23 AWG solid, unshielded twisted-pair (UTP) Cat-6 Direct-Burial-rated cable.

Each pair is insulated with a PE dielectric, with internal geometry maintained by a PE X separator.  The internal interstices are flooded with a water-repellant silicone gel compound.

Housed in a 0.250" UV-stabilized black PE jacket, this cable is suitable for outdoor use as well as direct-burial applications. Available with black jacket, only.

This  rugged direct-burial Cat-6 cable is ideal for LAN systems at 10/100/1000BaseT, including phone, voice, video over IP and security video, balun support and media infrastructure, as well as infrared and audio applications.  Range is up to 300 feet for LAN applications and 2500 feet for passive baluns.

Sunlight Resistant and Suitable for Direct Burial. Third party verified to ANSI/TIA-568C Category 6 performance. Product manufactured compliant to the requirements of UL444 for installations and applications in accordance with NEC articles 725 and 800.

These part numbers / colors are typically in stock and ready for immediate shipment:

  • 24-4P-L6-EN-DB - Black

Available in standard reels or Cool Spool boxes in 1000 or 500 foot lengths.

Liberty AV's Description

Liberty AV 24-4P-L6-EN Category 6 U/UTP EN series 23 AWG
4 pair unshielded cable


Features and Benefits

  • 23 AWG Annealed Bare Copper Conductors
  • HDPE, High Density Polyethylene Insulation
  • Twisted pairs in varying lays and cabled together
  • Flooding compound for water rejection
  • UV Stabilized Polyethylene outer jacket
  • Suitable for Direct Burial, Sunlight Resistant, RoHS
  • ANSI/TIA/EIA-568-C Verified to Category 6
  • 1000 Foot Spools Standard

Applications

  • Outdoor Horizontal LAN 10/100/1000BaseT Networking
  • Balun Infrastructure, Voice, Voice over IP cabling
  • Video, Audio, InfraRed, IP Control, Security and Control
  • PoE, HDBaseT, Analog and Digital Multimedia

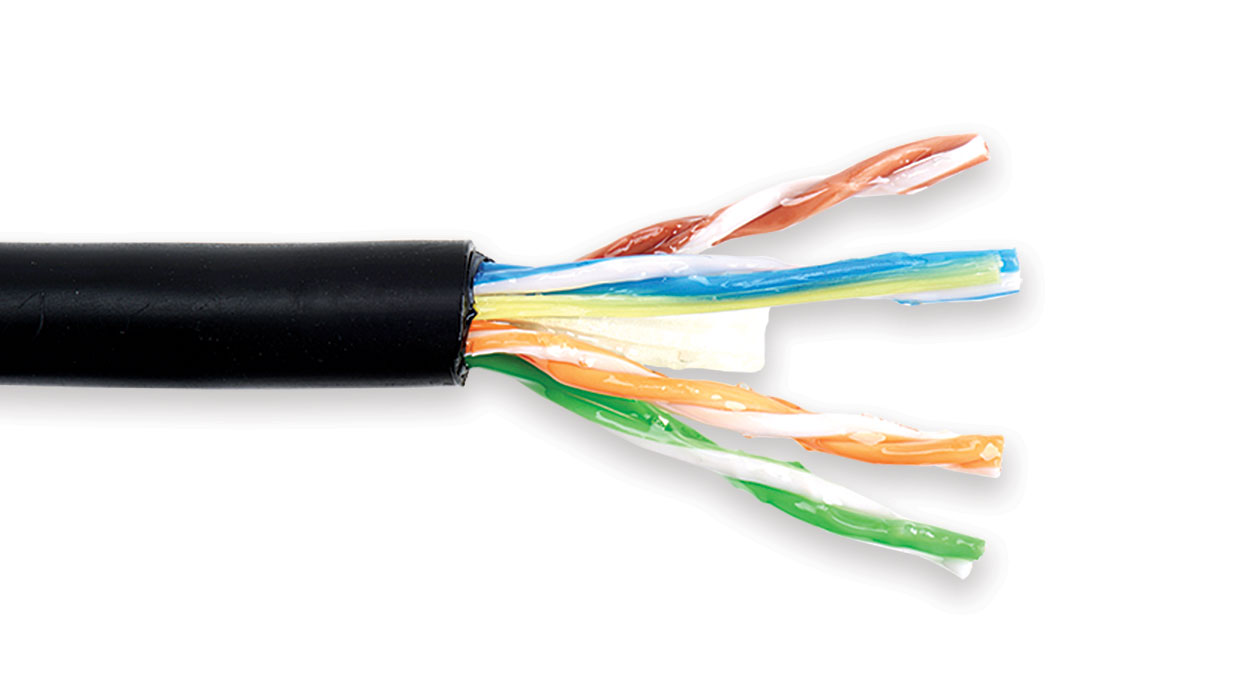

Liberty AV 24-4P-L6-EN Category 6 U/UTP Unshielded Direct Burial Cable, end view

This end view shows the
24-4P-L6-EN-DB Cat-6 cable construction in greater detail.

Liberty AV 24-4P-L6-EN-DB Category 6 U/UTP EN Series 23 AWG 4-Pair Unshielded Direct-Burial Cable, Spec Sheet, PDF

Here is the Spec Sheet, in PDF format.

Liberty AV Cool Spool system

This flyer describes the optional Cool Spool system.

Pricing and Configuration Options
Product Description Base SKU MSRP Your Price
Liberty AV Category 6 U/UTP EN series 23 AWG 4 pair Unshielded Cable, Direct Burial
1000 foot
24-4P-L6-EN-DB $852.00 $800.88
Liberty AV Category 6 U/UTP EN series 23 AWG 4 pair Unshielded Cable, Direct Burial
500 foot
24-4P-L6-EN-DB-500 $426.00 $400.44
Option Description Select Options
Jacket Color
Spool Length
Packaging
Quantity
