The VGA-HR-F transmits / receives VGA Video signals up
to 350 feet over a single CAT 5 type cable. This professional-grade
VGA-HR-F active balun / extender delivers crisp video at
resolutions up to 1600 x 1200, making it an ideal solution for corporate A/V,
schools, churches, auditoriums, as well as for discriminating individuals -
just about any situation that involves video distribution.
These units are sold in matching transmitter/receiver
pairs, as shown.
The Intelix VGA-HR-F may be used stand-alone, or may also be rack-mounted
by using an optional
rack-mount
kit.
Like most Intelix products, the VGA-HR-F comes with a
two year limited warranty from the
manufacturer.
Intelix's Description
Sold in pairs, the Intelix VGA-HR-F balun transmits
UXGA (1600 x 1200) resolution video up to 350 feet over
structured cabling, such as regular Cat 5. The VGA-HR-F
features custom dipswitch adjustment, allowing you to
eliminate color skew, bleed, and ghosting--problems
frequently associated with extended distance VGA
distribution.
|
Introducing Intelix's new line of VGA
Cat 5 baluns.
As long as boardrooms present visual data and
churches project hymnal lyrics, Intelix will
continue providing the technology which makes
VGA distribution possible--inexpensively and
effectively.
Introducing the VGA-HR, a new revolutionary
balun which will forever change the way VGA is
routed over
Cat 5 cabling.
The Intelix VGA-HR active VGA balun allows
UXGA (1600 x 1200 pixel) signals to be
transmitted up to 350 feet using standard Cat 5
unshielded twisted pair cabling.
Features include:
- Up to 350 feet transmission (UXGA: 1600x
1200)
- RF Shielded metal casing
- Custom color skew adjustment
- Bandwidth up to 350 MHz
- Small, easily-mountable packaging
- Includes send balun, receive balun, 5VDC
power supply, and six foot VGA M-F jumper
cable
| Technical Specifications |
| Max Distance |
350 feet |
| Max Resolution |
UXGA (1600 x 1200) |
| Video Amplifier Bandwidth |
350 MHz |
| Actual Bandwidth |
120 MHz |
| Power |
5 VDC; system powered through send balun |
| Power Consumption |
1 amp |
| Focus |
25 to 450 feet |
| Input Video Signal |
1.2 Vp-p Cable Cat 5, Cat 5e, Cat 6, and Cat 7 compatible |
| Send Device Connectors |
One (1) male HD15 to one (1) RJ45; mini-DIN jack for power |
| Receive Device Connectors |
One (1) female HD15 to one (1) RJ45 |
| Enclosure |
RF shielded metal |
| Dimensions |
1.9" x 1.6" x 3.5" |
| Shipping
Weight |
2.0 lbs. |
| Temperature |
Operating: 32 to 131 degrees F
Storage: -4 to 185 degrees F
Humidity: up to 95% |
| Warranty |
2 years |
| Part # |
VGA-HR-F: pair of VGA-HR-F baluns |
| Included Accessories |
6' VGA cable, power supply |
|
|
Design with Intelix and Design with Intelligence
|
Additional Information
These units may be rack mounted by using the optional
DIN mounting tray and clips. Please
click here for
more information.
Why Cable Solutions?
Customer service is our first priority. We do
our best to help you find the best solutions for your
particular application. We're enthusiasts too, so
we know what it's like to wait for cables and
accessories that are needed to hook up new gear.
We also know how important it is to be able to get a
response when you need help, so you'll often find us
working long hours in an effort to get you the answers
that you need.
Design excellence, high quality materials, meticulous
workmanship, and superior service...put it all together
and you get a superior product. Don't get stuck
with bad advice, poor service, slow shipment or an
inferior product. If you want the best, here it
is.
Miscellaneous
Please click here to read
our policies and disclaimer. Thanks for reading
all of this!
|
Click on any of the
pictures below for a closer view!

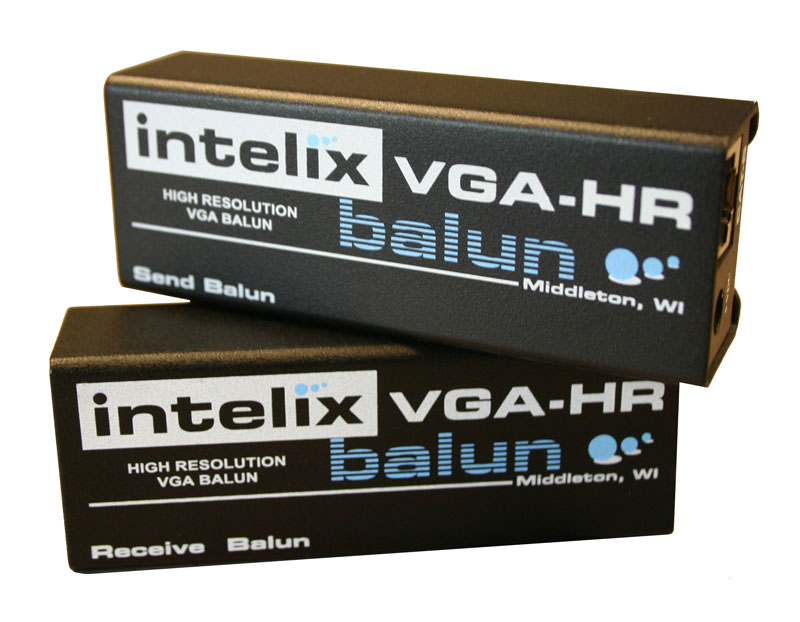

Intelix VGA-HR-F Cat-5 Balun Set

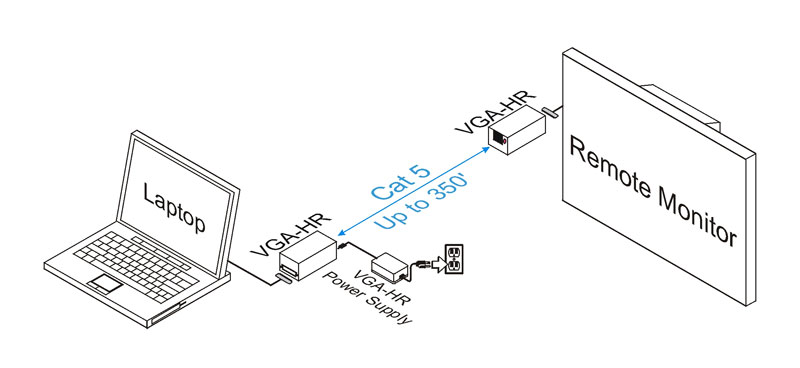

In this connection example the
VGA-HR-F is used to connect a laptop computer to a
remote monitor.
Here is the Installation Manual in
PDF format.
