The Intelix HDDA-8-F Distribution Amplifier has
plenty of bandwidth to handle all HDTV component video
resolutions, including 1080p, but this capable 1x8 DA

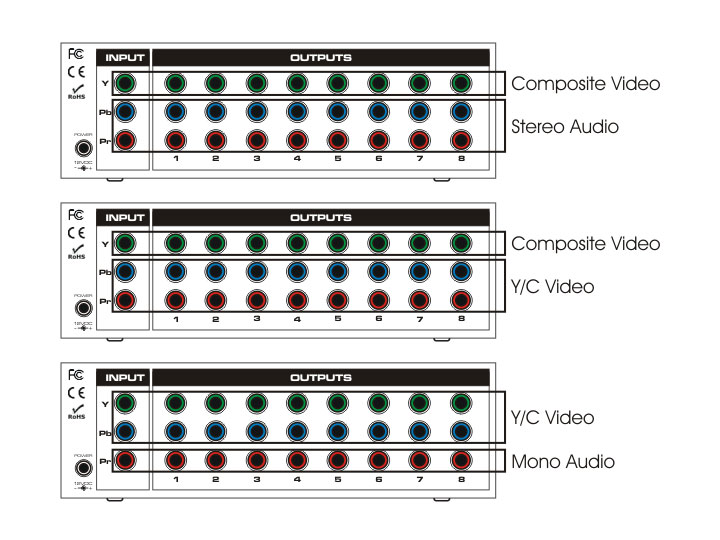

can also handle multiple video, and audiophile-quality
audio, as well as mixed A/V applications, like these:
- Composite video and stereo audio
- Composite Video and Y/C video
- Y/V Video and mono audio
For even greater versatility, multiple HDDA-8-F units
may be linked together to create a larger distribution
system.
Like most Intelix products, the HDDA-8-F comes with a
two year limited warranty from the
manufacturer.
Intelix's Description
The Intelix HDDA-8-F is an affordable 1 input by 8
output high-definition component video (YPbPr)
distribution amplifier.
Ideal for whole home audio/video, restaurant and bar,
transportation, and commercial audio/video applications,
the HDDA-8-F features female RCA connectors and supports
high-definition 1080i/1080p resolutions. Multiple
HDDA-8-F amplifiers may be linked when more than eight
outputs are required.
In addition to component video, the HDDA-8-F supports
composite video, Y/C video, and professional-level 20 Hz
to 20 kHz stereo audio. The HDDA-8-F is compatible with
Intelix audio/video over Cat 5 baluns.
| Technical Specifications |
| Voltage
Requirement |
12 VDC |
| Current
Requirement |
500 mA maximum |
| Power |
DC |
| Maximum
Output Range (without a secondary balun) |
150 feet |
| Maximum
Output Range (with a secondary balun) |
Dependent on the
balun's distance limitations |
|
High-definition Compatible |
1080i, 1080p, 780i,
780p, 480i, 480p compatible |
| Signal
bandwidth |
300 MHz |
| Shipping
Weight |
2 lbs. |
| Enclosure |
Black metal |
| Dimensions |
7.75" x 2.40" x 2.40" |
| Input
Connectors |
Three (3) female
gold-plated RCA (1 YPbPr) |
| Output
Connectors |
Twenty-four (24) female
gold-plated RCA (8 YPbPr) |
| Audio
Frequency Response |
20 Hz to 20 kHz |
| Audio
Crosstalk |
Better than -65 dB |
| Diagnostic |
Red power LED on front
panel |
| Linkable |
Yes |
| Intelix Part
# |
HDDA-8-F |
| Regulatory |
CE, FCC, RoHS, UL |
| Included
Accessories |
(1) 12 VDC power
supply |
| Warranty |
2 years |
|
|
Design with Intelix and Design with Intelligence
|
Why Cable Solutions?
Customer service is our first priority. We do
our best to help you find the best solutions for your
particular application. We're enthusiasts too, so
we know what it's like to wait for cables and
accessories that are needed to hook up new gear.
We also know how important it is to be able to get a
response when you need help, so you'll often find us
working long hours in an effort to get you the answers
that you need.
Design excellence, high quality materials, meticulous
workmanship, and superior service...put it all together
and you get a superior product. Don't get stuck
with bad advice, poor service, slow shipment or an
inferior product. If you want the best, here it
is.
Miscellaneous
Please click here to read
our policies and disclaimer. Thanks for reading
all of this!
|
Click on any of the
pictures below for a closer view!

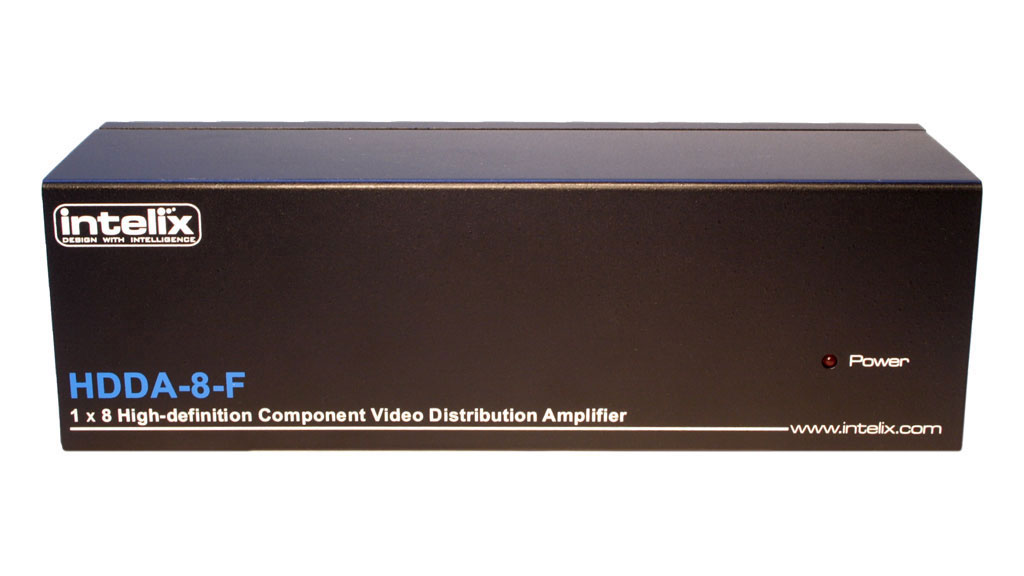

Intelix HDDA-8-F Distribution
Amplifier

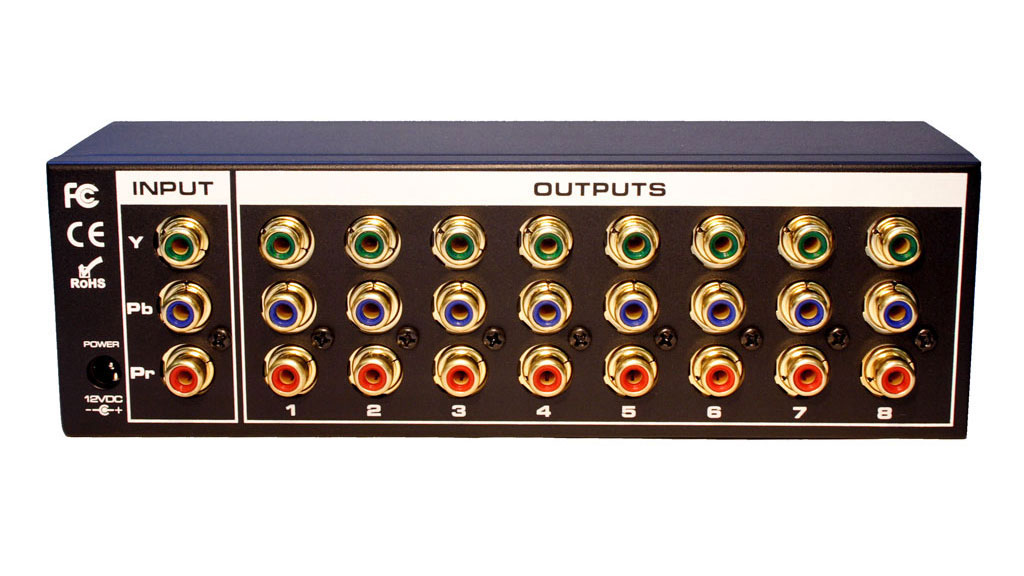

Here is a good look at the rear
panel.

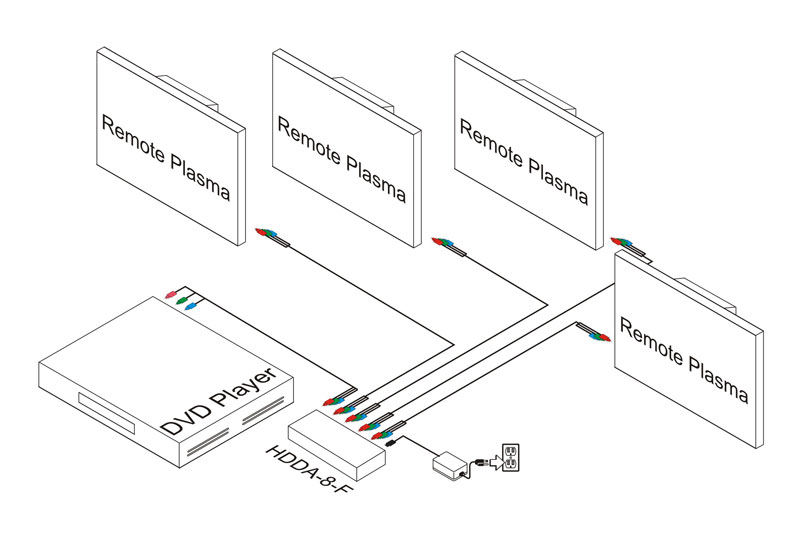

In this connection example,
component video from a DVD is routed to four outputs via
the Intelix HDDA-8-F. The HDDA-8-F splits and amplifies
the signals. The unit is powered locally.
The HDDA-8-F supports composite
video, Y/C video, and professional-level 20 Hz to 20 kHz
stereo audio. The HDDA-8-F is compatible with Intelix
audio/video over Cat 5 baluns.
Here is the Installation Manual in
PDF format.
