Intelix Flex Matrix Distribution System FLEX-8X8A
Card and Cage Modular Plug and Play

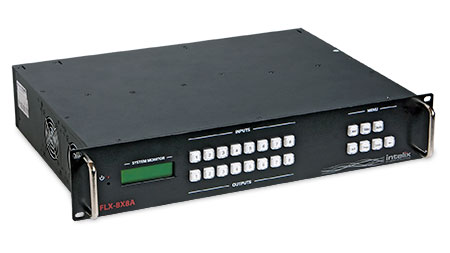

Intelix FLX-8X8A Flex Matrix Distribution System
The Intelix FLEX-8X8A has been been replaced by an all-new series of Flexible Matrix Systems. Please click the links below to see the new models:
* FLX-88
* FLX-1616
* FLX-3232
The following information is presented for information purposes only:
FLX-8X8 card and cage chassis can accommodate up to four modular expansion cards. Cards are available to handle HDMI, DVI, VGA, Y/Pb/Pr component video, and/or HDBaseT inputs, and output card choices include HDMI, DVI, and HDBaseT, so it is possible to use this matrix system to drive both local as well as remote zone outputs via twisted-pair cabling.
In addition to the expansion cards, whole-premise audio capabilities are built right in.
Twisted-pair receivers are sold separately below, so you can get exactly the functionality you need. Use any combination of receivers, up to a total of two receivers (add to your cart below):
- DIGI-HDE-R Enclosed HDBaseT Receiver - HDMI, HDMI audio, bi-directional IR and RS-232, up to 70 meters (225 feet) via one twisted-pair cable
- DIGI-HD60C-R Enclosed HDBaseT Receiver - HDMI, HDMI audio, bi-direction IR and RS-232, up to 60 meters (195 feet) via one twisted-pair cable
- DIGI-HD60-R Enclosed HDBaseT Receiver - HDMI, HDMI audio up to 70 meters (225 feet) via one twisted-pair cable
As with virtually all systems that are based upon twisted-pair cable technology, the Intelix Flex Matrix Distribution System will work with virtually any twisted-pair cables, including Cat-5e and Cat-6, but range and system bandwidth are directly related to both distance and cable quality, so to get the highest resolutions at the greatest distances, you will want high-quality, low-skew cables. Check the installation manual for more information. If you want the very best pre-terminated cables, please consider our VideoTwist cables.
Like most Intelix products, the FLX-8X8A comes with a two year limited warranty from the manufacturer.
Now Shipping!
Intelix's Description
Intelix Digital FLEX Matrix
part numbers: FLEX-8X8A
Features
- 8x8 frame size (2RU)
- Plug and play I/O cards
- Two input slots and two output slots
- Any input type to any output type
- Built-in 8x8 balanced stereo audio switcher
- Audio-follow-video or audio breakaway modes
- RS232, IR, Ethernet and front panel control
- Built-in EDID management
Available Modules
- FLX -HI4: 4 port HDMI input card
- FLX -DI4: 4 port DVI input card
- FLX -RI4: 4 port VGA, YPbPr, SV & CV input card
- FLX -BI4: 4 port HDBaseT input card
- FLX -HO4: 4 port HDMI output card
- FLX -DO4: 4 port DVI output card
- FLX -BO4: 4 port HDBaseT output card
Downloads
The Flex Matrix's modular input and output feature are shown in this back view.

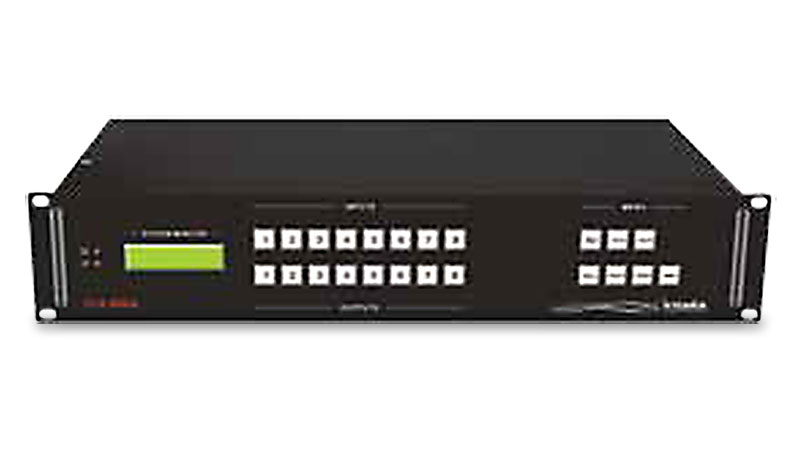

Here is a closer look at the FLX-8X8A front panel.

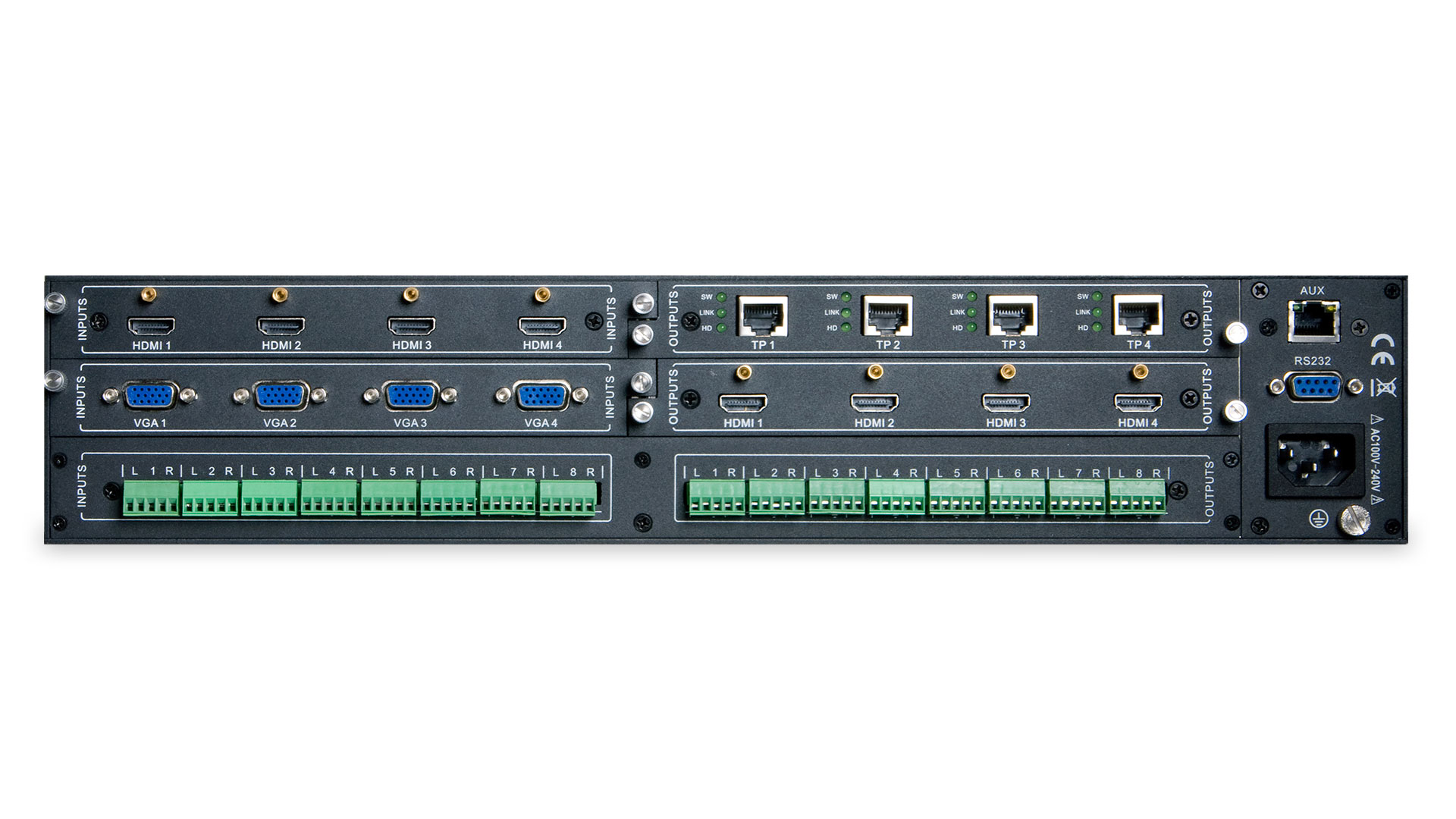

Here is a closer looks at the back panel.
Shown in this rendering are the four input card options, from top to bottom:
* FLX-HI4 - HDMI
* FLX-DI4 - DVI
* FLX-VGA - VGA, YPbPr, S-Video,
Composite Video
* HDBaseT
This rendering shows the three output card options, from top to bottom:
* FLX-HO4 - HDMI
* FLX-DO4 - DVI
* HDBaseT
