Intelix FLX-3232 Flex Matrix Distribution System

32x32, Card and Cage, Modular, Plug and Play

Intelix FLX-3232 Flex Matrix Distribution System

Intelix FLX-3232 32x32 Flex Matrix Distribution System

Introducing the Intelix Flex Matrix System.  The FLX-3232 card and cage chassis can accommodate up to 16 modular expansion cards.  Cards are available to handle HDMI, DVI, VGA, RGB, Y/Pb/Pr component video, and/or HDBaseT inputs, while output card choices include HDMI, DVI, and HDBaseT, so it is possible to use this matrix system to drive both local as well as remote zone outputs.  Use standard UTP twisted-pair cabling, such as Cat-6 to connect remote zones via the HDBaseT protocol.

Twisted-pair receivers are sold separately below, so you can get exactly the functionality you need.  Use any combination of receivers, up to a total of 32 receivers (add to your cart below):

  • DIGI-HDE-R Enclosed HDBaseT Receiver - HDMI, HDMI audio, bi-directional IR and RS-232, up to 70 meters (225 feet) via one twisted-pair cable
  • DIGI-HD60C-R Enclosed HDBaseT Receiver - HDMI, HDMI audio, bi-direction IR and RS-232, up to 60 meters (195 feet) via one twisted-pair cable
  • DIGI-HD60-R Enclosed HDBaseT Receiver - HDMI, HDMI audio up to 70 meters (225 feet) via one twisted-pair cable

With built-in switching, scaling, format conversion, audio embedding and native ability to connect to remote zones via HDBaseT, the FLX-3232 can route any type of input to any type of output.  Control via front panel push-buttons, the included IR remote, or connect to third-party control systems via RS-232.  With so much flexibility and functionality built right in, the FLX-3232 makes it possible to replace a whole rack full of traditional A/V distribution gear with a single, elegant 3RU system.  Please read this flyer for more details.

As with virtually all systems that are based upon twisted-pair cable technology, the Intelix Flex Matrix Distribution System will work with virtually any twisted-pair cables, including Cat-5e and Cat-6, but range and system bandwidth are directly related to both distance and cable quality, so to get the highest resolutions at the greatest distances, you will want high-quality, low-skew cables. Check the installation manual for more information. If you want the very best pre-terminated cables, please consider our VideoTwist cables.

Like most Intelix products, the FLX-3232 comes with a two year limited warranty from the manufacturer.

Intelix's Description

Flexible Card-Based Matrix Switcher - 32 Input x 32 Output

part number: FLX-3232

Features and Benefits

  • Plug and play card-based design allows user to select between HDBaseT, HDMI, and DVI-D inputs and outputs
  • VGA input cards are available
  • Any input type to any output type (VGA - input only)
  • 200ms internal switching time - viewable switching times will vary according to destination devices
  • RS232, IR, and TCP/IP control
  • HDMI and HDCP compliant

Applications

  • HDBaseT, HDMI, DVI-D, and VGA signal switching and routing
  • Extend 1080p up to 229 feet with FLX-BI4 and DIGI-HD60-R (video and audio) or DIGI-HDE (video, audio and control) or up to 195 feet using the DIGI-HD60C-R (video, audio, and control)
  • Ideal for digital signage, corporate facilities, churches, schools, conference centers, and any other facility that requires high definition multimedia distribution

Technical Specifications

I/O Connections

Supported Input Cards: FLX-BI4, FLX-DI4, FLX-HI4, FLX-RI4, FLX-HI4A
Supported Output Cards: FLX-BO4, FLX-DO4, FLX-HO4, FLX-BO4A, FLX-HO4A
Input and Output Card Securing Mechanism: Thumbscrew
Control, Rear Panel: RS232 via DE-9, TCP/IP via 8P8C Connector
Control, Front Panel: Push Button, IR

Chassis and Environmental

Material: Black Painted Aluminum
Dimensions: 483mm x 356mm x 222mm (19 in. x 14 in. x 8.75 in.)
Rack Spacing: 5 RU
Shipping Weight: 9.98 kg (22 lbs.)
Operating Temperature: 0° to +40° C (+32° to +104° F)
Operating Humidity: 20% to 90%, Non-condensing
Storage Temperature: -10° to +60° C (+14° to +140° F)
Storage Humidity: 20% to 90%, Non-condensing

Power, ESD, and Regulatory

Power Supply: 100-240VAC 50/60 Hz
Power Consumption: 280 watts Fully Populated
ESD Protection: 15kV
Regulatory: CE, RoHS

Other

Warranty: 2 years
Diagnostic Indicators: LCD output status and power LED
Included Accessories: Installation Guide, IR Remote, RS232 Cable, Power Cable, Modular Metal Blank (4 ea), Rubber Feet (4 ea) and Intelix Pocket Screwdriver.

Distances and picture quality may be affected by cable grade, cable quality, source and destination equipment, RF and electrical interference, and cable patches. Intelix specifications are based on straight-through cabling with standard-grade Cat 5e unless noted otherwise.

Available Input Modules

  • FLX -HI4A: 4 port HDMI input card with analog stereo to digital audio conversion and HDMI embedding
  • FLX -DI4: 4 port DVI input card
  • FLX -RI4: 4 port VGA-UXGA, RGBHV, RGsB, RsGsBs, YPbPr Component Video, S-Video, and Composite input card with individual scaling engines for each input
  • FLX -BI4: 4 port HDBaseT input card

Available Input Modules

  • FLX -HO4A: 4 port HDMI output card with HDMI digital audio de-embedding and analog stereo conversion
  • FLX -DO4: 4 port DVI output card
  • FLX -BO4A: 4 port HDBaseT output card

Downloads

Product Flyer (PDF)
Technical Specifications (PDF)
Installation Manual (PDF)
Intelix FLX-3232 Matrix Distribution System, front-right

Here is the front of the FLX-3232 from another angle.

Intelix FLX-3232 Matrix Distribuion System, back panel

This view of the back panel shows the FLX-3232 Matrix Distribution System with optional FLX-4A and FLX-BI4 input cards as well as FLX-HO4A and FLX-BO4 output cards installed.  I/O cards are sold separately - add to your cart below.

Intelix Flex Matrix Distribution System, input cards

Shown in this picture are the four input card options, from top to bottom:

* FLX-HI4A - HDMI w/stereo audio
  conversion / imbedding
* FLX-DI4 - DVI
* FLX-VGA - VGA, YPbPr,  S-Video,
   composite video, each with scaling
* HDBaseT w/RS232, bi-directional IR

Intelix Flex Matrix Distribution System, output cards

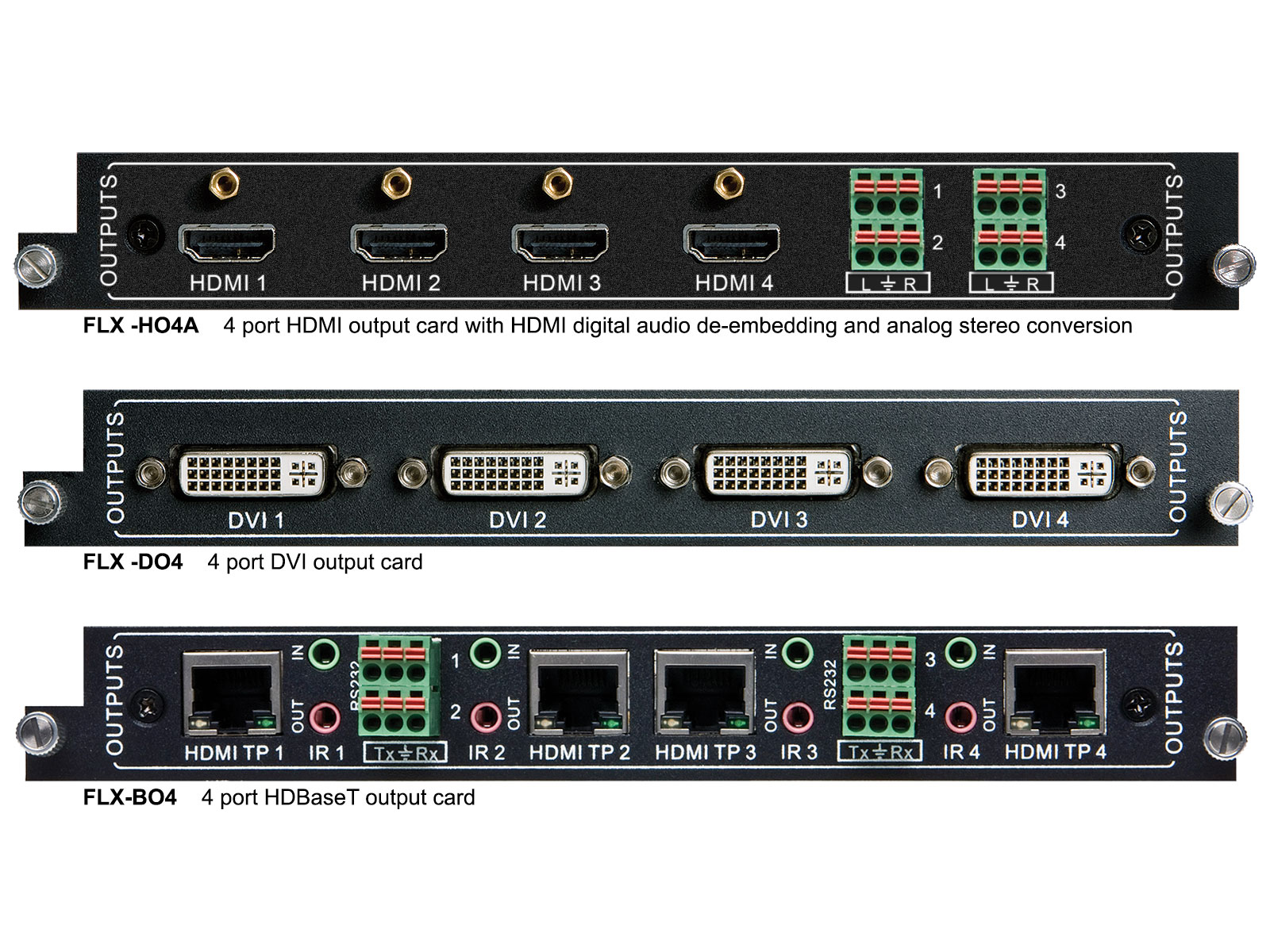

This image shows the three output card options, from top to bottom:

* FLX-HO4 - HDMI w/digital audio
   de-embedding and analog stereo
   audio conversion
* FLX-DO4 - DVI
* HDBaseT

Intelix Flex Matrix Distribution System Flyer - Click to download PDF

The Flex Matrix Flyer reveals additional details about this highly flexible matrix distribution system. PDF format.

Intelix Flex Matrix Distribution System Tech Specs - PDF

Here are the Tech Specs. PDF.

Intelix FLX-3232 Flex Matrix Distribution System, Installation Manual - PDF

This is the FLX-3232 Installation Manual and Operation Guide, in PDF format.

Configure / Purchase (Add to Cart to see configured pricing)
Product Description SKU MSRP Your Price Quantity
Intelix 32x32 Flex Matrix Distribution System FLX-3232 $20,699.95 $14,475.71
Intelix 4 port HDMI input card FLX-HI4 $880.95 $748.81
Intelix 4 port DVI input card   FLX-DI4 $880.95 $748.81
Intelix 4 port RGB, YUV, SV, YC, CV scaling input card FLX-RI4 $2886.95 $2453.91
Intelix 4 port HDBaseT input card FLX-BI4 $2782.95 $2365.51
Intelix 4 port HDMI output card FLX-HO4 $880.95 $748.81
Intelix 4 port DVI output card   FLX-DO4 $880.95 $748.81
Intelix 4 port HDBaseT output card FLX-BO4 $2782.95 $2365.51
Intelix HDBaseT Receiver -
HDMI Video/Audio, IR and RS232 up to 70 meters (229 feet)
DIGI-HDE-R $411.95 $329.56
Intelix HDBaseT Receiver -
HDMI Video/Audio, IR and RS232 up to 60 meters (195 feet)
DIGI-HD60C-R $249.95 $224.96
Intelix HDBaseT HDMI Receiver -
HDMI Video/Audio up to 70 meters (229 feet)
DIGI-HD60-R $315.95 $252.76
