The Intelix DIGI-V3SD VGA, Audio, IR/RS232 Balun Set can transmit high-resolution Component Video,
as well as stereo audio and IR/RS232 signals up to 1000 feet over a single Cat 5 or Cat 6 cable.
To take advantage of the IR feature (instead of RS232), add the optional
DIGI-VGASD-IREYE IR Receiver and DIGI-VGASD-IREMT
IR Emitter.
As with virtually all systems that are based upon Cat 5/6 cable technology, the Intelix DIGI-V3SD system
will work with virtually any Cat-type cabling, including Cat 5 and Cat 6, but range and/or bandwidth is
directly related to both distance and cable quality, so to get the highest resolutions at the greatest distance,
you will want high-quality cables.
Like most Intelix products, the DIGI-V3SD comes with a two-year limited warranty.
Intelix's Description
|
Tired of pulling multiple cables? Fed up with long, bulky cable runs?
Simplify with Intelix DIGI-V3SD extenders.
Each DIGI-V3SD transmits component video, stereo audio, IR and RS232 up to 1,000 feet over a
single twisted pair cable. Plus, built-in skew correction ensures perfect 1080i, 720p, 480i, and
480p video every time.
No matter the application, the SD Series has you covered.
| Technical Specifications |
| Maximum Distance |
1,000 feet |
| Supported Signals |
YPbPr, Y/C, composite video, stereo audio, IR, RS232 |
| Supported Resolutions |
1080i, 720p, 480i, 480p |
| Video Bandwidth |
300 MHz |
| Audio Frequency Response |
20 Hz to 20 kHz |
| Send Unit Connectors |
(3) RCA: video, (2) RCA: audio, (1) 1/8” mini: IR, (1) DB9: RS232 |
| Receive Unit Connectors |
(3) RCA: video, (2) RCA: audio, (1) 1/8” mini: IR, (1) DB9: RS232 |
| Operating Humidity Range |
5 to 90% non-condensing |
| Operating Temperature Range |
-41 to 95 degrees F -5 to 35 degrees C |
| Enclosure |
Metal |
| Max Distance of AV Cables |
6 feet |
| Skew Adjustment |
Front panel (R,G,B) trim pots on the receive unit |
| Control |
IR and bi-directional RS232 |
| IR Direction |
From destination to source |
| Power |
5 VDC |
| Diagnostic |
Power LED |
| Regulatory |
CE, RoHS |
| Shipping Weight |
5.0 lbs |
| Dimensions |
5.25”x 3.38” x 1.00” |
| Intelix Part Number |
DIGI-V3SD |
| Included Accessories |
(2) 5 VDC power supplies |
| Warranty |
2 years |
|
|
*Note: the DIGI-V3SD transmits IR or RS232, not both simultaneously. RS232 takes precedence over
IR.
|
Why Cable Solutions?
No one works harder than we do to get your order shipped out to you fast! On business days, orders that
are funded by noon will ship the same day. Orders funded on weekends or holidays will ship the next business
day.
Cable Solutions is an Intelix Authorized Reseller, so our customers get the full benefit of Intelix's
factory-direct support and warranty.
Customer service is our first priority. We do our best to help you find the best solutions for
your particular application. We're enthusiasts too, so we know what it's like to wait for cables and
accessories that are needed to hook up new gear. We also know how important it is to be able to get
a response when you need help, so you'll often find us working long hours in an effort to get you the answers
that you need.
Design excellence, high quality materials, meticulous workmanship, and superior service...put it all
together and you get a superior product. Don't get stuck with bad advice, poor service, slow shipment
or an inferior product. If you want the best, here it is.
Miscellaneous
Please click here to read our policies and disclaimer. Thanks for reading
all of this!
|
Click on any of the pictures below for a closer view!

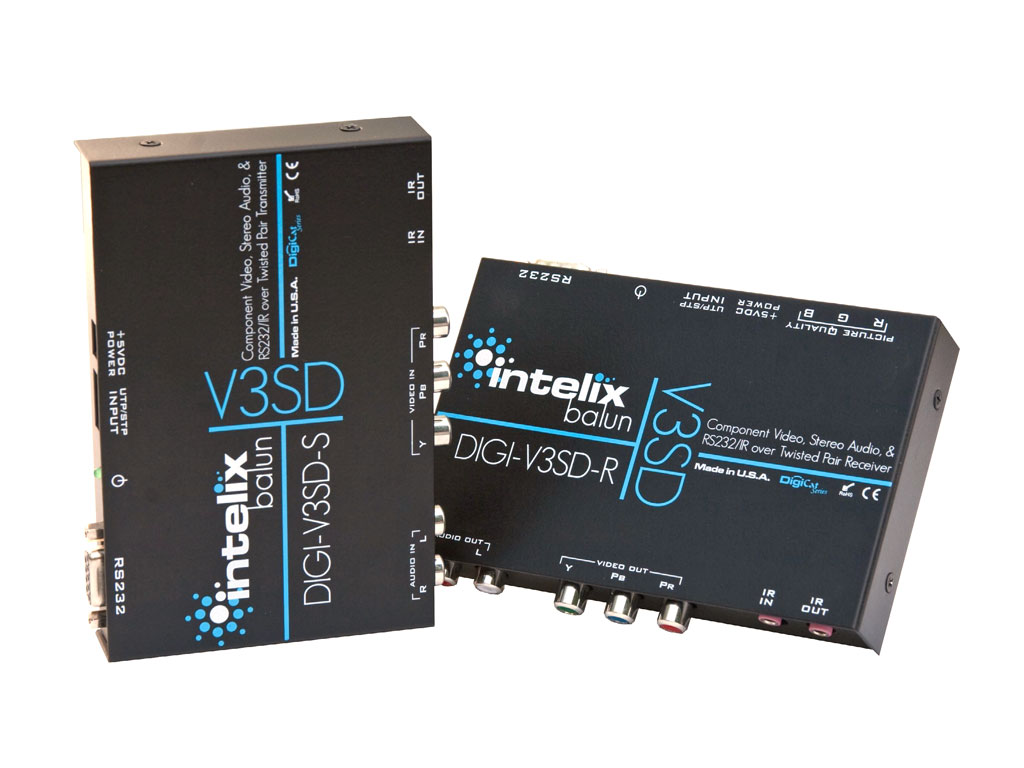

Intelix DIGI-V3SD Component Video, Audio, IR/RS232 Balun Set

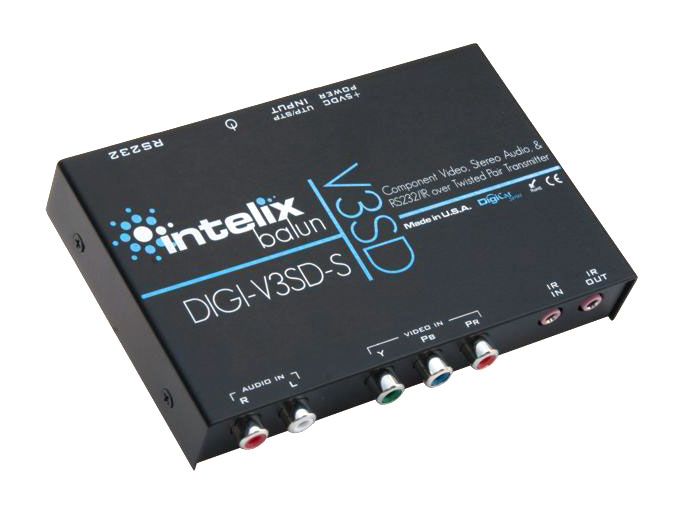

Here is a closer look at the included DIGI-V3SD-S send balun

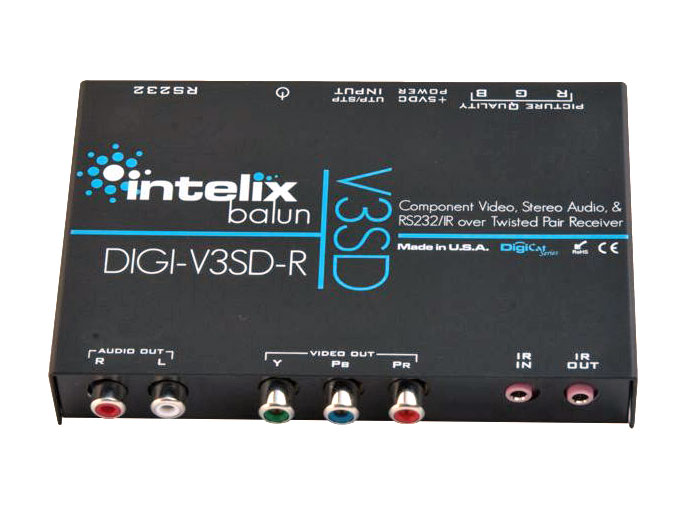

This picture shows the included DIGI-V3SD-R receive balun in greater detail.
Here is the optional DIGI-VGASD-IREYE IR Receiver - click the image to see the product
page and/or add to your cart below.
Shown here is the optional
DIGI-VGASD-IREMT IR Emitter - click the image to see the product page and/or add to your cart below.

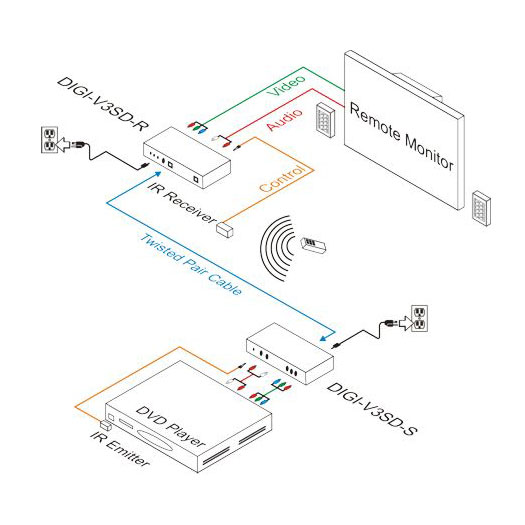

Example System: A DVD player sends component video and stereo audio
to a remote monitor via a single twisted pair cable. IR is transmitted from the remote destination to the
DVD player via the same cable.
Here is the spec sheet - click to download PDF
Here is the Installation Manual in PDF format.
