The Intelix DIGI-HDMI-UHR HDMI 1.3 over Twisted Pair
Balun Set features an active design that makes it possible
to transmit signals up up to 150 feet. Even at
1080p, the system can handle runs up to 100 feet.
As you might
expect from Intelix, the DIGI-HDMI-UHR is fully
HDCP-compliant. The system handles
HDMI v1.2 and HDMI v1.3 in an elegant manner, so
you can expect the highest signal quality. Unusual
for this price range, this system features electrostatic
discharge protection circuitry to help prevent damage to
the HDMI circuit that can occur as a result of static
electric discharges, adding an extra layer of protection
for not only the DIGI-HDMI-UHR, but for the connected
equipment as well.
For maximum convenience, the system may be powered at
either the transmitter or receiver end. In fact,
in many installations, the balun system can be powered
from the HDMI bus...which brings us to the next useful
feature: the diagnostic LEDs. For example, if the
HDMI bus is providing enough power, that will be
immediately apparent simply by observing the power LEDs
on both the transmitter and receiver units. The
handy included mounting hardware is yet another touch
that makes the Intelix balun set such an appealing
option.
Like most Intelix products, the DIGI-HDMI-UHR comes
with a two year limited warranty from the manufacturer.
Intelix's Description
DIGI-HDMI-UHR HDMI over Twisted Pair Balun
Features
- 1080i up to 150 feet
- 1080p up to 100 feet
- HDCP compliant
- Power on either the send or receive end
The Intelix DIGI-HDMI-UHR transmits a
high-definition HDMI signal up to 150 feet over
two inexpensive twisted pair cables, such as Cat
5e or Cat 6. The DIGI-HDMI-UHR supports
480i, 480p, 720p,1080i, and 1080p
high-definition video and is HDCP compliant.
Each DIGI-HDMI-UHR includes one send unit, one
receive unit, one power supply, and two mounting
brackets. The system is powered on
either the send or the receive end. Power and
status LEDs provide visual diagnostics.
The DIGI-HDMI-UHR features electrostatic
discharge (ESD) protection circuitry which
safeguards the HDMI circuit against static
electricity and other destructive stray voltage.
The Intelix DigiCat Series
of baluns is the ideal solution for sending
digital, high-performance
signals over structured cabling.
When signal quality matters, choose Intelix.
| Technical Specifications |
|
Maximum Distance*
|
480i, 480p, 720p,
1080i: 150 feet 1080p: 100 feet |
| Supported
Video Resolutions |
480i, 480p, 720p,
1080i, 1080p
8, 10, 12 bits per channel |
| Input DDC
Signal |
5.0 volts p-p (TTL) |
| Input Video
Signal |
1.2 volts p-p |
| Video
Amplifier Bandwidth |
1.65 Gbps |
| Send Unit
Connectors |
One (1) type A HDMI
connector to two (2) RJ45s |
| Receive Unit
Connectors |
Two (2) RJ45s to one
(1) type A HDMI connector |
| Power
Connector |
Powered on either the
send or receive end; side mounted
connector |
| Output Video |
HDMI 1.2/HDMI 1.3 |
| Diagnostic
Indicators |
Power and status LEDs |
| ESD
Protection |
Yes |
| Cabling |
Two unshielded
structured cabling runs required; Cat 5e
or Cat 6 recommended |
| Temperature |
Operating: 32 to 131 F
(0 to 55 C)
Storage: -4 to 185 F (-20 to 85 C)
Humidity: up to 95% |
| Dimensions |
3.25” x 1.75” x 0.88” |
| Enclosure |
Metal |
| Shipping
Weight |
1.0 lbs |
| Ordering
Information |
DIGI-HDMI-UHR: includes
one send balun, one receive balun, two
mounting brackets, and one power supply |
| Compliancy |
CE, RoHS |
| Power Supply |
External 5 VDC |
| Warranty |
Two years |
|
|
*Distances may be affected by cable grade,
cable quality, source and destination equipment,
RF and electrical interference, and cable
patches. Intelix specifications are based on
straight-through cabling.
Design with Intelix and Design with Intelligence
|
Why Cable Solutions?
Cable Solutions is an Intelix Authorized Reseller, so our customers get the full benefit of Intelix's
factory-direct support and warranty.
No one works harder than we do to get your order shipped out to you fast! On business days,
orders that are funded by noon will ship the same day. Orders funded on weekends or holidays will
ship the next business day.
Customer service is our first priority. We do our best to help you find the best solutions for
your particular application. We're enthusiasts too, so we know what it's like to wait for cables and
accessories that are needed to hook up new gear. We also know how important it is to be able to get
a response when you need help, so you'll often find us working long hours in an effort to get you the
answers that you need..
Design excellence, high quality materials, meticulous workmanship, and superior service...put it all
together and you get a superior product. Don't get stuck with bad advice, poor service, slow
shipment or an inferior product. If you want the best, here it is.
Miscellaneous
Please click here to read
our policies and disclaimer. Thanks for reading
all of this!
|
Click on any of the
pictures below for a closer view!

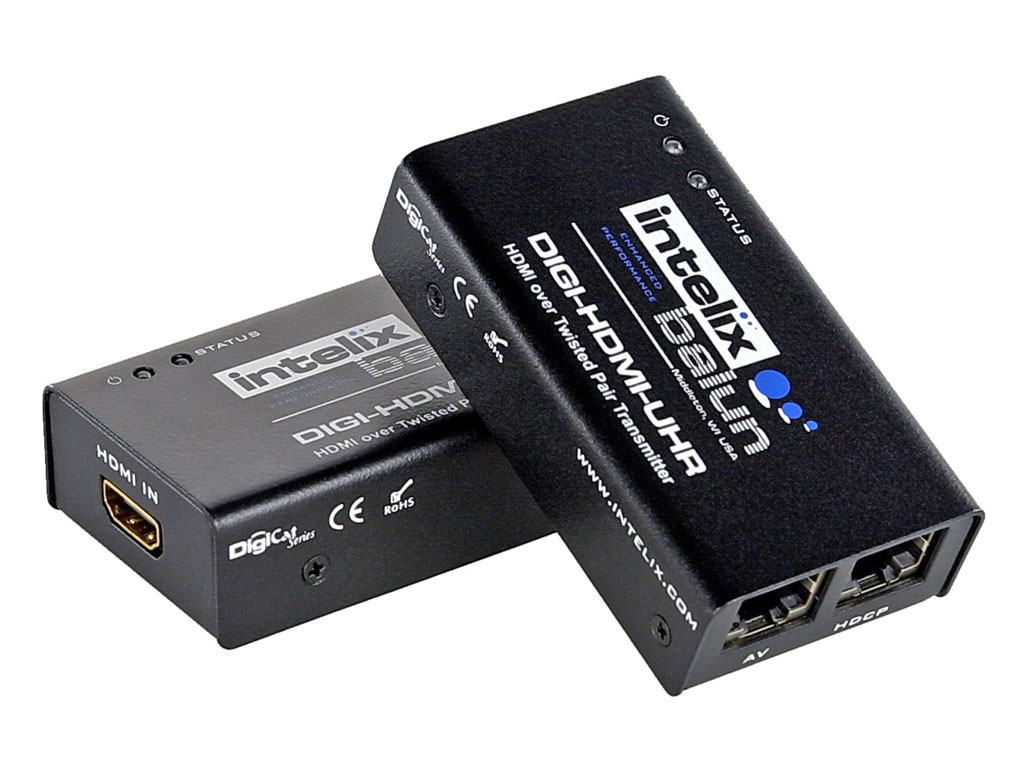

Intelix DIGI-HDMI-UHR HDMI over
Twisted Pair Balun Set

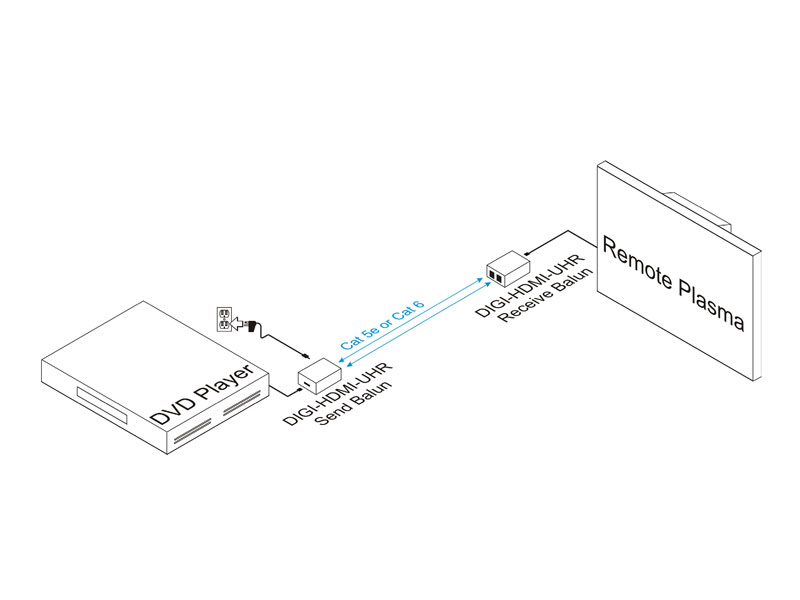

Example System: The DIGI-HDMI-UHR balun
