Notice that the Intelix HDMI Balun is designed to work with standard
unshielded CAT5 or CAT6 cable - shielded cable is not required!
Intelix's Description
The Intelix DigiCat Series of baluns is the ideal solution for
sending digital, high-performance signals over structured cabling. When
signal quality matters, choose Intelix.
|
The Intelix DIGI-HDMI-F transmits a
high-definition HDMI (high definition multimedia interface) signal up to
150 feet over two inexpensive twisted pair cables. The DIGI-HDMI-F
supports 480i, 480p, 720p and 1080i high-definition video up to 150 feet
when using standard Cat 5e cabling, and 1080p high-definition video up
to 150 feet when using standard Cat 6 cabling. The DIGI-HDMI-F balun
supports standard HDTV resolutions and is HDCP compliant. Each DIGI-HDMI-F
includes the send unit, receive unit, and power supply. The system is
powered on the destination end.
The Intelix DigiCat Series of baluns is
the ideal solution for sending digital, high-performance signals over
structured cabling. When signal quality matters, choose Intelix.
Technical
Specifications
| Maximum Distance* |
480i with Cat 5e 150 feet
480p with Cat 5e 150 feet
720p with Cat 5e 150 feet
1080i with Cat 5e 150 feet
1080p with Cat 6 150 feet |
| Supported Video Resolutions |
480i, 480p, 720p,
1080i, 1080p |
|
Input DDC Signal |
5.0 volts p-p (TTL) |
| Input Video Signal: |
1.2 volts p-p |
| Video Amplifier Bandwidth |
1.65 Gbps |
|
Send Unit Connectors |
One (1) type A HDMI
connector
to two (2) RJ45s |
|
Receive Unit Connectors |
One (1) type A HDMI
connector
to two (2) RJ45s |
|
Power Connector |
Powered on the
receive end;
side mounted connector |
| Cabling |
Two structured
cabling runs required;
Cat 5e for 480i, 480p, 720p, 1080i and
Cat 6 for 1080p |
| Temperature |
Operating: 32 to
131 F (0 to 55 C)
Storage: -4 to 185 F (-20 to 85 C)
Humidity: up to 95% |
| Dimensions |
3.25” x 1.75” x
0.88” |
| Enclosure |
Metal |
| Shipping Weight |
1.0 lbs |
| Ordering Information |
DIGI-HDMI-F: includes send balun,
receive balun, and power supply |
|
Compliancy |
CE, RoHS |
|
Power Supply |
External 5 VDC |
| Warranty |
Two years |
**Distances may be affected by cable grade, cable quality, source
and destination equipment, RF and electrical interference, and cable
patches. Intelix specifications are based on straight-through
cabling with standard-grade Cat 5e/6.
System
|
Why Cable Solutions?
Cable Solutions is an Intelix Authorized Reseller, so our customers get the full benefit of
Intelix's factory-direct support and warranty.
No one works harder
than we do to get your order shipped out to you fast! On business days,
orders that are funded by noon will ship the same day. Orders funded on
weekends or holidays will ship the next business day.
Customer service is our first priority. We do our best to help you find
the best solutions for your particular application. We're enthusiasts too,
so we know what it's like to wait for cables and accessories that are needed to
hook up new gear. We also know how important it is to be able to get a
response when you need help, so you'll often find us working long hours in an
effort to get you the answers that you need..
Design excellence, high quality materials, meticulous workmanship, and
superior service...put it all together and you get a superior product.
Don't get stuck with bad advice, poor service, slow shipment or an inferior
product. If you want the best, here it is.
Miscellaneous
Please click here to read our policies
and disclaimer. Thanks for reading all of this!
|
SKU Number DIGI-HDMI-F
MSRP: $249.95
Our Price: $237.45
Cable Solutions is an Intelix Authorized
Distributor, so our customers get the full benefit of Intelix's factory-direct support and warranty.
Click on any of the pictures below for a closer view!!

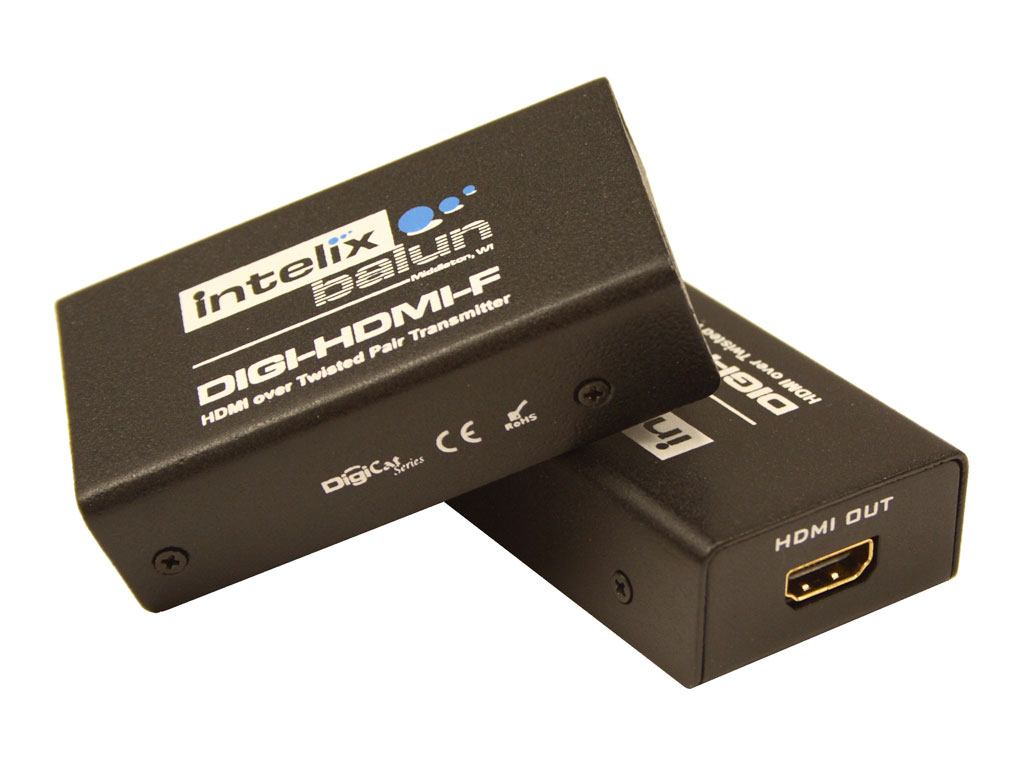

Intelix DIGI-HDMI-F HDMI Balun

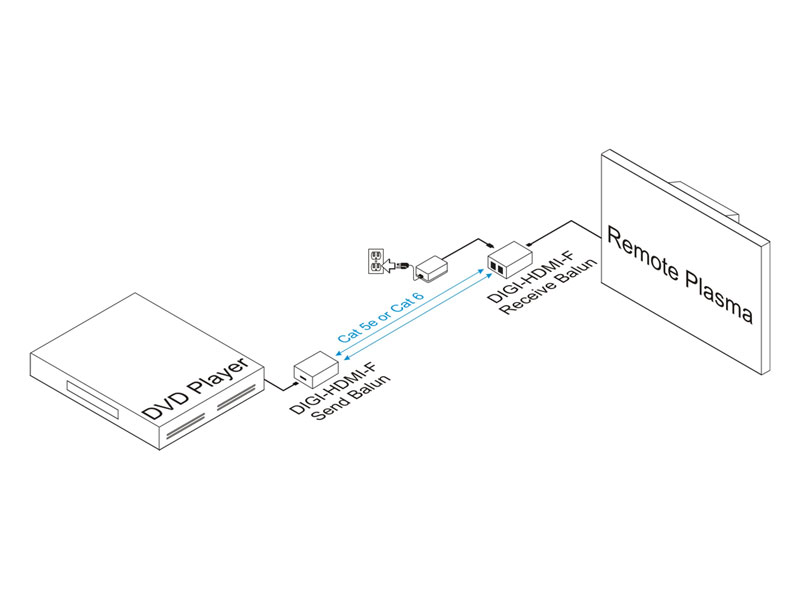

Here is a connection example.
Here is the installation manual in PDF format.
|
