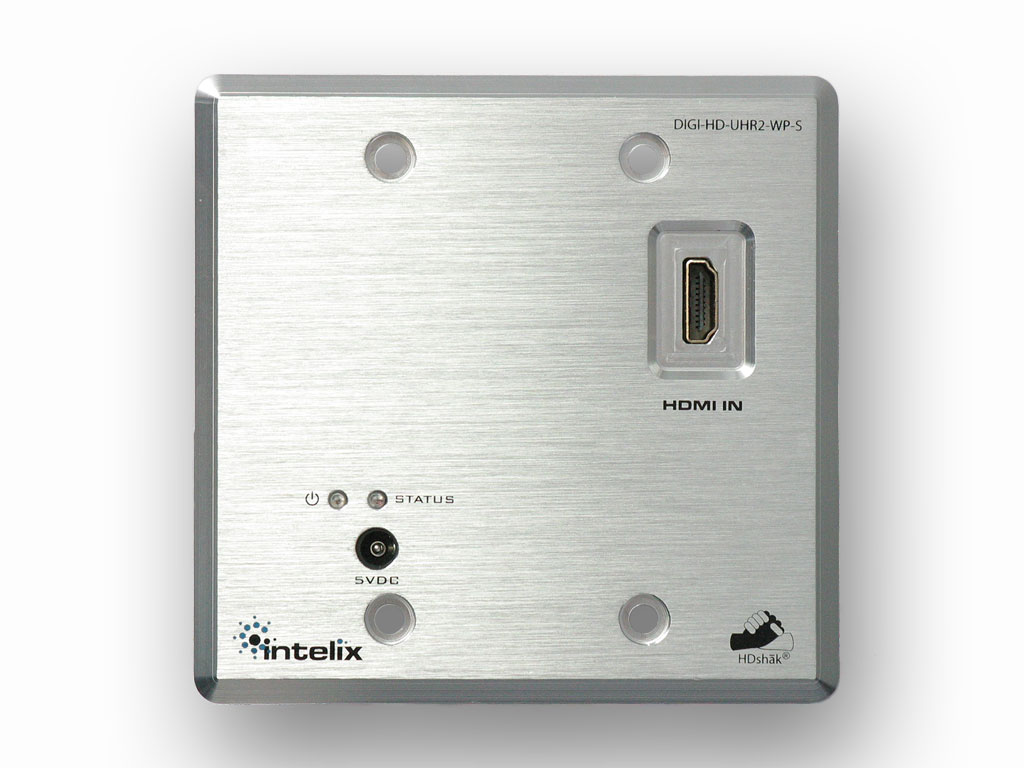

Intelix DIGI-HD-UHR2-WP-S HDMI Balun / Extender Wallplate Transmitter
High-Definition over Single Cat-5 / Cat-6 Twisted-Pair Cable
Intelix DIGI-HD-UHR2-WP-S HDMI Balun / Wallplate Extender Transmitter
High-Definition over Single Cat-5 / Cat-6 Twisted-Pair Cable
The Intelix DIGI-HD-UHR2-WP-S is a professional-grade wallplate extender which transmits HDMI to compatible receivers (listed below) up to 300 feet over a single twisted-pair cable, such as Cat-5 or Cat-6.
Built-in HDshāk® technology provides dynamic HDMI, EDID/DDC and HDCP mode selection, guaranteeing performance and image quality. Plus, onboard HDMI amplification and buffering allows multiple extenders to be daisy-chained for greater distances.
Ideal for residential A/V, commercial A/V, and digital signage applications, the DIGI-HD-UHR2-WP-S transmits 1080p video up to 150 feet, 720p or 1080i video up to 300 feet, and 480i or 480p video up to 300 feet when paired with a compatible receiver. Built-in buffering and amplification allow multiple units to be linked for greater distances, and ESD protection safeguards connected equipment from power strikes and surges.
Intelix's trademarked HDshāk processing gives the DIGI-HD-UHR2-WP-S the highest level of EDID and DDC negotiation performance, ensuring proper source and destination HDCP handshaking even over extended distances of twisted pair cabling. The unit is HDMI 1.3b and HDCP compliant.
Included in the box is the DIGI-HD-UHR2-WP-S unit itself and a power supply.
Compatible twisted-pair receivers are sold separately below, so you can get exactly the functionality you need. Use any one of the following receivers (add to your cart below):
- DIGI-HD-UHR2-R Enclosed Receiver
- DIGI-HD-UHR2-WP-R Wallplate Receiver
- DIGI-HD-XR Enclosed Receiver / Repeater - use to extend range and/or to add cascaded HDMI outputs.
As with virtually all systems that are based upon twisted-pair cable technology, the Intelix DIGI-HD-UHR2-WP-S will work with virtually any twisted-pair cables, including Cat-5e and Cat-6, but range and bandwidth are directly related to both distance and cable quality, so to get the highest resolutions at the greatest distances, you will want high-quality, low-skew cables. Check the installation manual for more information. If you want the very best pre-terminated Cat6 UTP cables, please consider our VideoTwist cables.
Like most Intelix products, the DIGI-HD-UHR2-WP-S comes with a two year limited warranty from the manufacturer.
Intelix's Description
DIGI-HD-UHR2-WP-S Balun
Based on the Intelix’s award-winning DIGI-HD-UHR2, the DIGI-HD-UHR2-WP-S is a professional-grade wallplate extender which transmits HDMI up to 300 feet over a single twisted pair cable.
Ideal for residential AV, commercial AV, and digital signage applications, the DIGI-HD-UHR2-WP-S transmits 1080p video up to 150 feet, 720p and 1080i video up to 300 feet, and 480i and 480p video up to 300 feet. Built-in buffering and amplification allow multiple units to be linked for greater distances, and ESD protection safeguards connected equipment from power strikes and surges.
The DIGI-HD-UHR2-WP-S employs Intelix trademarked HDshāk processing, which delivers the highest level of EDID and DDC negotiation, ensuring proper source and destination HDCP handshaking even over extended distances of twisted pair cabling. Features include built-in EDID tables, customizable EDID storing, and bandwidth limiting.
The DIGI-HD-UHR2-WP-S includes a transmitter and a power supply. The unit may be powered from the front via a DIN connector or on the rear with a screw down connector.
Application:
- Extending HDMI over single twisted pair cable
Features & Benefits:
- Double-Gang Extender Wallplate
- Supports multi-channel digital audio
- May be powered from front or rear
- Supports 1080p video up to 150ft over a single Cat6 STP
HDshāk Processing
Intelix HDshāk technology delivers the highest level of EDID negotiation, ensuring proper source & destination handshaking over twisted pair every time.
[please click here for details]
Documentation
In this drawing the back of the transmitter unit can be seen in greater detail.
This flyer explains how Intelix HDshāk technology ensures proper source & destination handshaking over twisted pair every time. Click to download PDF.
This is the spec sheet, in PDF format.
Here is the Installation Manual, in PDF format.
