Intelix DIGI-HD-IR3 HDMI and IR Extender Kit
HDMI v.1.3b and Bi-directional IR over Twisted-Pair Extender System
Intelix DIGI-HD-IR3 HDMI and Bi-directional IR Extender System Kit
The Intelix DIGI-HD-IR3 HDMI and IR Extender is a professional-grade system, capable of transmitting HDMI and bi-directional IR up to 300 feet over two twisted pair cables such as Cat-5 or Cat-6.
Ideal for both residential and commercial A/V, as well as digital signage applications, the
DIGI-HD-IR3 transmits 1080p video up to 150 feet and 720p / 1080i video up to 300 feet.
Intelix's built-in HDshāk® technology provides dynamic HDMI, EDID/DDC and HDCP mode selection, guaranteeing performance and image quality. This trademarked HDshāk® processing allows the DIGI-HD-IR3 to deliver the highest level of EDID and DDC negotiation, ensuring proper source and destination HDCP handshaking even over extended distances of twisted pair cabling.
In addition, the DIGI-HD-IR3 features electrostatic discharge (ESD) protection circuitry which safeguards the HDMI circuit against static electricity and other destructive stray voltage. The unit is HDMI 1.3b and HDCP compliant. High definition resolutions up to 1080p are supported, as is 3D. Supported audio formats include Dolby TrueHD 7.1, TrueHD 5.1, Digital 5.1, DTS-HD Master Audio 7.1, DTS-HD Master Audio 5.1, DTS 5.1, PCM 2.0, PCM 5.1.

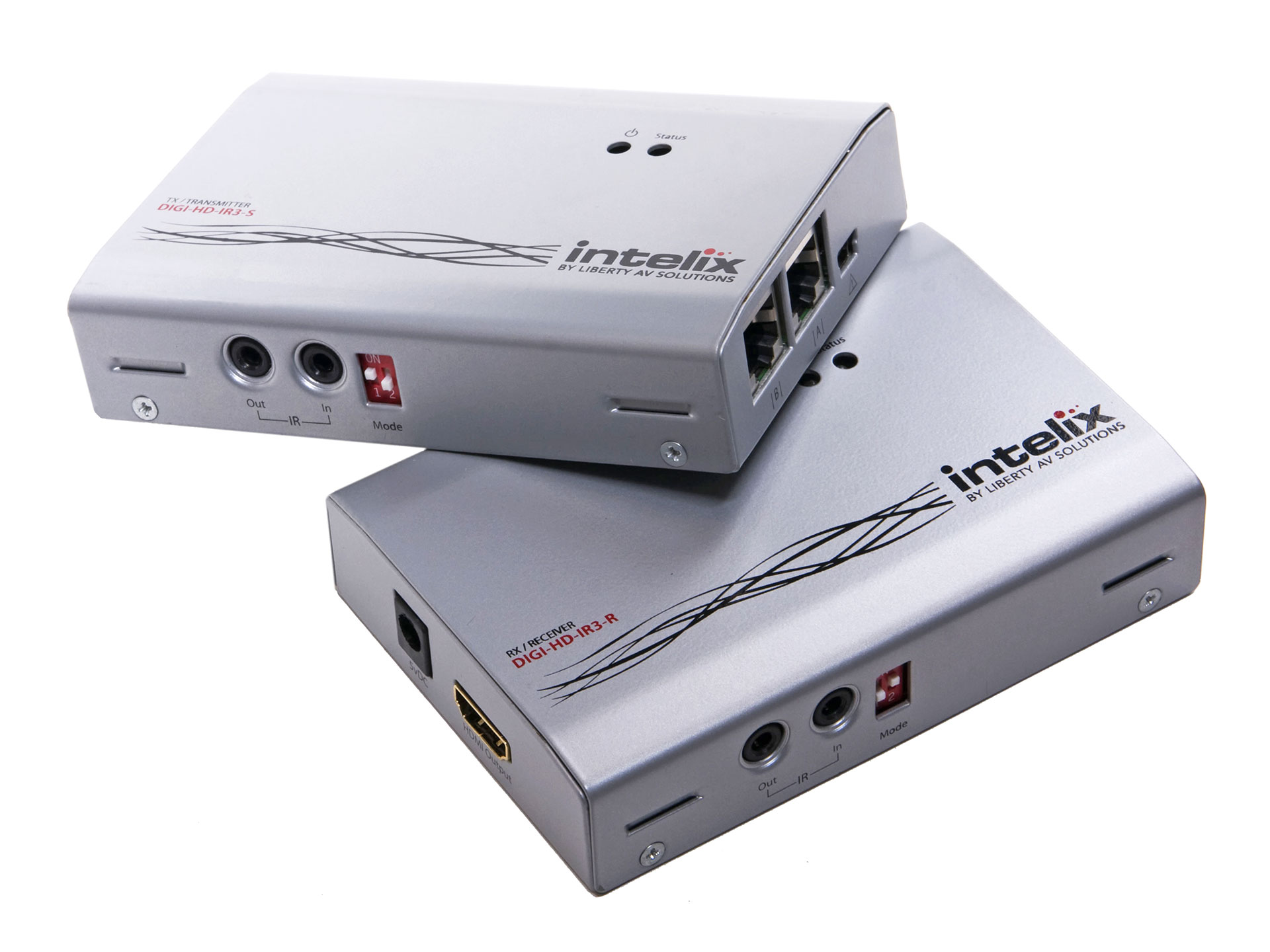

The set includes (1) DIGI-HD-IR3-S transmitter, (1) DIGI-HD-IR3-R receiver, two power supplies, an IR emitter, and an IR receiver.
With its enclosed design, the Intelix DIGI-HD-IR3 may be used stand-alone, or may also be rack-mounted by using an optional rack-mount kit. Connection to HDMI is via standard Type A connectors. HDMI cables are not included, but we do have them available here. Connection to the twisted-pair cables is via RJ45. Power is required at both the transmitter and receiver ends.
As with virtually all systems that are based upon twisted-pair cable technology, the Intelix HDMI Twisted-pair Matrix Distribution System will work with virtually any twisted-pair cables, including Cat-5e and Cat-6, but range and bandwidth is directly related to both distance and cable quality, so to get the highest resolutions at the greatest distances, you will want high-quality, low-skew cables. If you want the very best pre-terminated cables, please consider our VideoTwist cables.
Like most Intelix products, the DIGI-HD-IR3 comes with a two year limited warranty from the manufacturer.
Intelix's Description
DIGI-HD-IR3 Balun
HDMI and bi-directional IR over twisted pair extender
Tired of problem installations? Rethink HDMI with the Intelix DIGI-HD-IR3.
The Intelix DIGI-HD-IR3 transmits HDMI and IR up to 300' over two twisted pair cables. Built-in HDshāk® processing provides dynamic HDMI, EDID/DDC and HDCP mode selection, guaranteeing performance and image quality. The DIGI-HD-IR3 features electrostatic discharge (ESD) protection circuitry which safeguards the HDMI circuit against static electricity and other destructive stray voltage.
Features
- 1080p HDMI and bi-directional IR over two twisted pair cables
- Built-in ESD surge protection
- Remote EDID storage
HDshāk Processing
Intelix HDshāk technology delivers the highest level of EDID negotiation, ensuring proper source & destination handshaking over twisted pair every time.
[please click here for details]
DIGI-HD-IR3 Feature Focus
HDMI 1.3 compliant. Forget HDMI handshake issues, loss of audio, and video flickers. The DIGI-HD-IR3 features an HDMI 1.3b chipset, providing the most stable and uniform platform for HDMI sources and destinations. Plus, Deep Color and Lossless Digital Audio are supported.
Shelf-top or rack-mountable. [Use DIN-RACK-KIT-F for rack mounting]

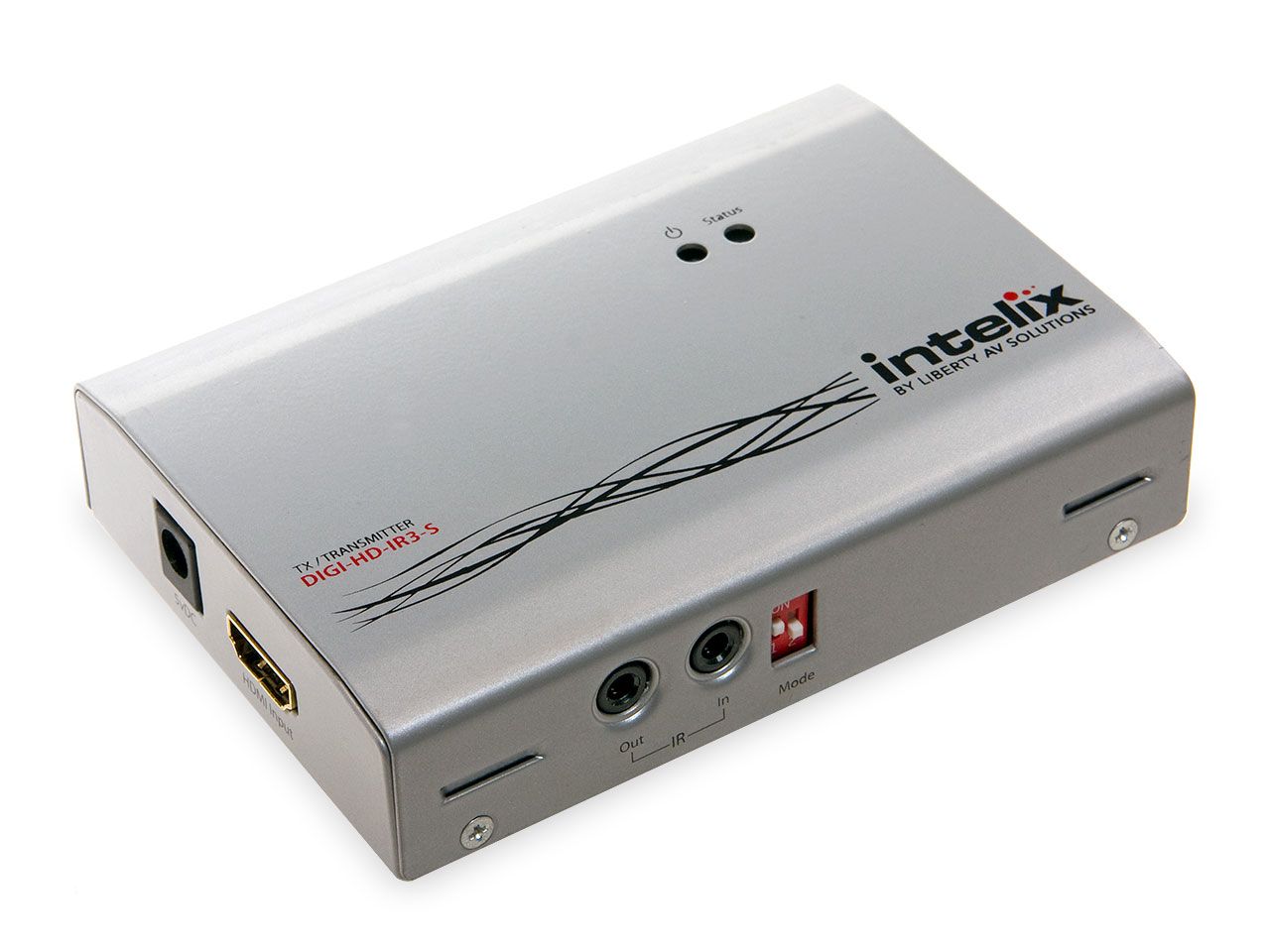

Here is the included Intelix DIGI-HD-IR3-S HDMI over Twisted-Pair Transmitter.
Shown here is the Intelix DIGI-HD-IR3-R HDMI over Twisted-Pair Receiver, included with this kit.
This flyer explains how Intelix HDshāk technology ensures proper source & destination handshaking over twisted pair every time. Click to download PDF.
This is the spec sheet for the very similar wallplate version transmitter, in PDF format.
This is the spec sheet for the very similar wallplate version receiver, in PDF format.
Here is the Installation Manual, in PDF format.
