The Intelix DIGI-DVI-R-F is a Cat 6 receiver, sold as an upgrade to the Intelix DIGI-DVIT2R-F and DIGI-DVIT4R-F DVI distribution systems. Each receiver includes two DVI outputs, making
it simple to drive either one or two monitors at each remote location.
This DIGI-DVI-R-F may be used stand-alone, or may also be rack-mounted
by using an optional
rack-mount
kit.
If you find that your existing cables are under-performing, or is you simply want to the buy the very best cables
for use with this product, we have both plenum and non-plenum versions available, and we can custom-build terminated
Cat 5/6 cables in any length(s) you need.
Like most Intelix products, the DIGI-DVI-R-F comes with a two-year limited warranty.
Intelix's Description
|
The Intelix DIGI-DVI-R-F receiver is used in conjunction with the Intelix
DIGI-DVIT2R-F and DIGI-DVIT4R-F DVI over twisted pair distribution
systems.
The Intelix  Series
of baluns is the ideal solution for sending digital, high-performance signals over structured cabling.
When signal quality matters, choose Intelix.
| Technical Specifications |
| Maximum Distance* |
220 feet |
| Video Amplifier Bandwidth |
1.65 GHz |
| Power |
External 5 VDC on both the source and destination baluns |
| Single Link Range |
1080P/1920 x 1080 |
| Input Video Signal |
1.2 volts p-p |
| Input DDC Signal |
5 volts p-p (TTL) |
|
Connectors
|
One (1) DVI-D output connector and
one (1) RJ45 input connector |
| Cable |
Shielded CAT 6 or better |
| Enclosure |
RF shielded metal
|
| Dimensions |
3.50" x 2.88" x 0.88"
|
| Shipping Weight |
1.0 Lbs |
| Temperature |
Operating: 32 to 131 degrees F
Storage: -4 to 185 degrees F
Humidity: up to 95%
|
| Warranty |
Two years |
| Part # |
DIGI-DVI-R-F
|
| Accessories |
5V Power Supply
|
| Compliancy |
CE, RoHS |
|
|
*Distances may be affected by cable grade, cable quality, source and destination equipment, RF and electrical
interference, and cable patches. Intelix specifications are based on straight-through cabling with shielded
Cat 6.
*The DIGI-DVI-R-F is not compatible with devices requiring HDCP encryption.
Design with Intelix and Design with Intelligence
|
Why Cable Solutions?
No one works harder than we do to get your order shipped out to you fast! On business days, orders that are funded
by noon will ship the same day. Orders funded on weekends or holidays will ship the next business day.
Cable Solutions is an Intelix Authorized Reseller, so our customers get the full benefit of Intelix's factory-direct
support and warranty.
Customer service is our first priority. We do our best to help you find the best solutions for your particular
application. We're enthusiasts too, so we know what it's like to wait for cables and accessories that are needed
to hook up new gear. We also know how important it is to be able to get a response when you need help, so you'll
often find us working long hours in an effort to get you the answers that you need.
Design excellence, high quality materials, meticulous workmanship, and superior service...put it all together and
you get a superior product. Don't get stuck with bad advice, poor service, slow shipment or an inferior product.
If you want the best, here it is.
Miscellaneous
Please click here to read our policies and disclaimer. Thanks for reading all
of this!
|
Click on any of the pictures below for a closer view!

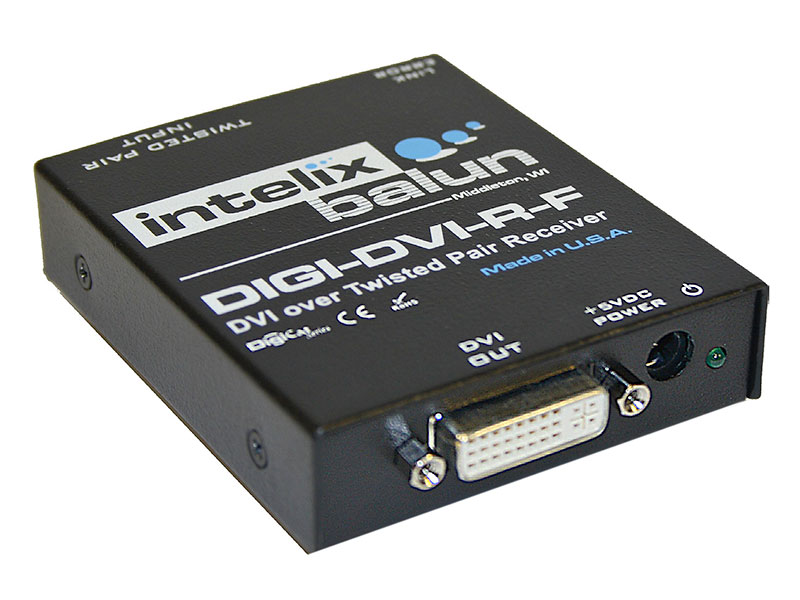

Intelix DIGI-DVI-R-F DVI over Cat 6 Distribution System Receiver

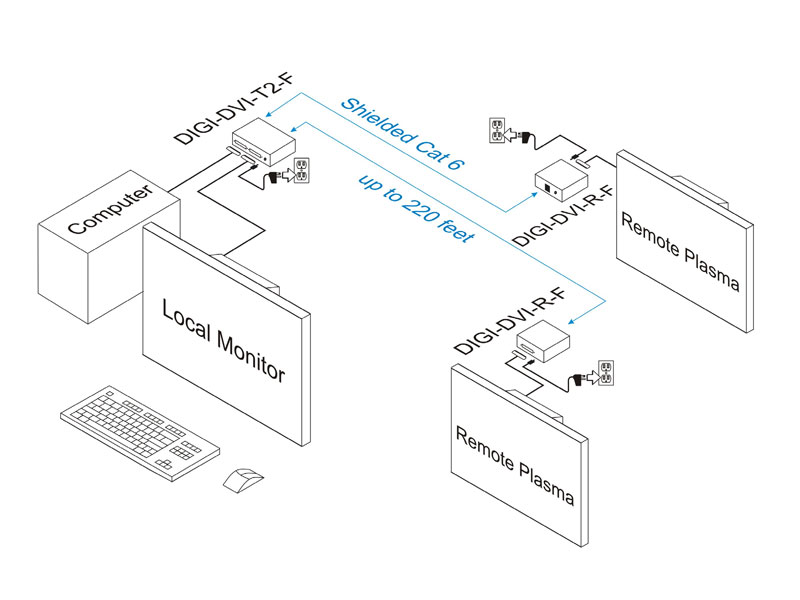

Example System: A computer sends DVI video to two remote plasmas via an Intelix DIGI-DVIT2R-F system and shielded Cat 6 cable. The DIGI-DVIT2R-F include one send balun (DIGI-DVI-T2-F), one receive balun (DIGI-DVI-R-F), and two power supplies. The additional DIGI-DVI-R-F receiver was purchased separately.
Here is the spec sheet - click to download PDF
Here is the Installation Manual in PDF format.
