Intelix HDTV Component Video and IR Balun

Pro-Grade Passive CAT 5 Extender

Transmit/receive HDTV Component Video and IR control signals up to 500 feet over a single CAT 5 type cable.  The Intelix AVO-V3PT-F HDTV Component Video Balun is an ideal solution for corporate A/V, schools, churches, auditoriums, as well as for discriminating individuals - just about any situation that involves A/V distribution.

The Intelix AVO-V3PT-F may be used stand-alone, or may also be rack-mounted by using an optional rack-mount kit.  Notice that Intelix Baluns are designed to work with standard unshielded CAT5, CAT6 or CAT7 cable - shielded cable is not required!

These units are sold singly, but you will typically want to purchase in pairs.

Intelix's Description
The Intelix AvoCat Series of baluns is the ideal solution for sending audio and video over structured cabling. When signal quality matters, choose Intelix.

The Intelix AVO-V3PT-F balun transmits a high-definition component video and two conductor control signal (IR) up to 500 feet over standard unshielded twisted pair cable, such as Cat 5.


Technical Specifications

Maximum Distance
480i/p video: 1,000 feet
720p video: 500 feet
1080i/p video: 500 feet
Maximum Input 1.1 Vp-p
Bandwidth
60 MHz, 3 dB roll off
Impedance 75 Ohms at 1 MHz
Insertion Loss 0.1 dB for 0.1 MHz. Gradually increasing to 2.5 dB over the frequency range.
Return Loss Greater than 15 dB over the frequency range
Common Mode Rejection
-55 dB at 0.1 MHz. Gradually increasing to -20 dB at 60 MHz.
Unshielded Twisted Pair Cabling Specifications (24 gauge or lower solid copper) Maximum capacitance: 20 pF/foot
Impedance: 100 Ohms @ 1 MHz
Attenuation: 6.6 dB/1000 ft. @ 1MHz

Cat 5, Cat 5e, Cat 6, and Cat 7 compatible

Pass-through Support Three (3) gold-plated female RCA and
one (1) spring tension to one (1) RJ45
Connectors
Three (3) female BNC to one (1)
RJ45
RJ45 Pinout Red (Pr): 7 & 8, pair 4
Green (Y): 3 & 6, pair 3
Blue (Pb): 1 & 2, pair 2
Pass-through: 4 & 5, pair 1
Temperature
Operating: 32 to 131 degrees F
Storage: -4 to 185 degrees F
Humidity: up to 95%
Enclosure Black plastic
Dimensions 4.3" x 2.5" x 1.0"
Weight 0.2 lbs. (3.2 oz)
Ordering Information
AVO-V3PT-F: single AVO-V3PT-F in
bulk packaging
AVO-V3PT-PAC-F: two AVO-V3PT-F
baluns in retail-ready packaging
Warranty Two years

*Distances and picture quality may be affected by cable grade, cable quality, source and destination equipment, RF and electrical interference, and cable patches. Intelix specifications are based on straight-through cabling with standard-grade Cat 5.

Why Cable Solutions?
Cable Solutions is an Intelix Authorized Reseller, so our customers get the full benefit of Intelix's factory-direct support and warranty.

No one works harder than we do to get your order shipped out to you fast!  On business days, orders that are funded by noon will ship the same day.  Orders funded on weekends or holidays will ship the next business day.

Customer service is our first priority.  We do our best to help you find the best solutions for your particular application.  We're enthusiasts too, so we know what it's like to wait for cables and accessories that are needed to hook up new gear.  We also know how important it is to be able to get a response when you need help, so you'll often find us working long hours in an effort to get you the answers that you need..

Design excellence, high quality materials, meticulous workmanship, and superior service...put it all together and you get a superior product.  Don't get stuck with bad advice, poor service, slow shipment or an inferior product.  If you want the best, here it is.

Miscellaneous
Please click here to read our policies and disclaimer.  Thanks for reading all of this!

SKU Number AVO-V3PT-F
MSRP: $86.95

Our Price: $
82.60

Intelix Authorized Reseller Logo
Cable Solutions is an Intelix Authorized Distributor, so our customers get the full benefit of Intelix's factory-direct support and warranty.

Click on any of the pictures below for a closer view!!

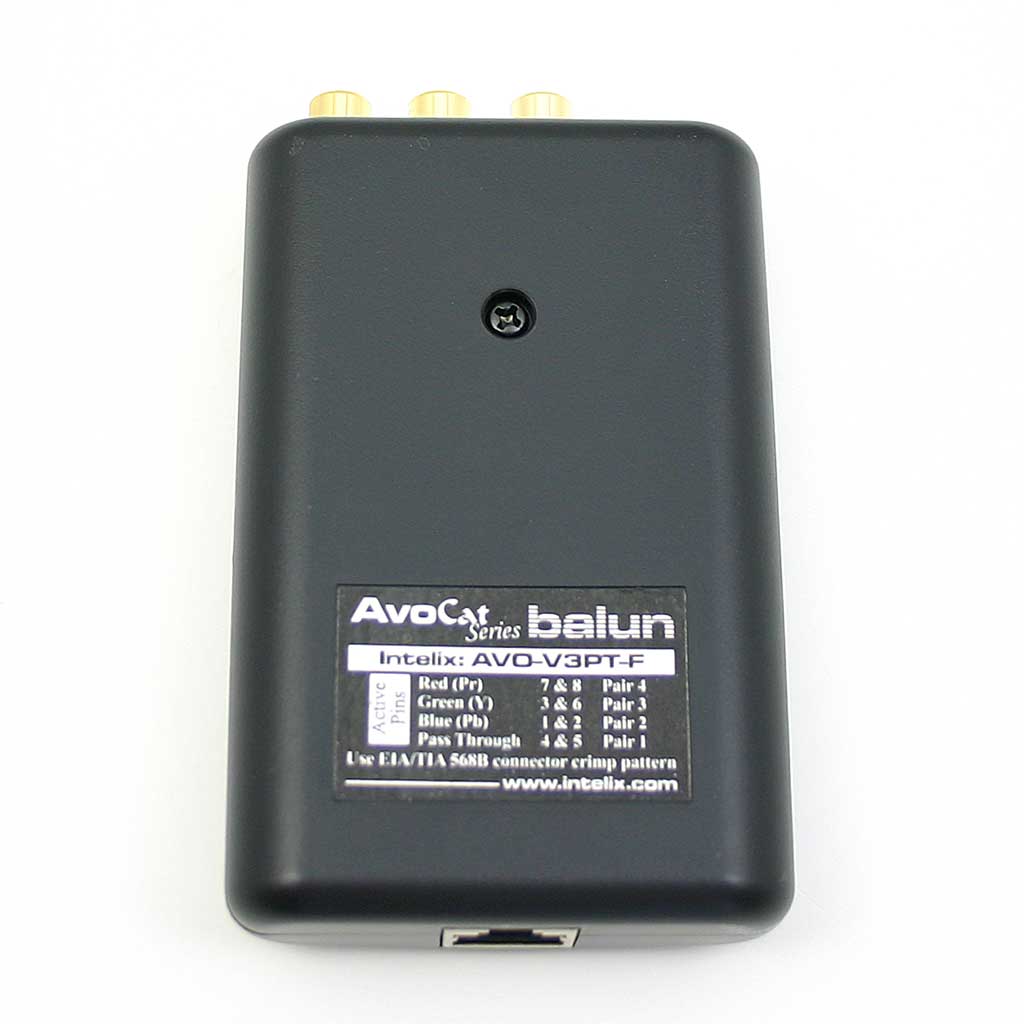

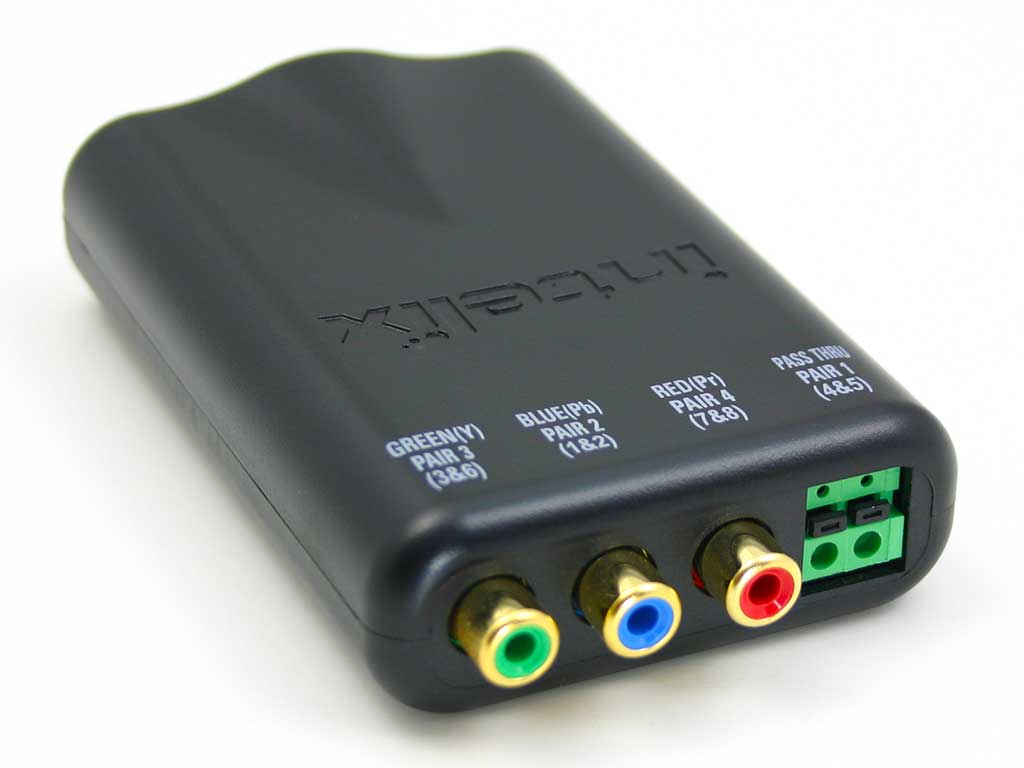

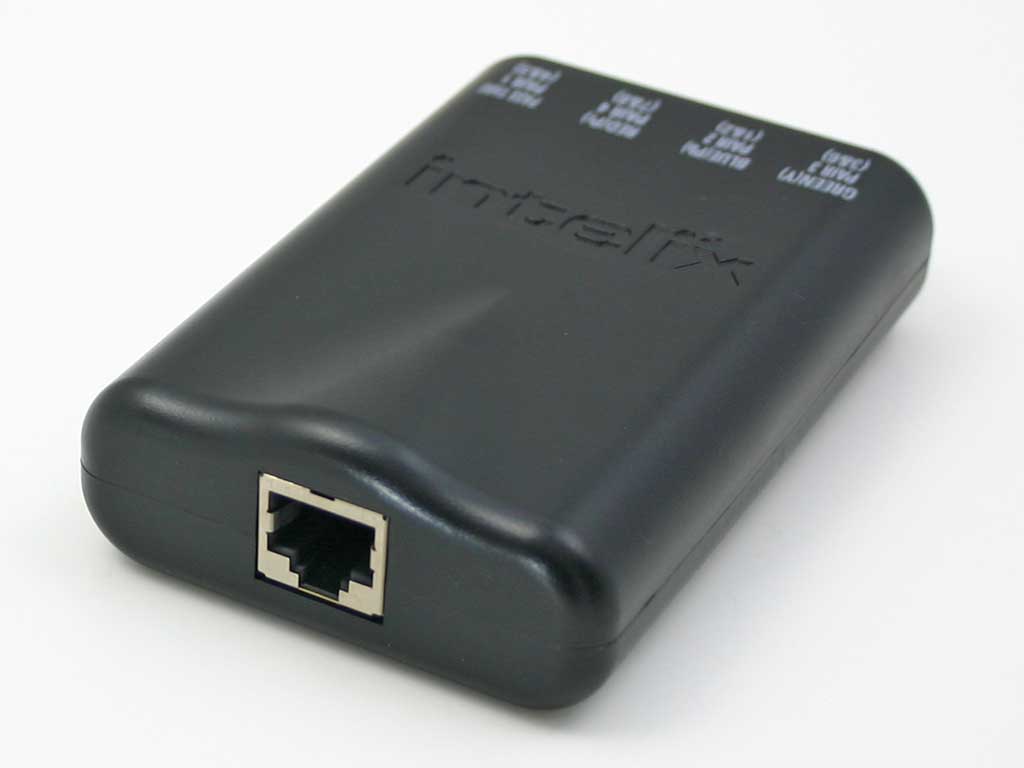

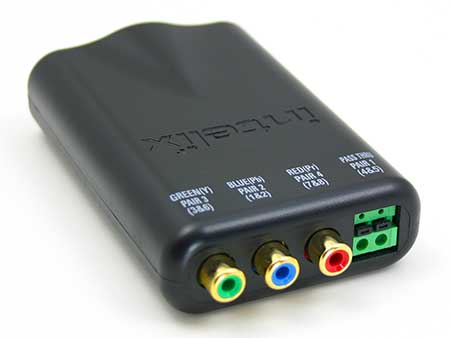

Intelix AVO-V3PT-F HDTV Component Video Balun - Click Here for a closer look!

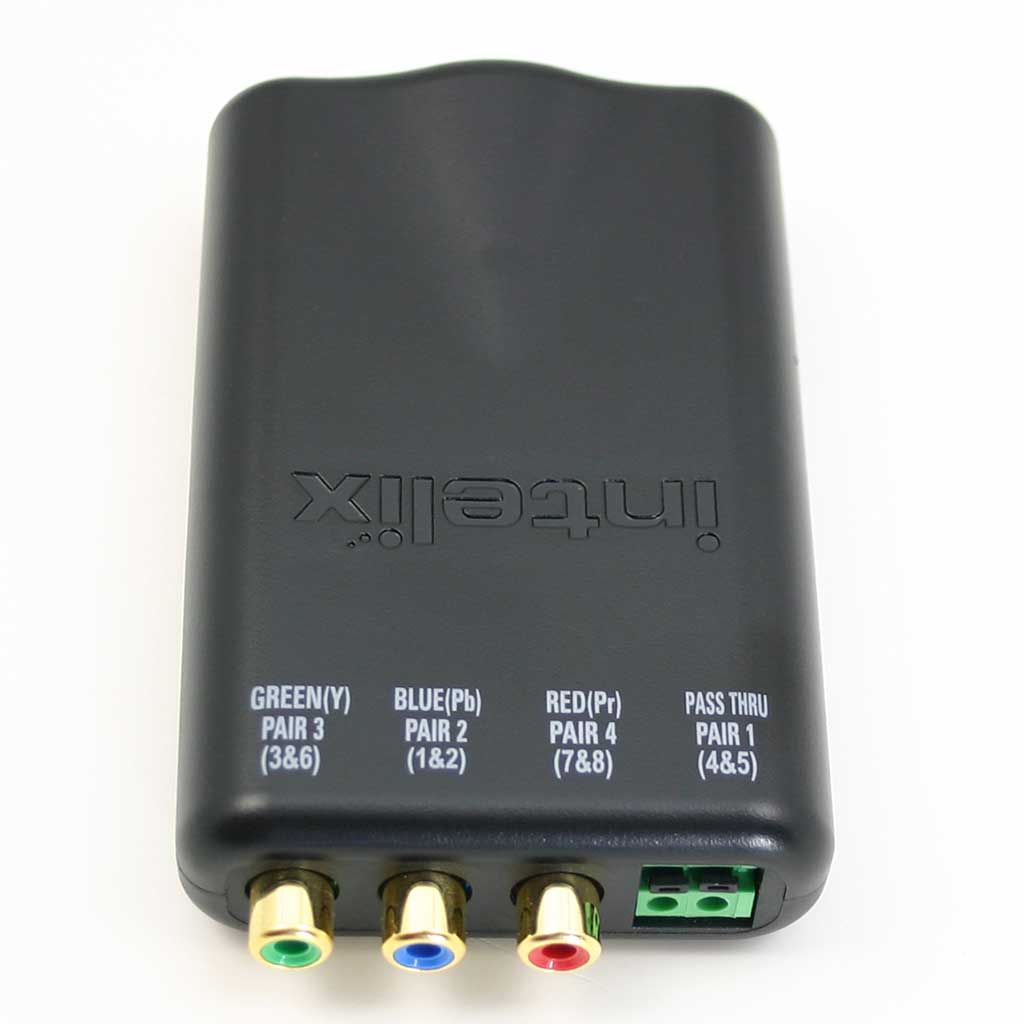

Intelix AVO-V3PT-F Component Video and Digital Audio Balun

Two units are shown here because they are normally used in pairs, but please be aware that this model is sold singly.



Intelix AVO-V3PT-F HDTV Component Video Balun Connection Example - Click Here for a closer look!

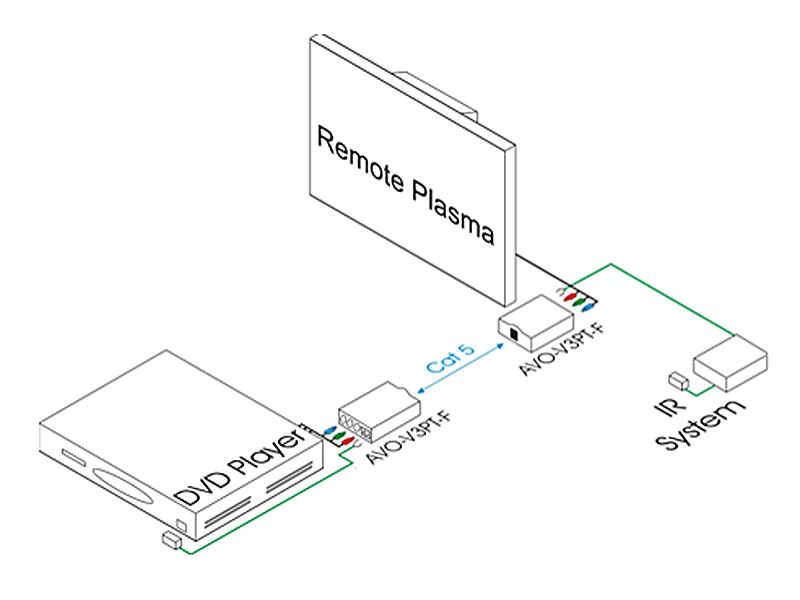

In this connection example, Two AVO-V3PT-F baluns transmit high-definition
component video from a DVD player to a remote plasma. IR is transmitted from an IR system located at the plasma back to the DVD player. Both signals are routed over a single Cat 5.



Intelix AVO-V3PT-F HDTV Component Video Balun Installation Manual - Click Here to download in PDF format!
Here is the installation manual in PDF format.
