Transmit/receive HDTV Component Video or RGB video signals up to
500 feet over a
single CAT 5 type cable (or multiple composite video signals up to 2200 feet).
The AVO-V3HD-F features BNC connectors, making it the ideal choice for use with
professional or high-end consumer equipment. This professional-grade device uses a
high-performance passive design to deliver crisp Component Video. The
Intelix AVO-V3HD-F Component Video Balun is an ideal solution for corporate A/V, schools,
churches, auditoriums, as well as for discriminating individuals - just about
any situation that involves A/V distribution.
These units are sold singly, but you will typically want to purchase in pairs.
The Intelix AVO-V3HD-F may be used stand-alone, or may also be rack-mounted
by using an optional
rack-mount
kit. Notice that Intelix Baluns are designed to work with standard
unshielded CAT5, CAT6 or CAT7 cable - shielded cable is not required!
Intelix's Description
The Intelix AvoCat Series of baluns is the ideal solution for sending
audio and video over structured cabling. When signal quality matters, choose
Intelix.
|
The Intelix AVO-V3HD-F balun
transmits a high-definition component video signal up to 500
feet over standard unshielded twisted pair cabling, such as Cat
5. The AVO-V3HD-F features BNC connectors.
|
Technical Specifications |
|
Maximum Distance
|
Component/RGB video: 500 feet
Composite video: 2200 feet
|
|
Maximum Input |
1.1 Vp-p |
|
Bandwidth
|
60 MHz, 3 dB roll off
|
|
Impedance |
75 Ohms
at 1 MHz |
|
Insertion Loss |
0.1 dB for 0.1 MHz.
Gradually increasing to 2.5 dB over the
frequency range. |
|
Return Loss |
Greater than 15 dB over
the frequency range |
|
Common Mode Rejection
|
-55
dB at 0.1 MHz. Gradually increasing
to -20 dB at 60 MHz.
|
|
Unshielded Twisted
Pair Cabling Specifications (24 gauge or
lower solid copper) |
Maximum capacitance: 20
pF/foot
Impedance: 100 Ohms @ 1 MHz
Attenuation: 6.6 dB/1000 ft. @ 1MHz
Cat 5, Cat 5e, Cat
6, and Cat 7 compatible |
|
Connectors
|
Three (3) female BNC to one (1)
RJ45
|
|
RJ45 Pinout |
Pr (Red): 7 & 8, pair 4
Y (Green): 3 & 6, pair 3
Pb (Blue): 1 & 2, pair 2 |
|
Temperature |
Operating: 32 to 131
degrees F
Storage: -4 to 185 degrees F
Humidity: up to 95%
|
|
Enclosure |
Fire retardant plastic |
|
Dimensions |
4.3" x 2.5" x 1.0" |
|
Weight |
0.2 lbs. (3.2 oz) |
|
Ordering Information |
AVO-V3HD-F: single AVO-V3HD-F
in bulk packaging
AVO-V3HD-PAC-F: two AVO-V3HD-F
baluns in retail-ready packaging
|
|
Warranty |
Two years |
|
|
*Distances and picture quality may be affected
by cable grade, cable quality, source and destination equipment,
RF and electrical interference and cable patches. Intelix
specifications are based on straight-through cabling with
standard-grade Cat 5. |
Why Cable Solutions?
Cable Solutions is an Intelix Authorized Reseller, so our customers get the full benefit of
Intelix's factory-direct support and warranty.
We stock this item locally and no one works harder
than we do to get your order shipped out to you fast! On business days,
orders that are funded by noon will ship the same day. Orders funded on
weekends or holidays will ship the next business day.
Customer service is our first priority. We do our best to help you find
the best solutions for your particular application. We're enthusiasts too,
so we know what it's like to wait for cables and accessories that are needed to
hook up new gear. We also know how important it is to be able to get a
response when you need help, so you'll often find us working long hours in an
effort to get you the answers that you need..
Design excellence, high quality materials, meticulous workmanship, and
superior service...put it all together and you get a superior product.
Don't get stuck with bad advice, poor service, slow shipment or an inferior
product. If you want the best, here it is.
Miscellaneous
Please click here to read our policies
and disclaimer. Thanks for reading all of this!
|
SKU Number AVO-V3HD-F
MSRP: $66.95
Our Price: $57.58
Cable Solutions is an Intelix Authorized
Distributor, so our customers get the full benefit of Intelix's factory-direct support and warranty.
Click on any of the pictures below for a closer view!!
Intelix AVO-V3HD-F Component Video and Digital Audio Balun

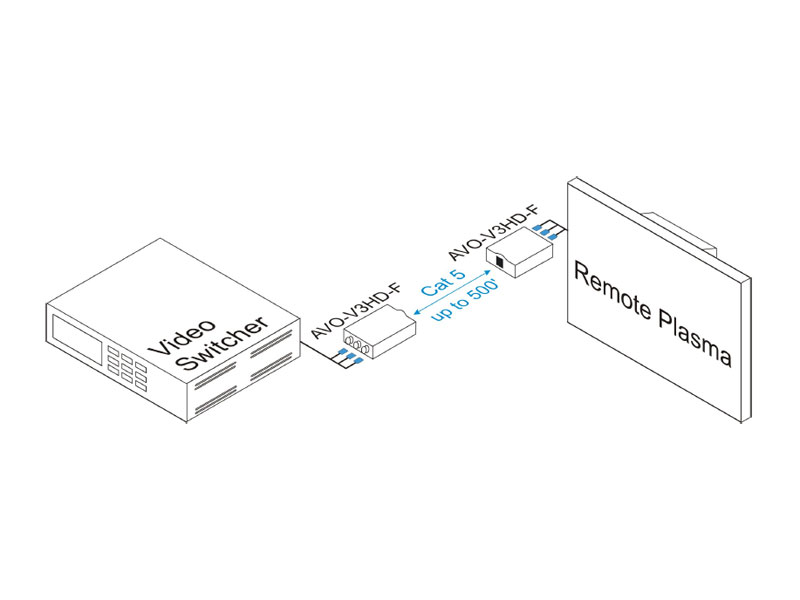

In this connection example, two AVO-V3HD-F baluns connect a video switcher to a
remote plasma over 500 feet of Cat 5. A three channel RGB cable with BNC
connectors connect the baluns to the switcher and plasma.
Here is the installation manual in PDF format.
|
