The Intelix AVO-A4-WP110 Analog Dual Stereo Audio Balun has two
pairs of RCA jacks for connection to equipment and features
a wall plate form factor with 110-style punch-down termination, for quick and easy
installation with unterminated Cat 5-type cabling.
This professional-grade device uses a
high-performance passive design to deliver
two audiophile-quality stereo (or four mono) audio signals
up to 2500 feet over a single CAT 5 type cable. The AVO-A4-WP110 is ideal for corporate A/V, schools,
churches, auditoriums, as well as for discriminating
individuals - just about any situation that involves
audio distribution.
These units are sold singly, so you can purchase
pairs, or combine with
other A4-series baluns.
Notice that Intelix Baluns are designed to work with
standard unshielded CAT5, CAT6, or CAT7 cable - shielded
cable is not required!
Intelix's Description
|
The Intelix AVO-A4-WP110 wallplate balun
transmits four mono or two stereo analog audio
signals over standard unshielded twisted pair
cabling, such as Cat 5 or Cat 6. Used in pairs
or with a compatible Intelix balun, the
AVO-A4-WP110 transmits analog audio in either
direction up to 2,500 feet and is ideal for
corporate A/V, churches, schools, auditoriums,
and almost any other situation involving audio
distribution.
The AVO-A4-WP110 features four female RCA
connectors on the front and a 110 punch-down
termination on the rear. The unit includes a 110
termination tool.
The Intelix
Series of baluns is the ideal solution for
sending audio over structured cabling.
When signal quality matters, choose Intelix.
| Technical Specifications |
| Maximum
Distance* |
2500 feet |
| Bandwidth |
20 Hz to 20 KHz |
| Impedance |
600 Ohms, unbalanced |
| Isolation |
500 V |
| Nominal
Level |
1.0 Volts |
| Insertion
Loss |
1 dB |
| Common Mode
Rejection |
Greater than 40 dB |
|
Unshielded Twisted Pair Cabling
Specifications
(24 gauge or lower solid)
|
Maximum capacitance: 20
pF/foot
Impedance: 100 Ohms @ 1 MHz
Attenuation: 6.6 dB/1000 ft. @ 1 MHz |
| Recommended
Cable |
Cat 5, Cat 5e, Cat 6 |
| Connectors |
Four (4) female RCA to
one (1) 110 punch |
| Compatible
Intelix Products |
AVO-A4-WP-F, AVO-A4-F |
| Temperature |
Operating: 32 to 131 F (0 to 55 C)
Storage: -4 to 185 F (-20 to 85 C)
Humidity: up to 95%
|
| Enclosure |
Front: standard Decora wallplate
Rear: metal
|
| Dimensions |
Front: 4.00” x 1.50” x 0.25”
Rear: 2.00” x 1.50” x 1.25”
|
|
Faceplate Color
|
White |
| Shipping
Weight |
1.0 Lbs |
| Ordering
Information |
AVO-A4-WP110 - bulk packaged, one
unit
|
|
Included Accessories
|
110 termination tool
|
| Warranty |
Two years |
|
|
*Distances and picture quality may be
affected by cable grade, cable quality, source
and destination equipment, RF and electrical
interference, and cable patches. Intelix
specifications are based on straight-through
cabling with standard-grade Cat 5.
Design with Intelix and Design with Intelligence
|
Why Cable Solutions?
We stock this item locally and no one works harder than we do to get your order shipped out to you fast! On business days, orders that are funded by noon will ship the same day. Orders funded on weekends or holidays will ship the next business day.
Cable Solutions is an Intelix Authorized Reseller, so our customers get the full benefit of Intelix's factory-direct support and warranty.
Customer service is our first priority. We do
our best to help you find the best solutions for your
particular application. We're enthusiasts too, so
we know what it's like to wait for cables and
accessories that are needed to hook up new gear.
We also know how important it is to be able to get a
response when you need help, so you'll often find us
working long hours in an effort to get you the answers
that you need.
Design excellence, high quality materials, meticulous
workmanship, and superior service...put it all together
and you get a superior product. Don't get stuck
with bad advice, poor service, slow shipment or an
inferior product. If you want the best, here it
is.
Miscellaneous
Please click here to read
our policies and disclaimer. Thanks for reading
all of this!
|
Click on any of the
pictures below for a closer view!

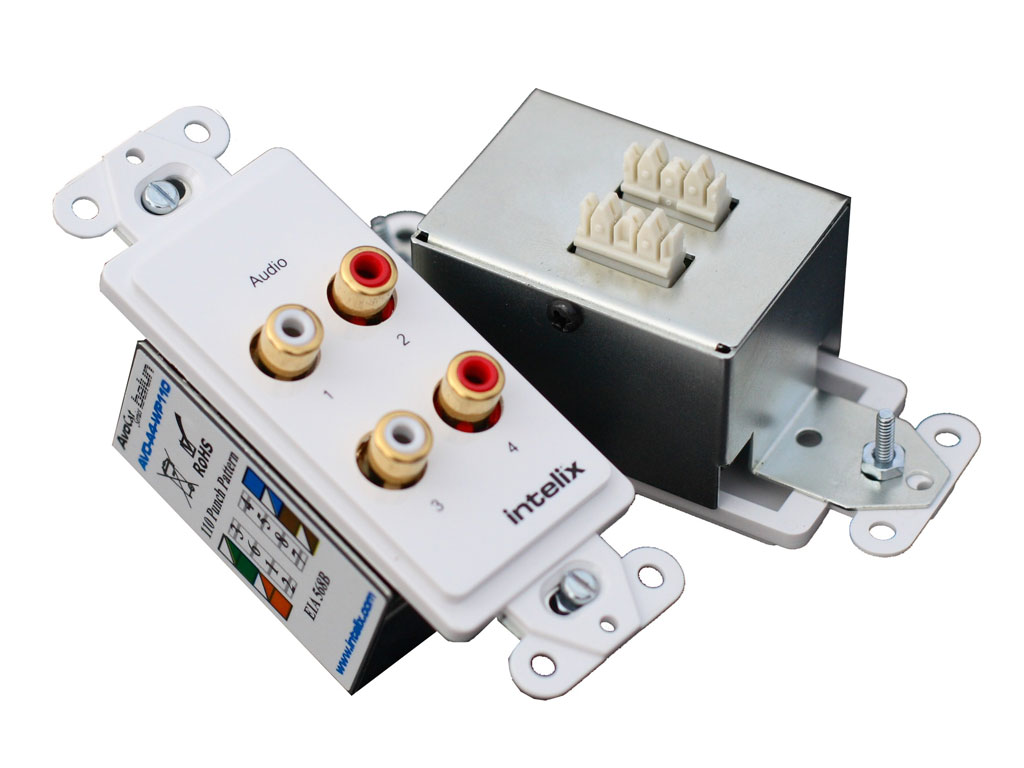

Intelix AVO-A4-WP110 Dual Stereo Audio
Wallplate Balun with 110 Termination

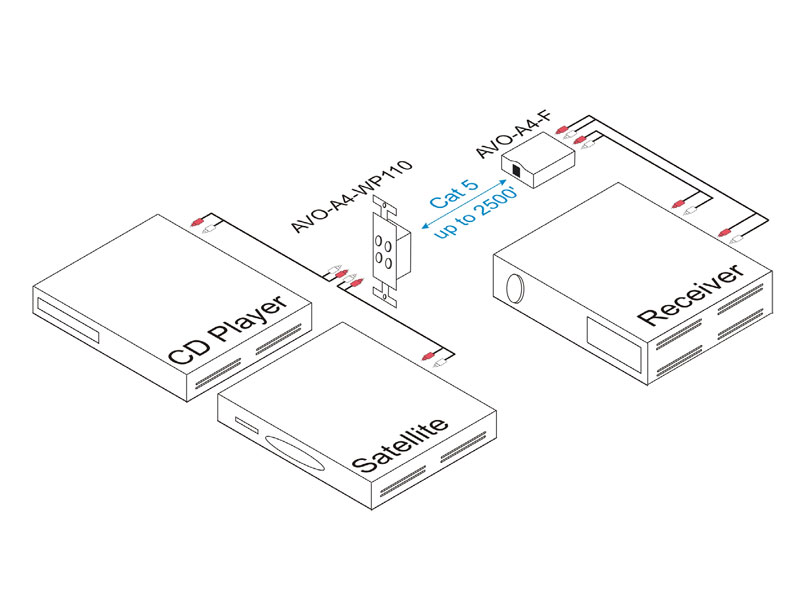

Example System: One Intelix AVO-A4-WP110
