Transmit/receive stereo (or two mono) audio signals up to 2500 feet over a
single CAT 5 type cable. This professional-grade device uses a
high-performance passive design to deliver audiophile-quality sound. The
Intelix AVO-A2-WP-F Analog Audio Balun is ideal for corporate A/V, schools,
churches, auditoriums, as well as for discriminating individuals - just about
any situation that involves audio distribution.
These units are sold singly, so you can purchase pairs, or combine with
other A2-series
baluns.
Notice that Intelix Baluns are designed to work with standard
unshielded CAT5, CAT6, or CAT7 cable - shielded cable is not required!
Intelix's Description
The Intelix AvoCat Series of baluns is the ideal solution for sending
audio over structured cabling. When signal quality matters, choose Intelix.
|
The Intelix AVO-A2-WP-F is an
ultra-high performance audio balun designed for applications
where audio quality is critical, such as high-end residential
and broadcast. Used in pairs, the AVO-A2-WP-F is the perfect
solution for transmitting two channels of analog audio over
structured cabling, such as Cat 5. Simply place an AVO-A2-WP-F
or compatible balun at each end of your cable run and connect
your source and destination devices. The AVO-A2-WP-F features
female RCA connectors on a standard Decora plate.
Technical Specifications
|
Max Distance |
2500 feet |
|
Bandwidth |
20 Hz to 20 kHz |
|
Power |
No power required |
|
Impedance |
600 ohms, balanced |
|
Isolation |
500 V |
|
Nominal Level |
1.0 V |
|
Insertion Loss |
1 dB |
|
Common Mode Rejection |
Greater than 40 dB |
|
Cable |
Cat 5, Cat 5e, Cat 6, and
Cat 7 compatible |
|
Connectors |
Two (2)
female RCA to one (1)
RJ45 |
|
Enclosure |
Front:
standard Decora wall plate
Rear: metal casing |
|
Dimensions |
4.0" x
1.4" x 1.7" |
|
Shipping Weight |
0.2 lbs. |
|
Pin Out |
Channel 1: 1 & 2, pair 2
Channel 2: 3 & 6, pair 3
|
|
Temperature |
Operating: 32 to 131 degrees F
Storage: -4 to 185 degrees F
Humidity: up to 95%
|
|
Warranty |
2 years |
|
Part # |
AVO-A2-WP-F: single AVO-A2-WP-F balun in bulk packaging
|
|
Included Accessories |
None |
|
Why Cable Solutions?
Cable Solutions is an Intelix Authorized Reseller, so our customers get the full benefit of
Intelix's factory-direct support and warranty.
No one works harder
than we do to get your order shipped out to you fast! On business days,
orders that are funded by noon will ship the same day. Orders funded on
weekends or holidays will ship the next business day.
Customer service is our first priority. We do our best to help you find
the best solutions for your particular application. We're enthusiasts too,
so we know what it's like to wait for cables and accessories that are needed to
hook up new gear. We also know how important it is to be able to get a
response when you need help, so you'll often find us working long hours in an
effort to get you the answers that you need..
Design excellence, high quality materials, meticulous workmanship, and
superior service...put it all together and you get a superior product.
Don't get stuck with bad advice, poor service, slow shipment or an inferior
product. If you want the best, here it is.
Miscellaneous
Please click here to read our policies
and disclaimer. Thanks for reading all of this!
|
SKU Number AVO-A2-WP-F
MSRP: $73.95
Our Price: $70.25
Cable Solutions is an Intelix Authorized
Distributor, so our customers get the full benefit of Intelix's factory-direct support and warranty.
Click on any of the pictures below for a closer view!!

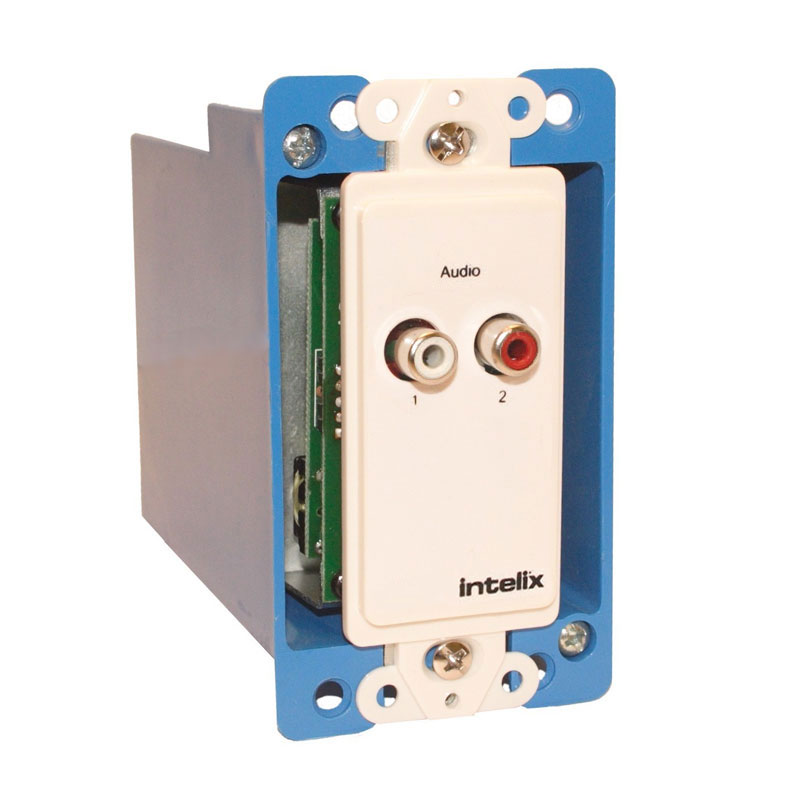

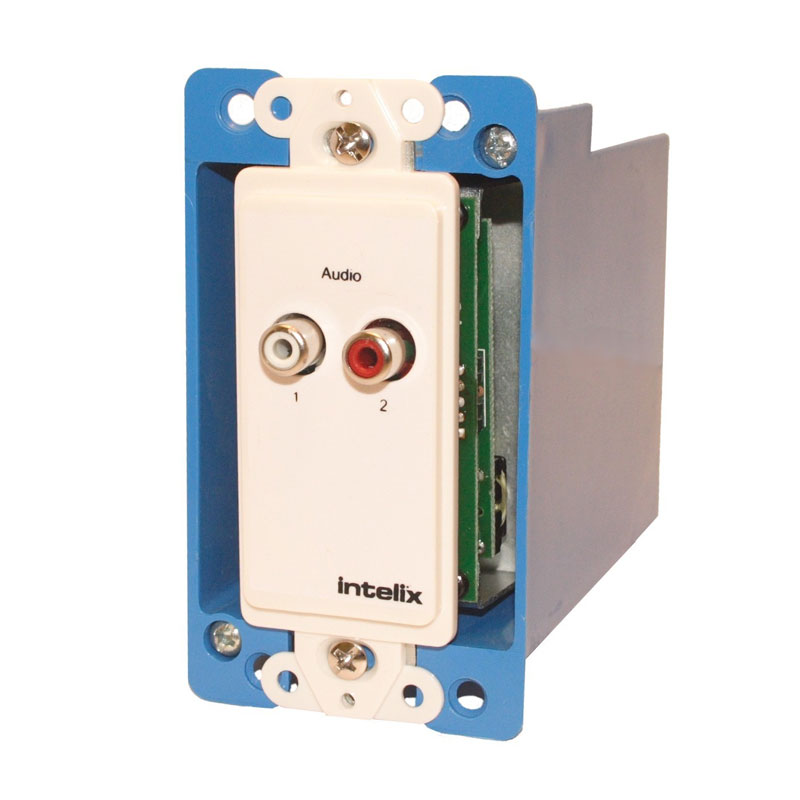

Intelix AVO-A2-WP-F Stereo Audio Balun

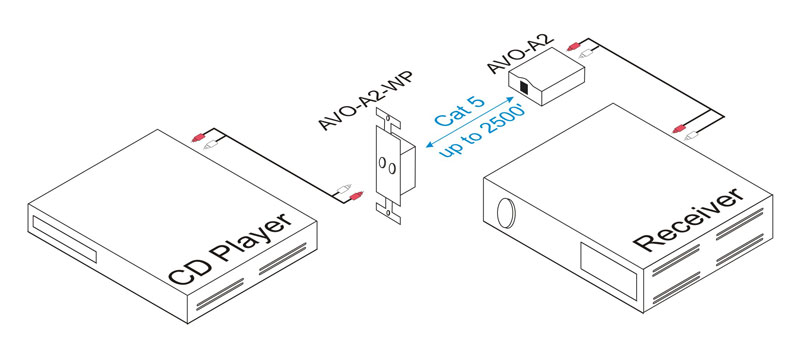

In this connection example, an AVO-A2-WP-F balun and AVO-A2-F balun connect a
remote CD player to a receiver.
Here is the installation manual in PDF format.
|
