This is the Gefen 1x2 HDTV Splitter, model
EXT-HDTV-142N. This high quality distribution amplifier can be used to send the same
digital video signal
from DVD players, D-VHS, satellite receivers, cable boxes, and other
HDMI (or DVI) sources to
multiple DVI (or HDMI) displays, such as LCD,
DLP, LCoS, plasma and CRT monitors and projectors. Please notice that,
like all DVI-equipped devices, this splitter supports digital video only - it is
not possible to transmit HDMI audio over a DVI interface.
Important Note:
This splitter is ideal for use in mixed DVI / HDMI applications.
If you need DVI / HDMI conversion cables, we have a wide selection
in stock, and we can also substitute DVI / DVI or DVI / HDMI conversion cables in
place of the standard HDMI / HDMI bundled cable.
Gefen's description
|
The
ex•tend•it HDTV Splitter allows set-top boxes, DVD players, D-VHS
players and other HD devices with either HDMI/DVI output to be
connected to two or more HDTV displays at the same time. It
distributes digital high definition video to both displays.
The HDTV
Splitter is a distribution hub that sends the same video output to
two or more HD displays. It is a flexible solution that can be
stacked to accommodate multiple displays. When two or more HDTV
Splitters are connected together, they can be used to create a
larger distribution.
How it works
The HDTV Splitter is connected using a HDMI cable from the HDMI
source to the HDMI Splitter input. There are either two DVI outputs.
Output 1 is the primary connection and is used for the main display.
Output 2 follows the main display.
The HDTV Splitter is HDCP compliant.
NOTE: The HDTV Splitter will ONLY support video signals
HDMI, HDCP & HDMI Defined
Package Includes:
-
HDTV Splitter
-
One 5v Power Supply
-
One 6ft HDMI cable
Features:
-
Splits DVI/HDMI signal to two or more HDTV displays
-
Connects two or more HD displays at the same time to the same
video source
-
Uses HDMI cables to connect to the input
-
Allows simultaneous display at local and remote locations
-
Supports 720I, 720P and 1080P resolutions
-
Supports HDCP compliant devices
-
Supports DDWG standard for HDMI compliant monitors
-
Installs in seconds
Specifications:
-
Video Amplifier Bandwidth:1.65 GHz
-
Single Link Range:1080P/1920 x 1200
-
Vertical Frequency Range: 50 - 85 Hz
-
Video Input: HDMI 19-pin Type A
-
Video Output: DVI-I (29 pin) female, Supports ONLY Digital
Signals
-
Power Consumption:15 Watts (max.)
-
Power Supply 5VDC
-
Dimensions: 6.5"W x 1.25"H x 4.625" D
-
Shipping Weight:4 lbs.
|
Why Cable Solutions?
In-stock items are ready for immediate shipment, and no one works
harder than we do to get your order shipped out to you fast! On business
days, orders that are funded by noon will ship the same day. Orders funded
on weekends or holidays will ship the next business day.
Customer service is our first priority. We do our best to help you find
the best solutions for your particular application. We're enthusiasts too,
so we know what it's like to wait for cables and accessories that are needed to
hook up new gear. We also know how important it is to be able to get a
response when you need help, so you'll often find us working long hours in an
effort to get you the answers that you need.
Design excellence, high quality materials, meticulous workmanship, and
superior service...put it all together and you get a superior product.
Don't get stuck with bad advice, poor service, slow shipment or an inferior
product. If you want the best, here it is.
Miscellaneous
Please click here to read our policies and disclaimer. Thanks for reading all of this! |
SKU Number: EXT-HDTV-142N
(MSRP: $249.00)
Our Price: $229.10
Click on any of the pictures below for a closer view!!

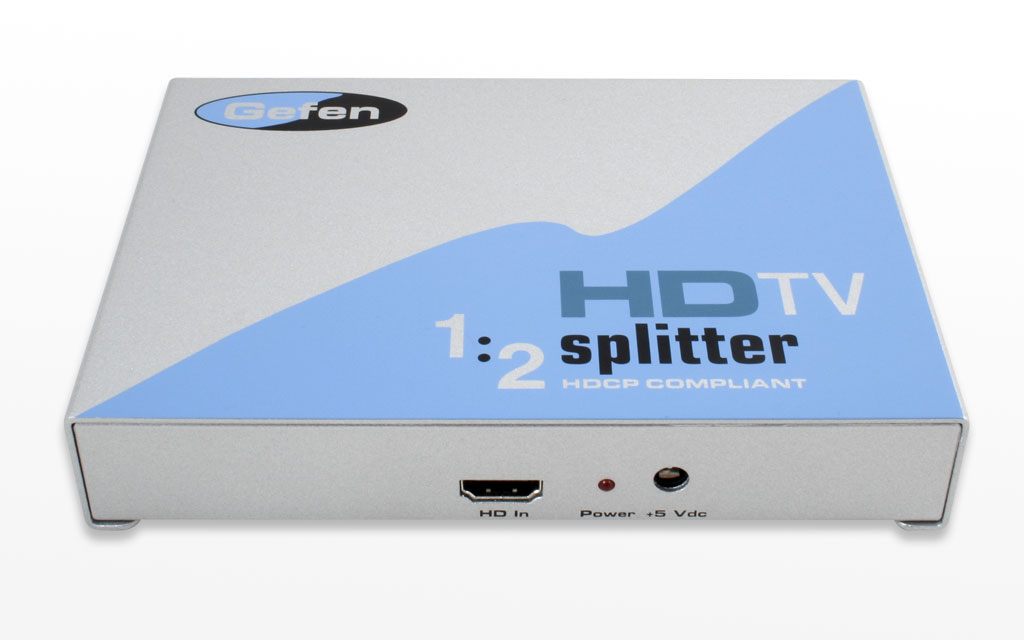

 Gefen EXT-HDTV-142N 1x2
HDMI/DVI splitter. There is an activity LED on the left and power indicator on the right.
Here is the back panel. From left to right, the input connector, output 1, output 2, the optical digital audio output, and the power connector can be seen.

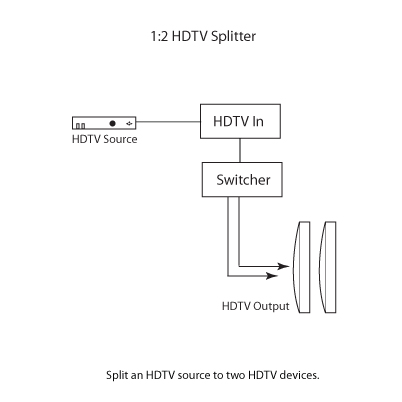

Here is a connection example.
|
