Gefen EXT-HDMI-141SBP HDMI Super Booster PLUS

Extend the range of copper HDMI cables up to 200 feet!

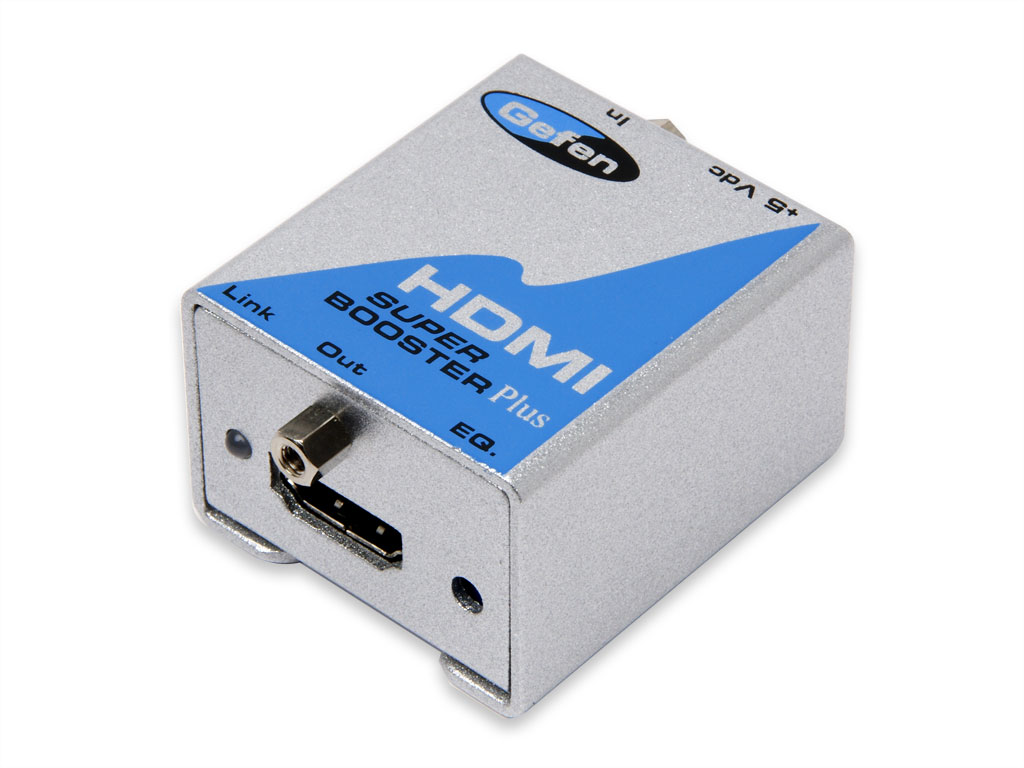

Gefen EXT-HDMI-141SBP HDMI Super Booster PLUS

Gefen EXT-HDMI-141SBP 3X1 HDMI Switcher

The Gefen EXT-HDMI-141SBP HDMI Super Booster PLUS features an improved design, making long HDMI cable runs easier than ever to accomplish.  This new model features selectable automatic or manual cable length equalization.

The device works with all HDMI cables, although high-quality cables yield the best results at longer lengths and/or higher resolutions.

The EXT-HDMI-141SBP HDMI Super Booster is a single-ended solution - just place it near the monitor, connect the long cable from the source to the HDMI Super Booster, then use a short HDMI cable to connect the Super Booster to your monitor.

HDMI cables are not included, but we do have a wide selection of Gefen cables available here.

Warranty

Cable Solutions backs the EXT-HDMI-141SBP with a one year limited warranty against defects in materials and workmanship.  This warranty is separate from any warranty that may be provided by the manufacturer, so you must contact Cable Solutions for all warranty-related issues.

Gefen's Description

Extend the range of your copper HDMI cables -- up to 200 feet!

The new Gefen HDMI Super Booster Plus allows you to extend the reach of copper HDMI cables up to 200 feet from the video source, while fully supporting High-Definition display protocols to insure maximum compatibility with the way that high-definition signals are encoded today and in the future.

With the new Plus model, improved DDC signal robustness is added, giving robustness to electrical signals that negotiate delicate resolution and frequency settings, for even greater precision than ever before.

How It Works

Simply attach your long HDMI extension cable to your video source, then place the HDMI Super Booster Plus on the other end near the monitor. Attach the monitor's video cable to the other side of the Booster and power-cycle all your equipment including video source and display. You should then see a beautiful HDMI picture at the remote display as if it was right at the local video source.

Note: This device fully passes HDCP.

Features:

  • Fully HDCP and HDMI compliant
  • Compact, portable device
  • Wall-powered for extra amplification power
  • Based on proven Gefen Super Booster technology

Specifications:

  • Video Amplifier Bandwidth: 165 MHz
  • Input Video Signal: 1.2 volts p-p
  • Input DDC Signal: 5 volts p-p (TTL)
  • Single Link Range: 1080p/1920 x 1200
  • HDMI™ Connector: type A 19 pin female
  • Dimensions: 1.6"W x 1.1"H x 1.8"D
  • Shipping Weight: 1 lb.

Package Includes:

  • HDMI Super Booster device
  • 5V DC Power Supply
  • User's Guide

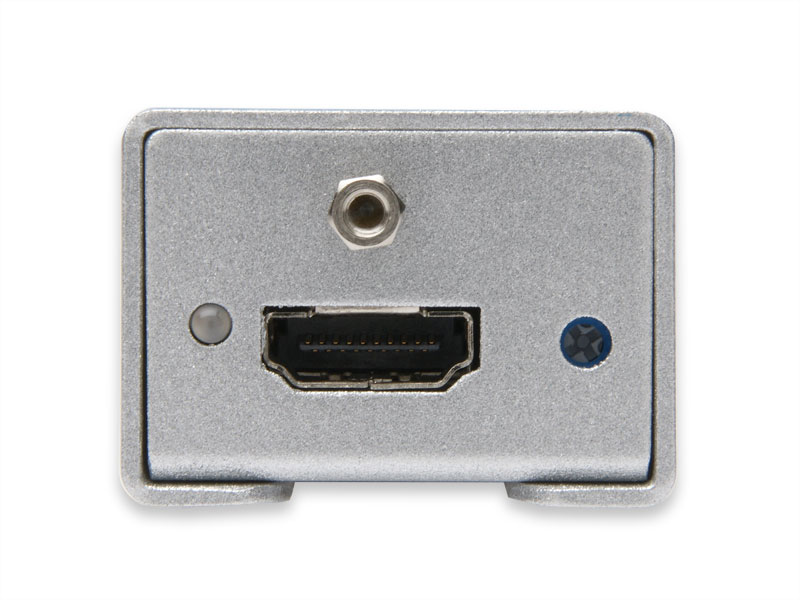

Gefen EXT-HDMI-141SBP HDMI Super Booster PLUS - output

Here is a closer look at the front of the Super Booster PLUS. The HDMI output connector as well as the EQ adjustment can be seen here.

Gefen EXT-HDMI-141SBP HDMI Super Booster PLUS - input

This is the back panel. The power connector and HDMI input connector can be seen here.

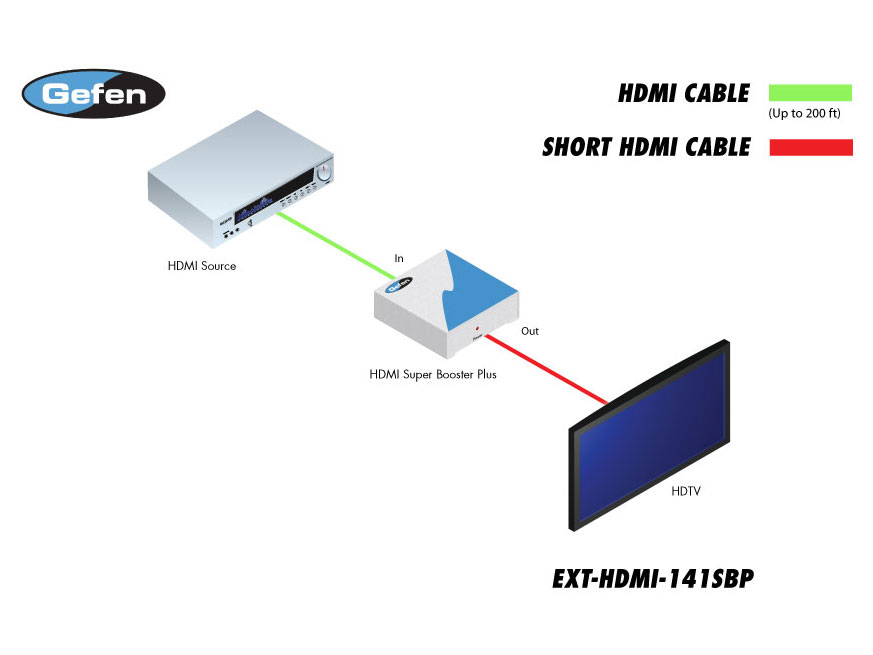

Gefen EXT-HDMI-141SBP HDMI Super Booster PLUS - connection example

Here is a connection example.

 Gefen EXT-HDMI-141SBP HDMI Super Booster PLUS - User Manual

This is the User Manual - click to download in PDF format.
