Gefen EXT-COMPAUD-2-HDMID Component Video and Digital Audio to HDMI Converter

Active Adapter Box

Gefen EXT-COMPAUD-2-HDMID Component Video and Digital Audio to HDMI Converter

Gefen EXT-COMPAUD-2-HDMID Component Video and Digital Audio to HDMI Converter

The Gefen EXT-COMPAUD-2-HDMID makes it simple to use analog component video source components in an otherwise digital system.

The Gefen Component + Digital Audio to HDMI Adapter converts Y/Pb/Pr component video and optical digital audio to a digital format, then combines the resulting video and audio onto a standard HDMI data stream.  This HDMI signal is in a standard HDMI format, so it can easily be switched and distributed, right along any other HDMI signals that you may have in your system.

Warranty

Cable Solutions backs the EXT-COMPAUD-2-HDMID with a one year limited warranty against defects in materials and workmanship.  This warranty is separate from any warranty that may be provided by the manufacturer, so you must contact Cable Solutions for all warranty-related issues.

Gefen's Description

Convert Component Video and Digital Audio to HDMI

The Component + Digital Audio to HDMI™ Adapter is a unique device that allows older analog devices to be integrated seamlessly into the modern home theater. This adapter connects component video home theater devices to HDMI™ compliant digital monitors. This adapter also takes digital audio and encodes it onto the HDMI signal for the full HDMI video and audio effect. With the Component + Digital Audio to HDMI Adapter legacy home theater devices can be easily connected any HDMI display for the full digital video and audio experience.

How it works

Simply connect the supplied Component cable to the input side of the Component + Digital Audio to HDMI™ Adapter. Then connect the TOSLink digital audio cables to the audio input of the Component + Digital Audio to HDMI Adapter. Then connect the HDMI display or projector to the HDMI output of the Component Audio to HDMI Adapter. The adapter generates the compatible analog to digital conversion signals for video as well encoding the audio onto the HDMI to make the connection between the analog inputs and the digital output work.

Package Includes:

  • Component + Digital Audio to HDMI Adapter
  • One 5V Power Supply
  • One 6 ft TOSLink Digital Audio Cable
  • Users Manual

Features:

  • Allows you to connect YPbPr HDTV sources to an HDMI™ display
  • Encodes digital audio onto the video signal for HDMI™ video and audio
  • Supports HDTV/YPbPr
  • Supports HDTV resolution up to 1080p
  • HDMI™ compliant

Specifications:

  • Digital Video Amplifier Bandwidth: 165 MHz
  • Video Amplifier Bandwidth: 350 MHz
  • Input Video Signal: 1.2 volts p-p
  • Input DDC Signal: 5 volts p-p (TTL)
  • HDMI Connector: type A (19 pin) female
  • Video Connector: 3 RCA Component
  • Audio Connector: digital TOSLink
  • Power Consumption: 10 watts (max)
  • Power Supply: 5V DC
  • Dimensions: 4"W x 1"H x 4"D
  • Shipping Weight: 2 lbs.

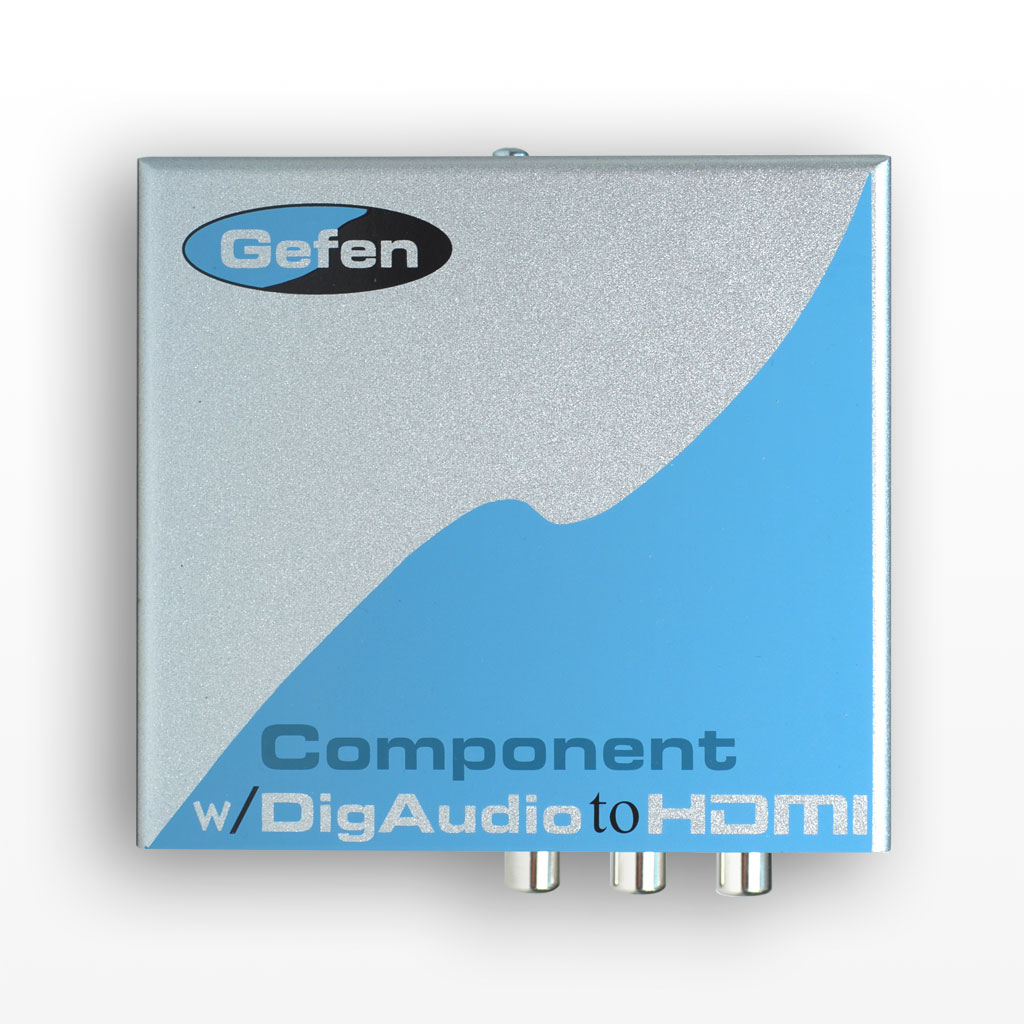

Gefen EXT-COMPAUD-2-HDMID Component Video and Digital Audio to HDMI Converter - front panel

Here is the HDMI output panel

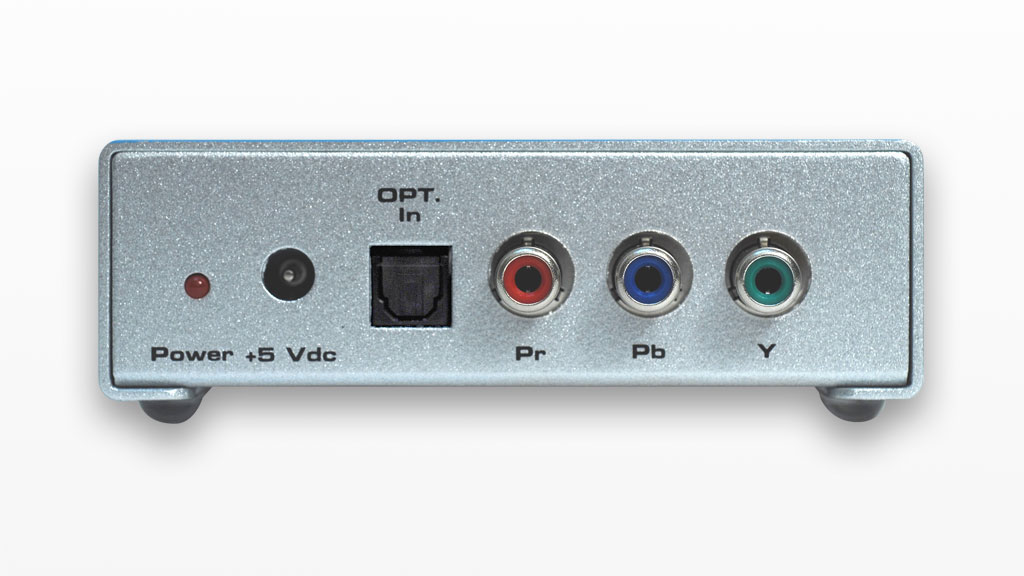

Gefen EXT-COMPAUD-2-HDMID Component Video and Digital Audio to HDMI Converter - back panel

On this panel, a power status LED, power, optical digital audio, and component video inp0ut jacks can be seen.

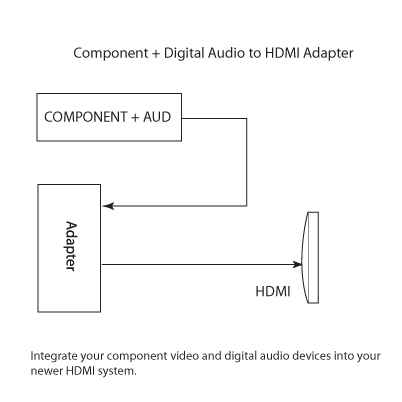

Gefen EXT-COMPAUD-2-HDMID Component Video and Digital Audio to HDMI Converter - connection example

This is the product flyer - click to download in PDF format.

Gefen EXT-COMPAUD-2-HDMID Component Video and Digital Audio to HDMI Converter - manual

This is the User Manual - click to download in PDF format.

Special Pricing
Product Description SKU MSRP Close-out Pricing Quantity
Gefen Component Video and Digital Audio to HDMI Converter EXT-COMPAUD-2-HDMID $249.00 SOLD OUT SOLD OUT
SSL Secure Site Logo This item has been discontinued.  Please contact us for alternatives.
