Cable Solutions "Signature Series 77" Coaxial Digital Audio Interconnect Cable

with Canare's Remarkable "True 75 Ohm" Connectors

Quest for Flawless Performance

We have found that connectors are key to great cable performance.  Exotic conductors and shielding are fine, but in our experience, the connectors can make more difference than the cable itself.

Ironically, the most common connector used for interconnecting consumer A/V gear may also be the worst connector in general use today.  Generic RCA type audio plugs and cables have been around for over 50 years, but the old solder-type plugs typically have an impedance of about 25 ohms. They exhibit extremely poor return loss performance, even when mated to high quality cable.  Some of the most expensive "high end" cables still rely on connector designs that are both electrically and mechanically inferior.

With this in mind, we have chosen Canare's excellent "True 75 Ohm" RCA crimp plugs for our Signature Series cables.  They are impedance matched to ensure flawless digital audio performance.  They have a usable bandwidth of over 200 MHz and VSWR is typically less than 1.1:1 from DC to 200 MHz!  The design ensures highly consistent, reliable connections.

Canare connectors connect up smoothly to protect your equipment investment.  If you look at the picture at the lower right, you can see the gold-plated center shaft.  If you click on the picture, you can get a better look at the gold-plated beryllium copper internal pressure fingers.  The design ensures excellent contact, while solving the "grip of death" problem that can be an issue with Monster and some of the other manufacturers' connectors.  (Those "grip of death" connectors put unnecessary strain on your equipment!)

We install the connectors using Canare tools that always prepare the cable ends just right. The connectors are crimped in place, using heavy, precision-machined dies. The crimps are so tight that oxygen is excluded.  This exclusion prevents the corrosion that can degrade even the best soldered connections.

Our Signature Series cables feature custom-imprinted color-coded heat-shrinkable tubing.  This full-coverage sheathing creates a more unified termination, which helps to dampen mechanical vibrations, known as "microphonics" that can occur in cables when high sound levels are present.  By mechanically dampening these vibrations, we minimize the stray signals that are induced when the cables move through environmental EM fields.

From a usability perspective, our smooth cable assembly helps prevent snagging.  If you do a lot of cabling work, setting up and knocking down systems, you know what I mean.

The Cable

We use oversized 7.7mm Canare precision coaxial cable.  We use only select cuts of the cable, from the outer part of the spool, so curl and dielectric deformation are minimized.  It is big coax, but the stranded center conductor and braided shielding ensure excellent flexibility and long life.  The cable's compliant nature makes it easy to handle and route.

To ensure the flawless transmission of your digital signal, this high-performance cable features two layers of braided copper shielding.  This outstanding cable joins Canare's impedance matched connectors and our fully sheathed terminations in the quest for bit-perfect digital audio.  In short, you will get the best digital sound that your system can deliver.

Editor's note: The almost infamous Canare DigiFlex Gold cable assemblies use a smaller, 6.1mm, single-shielded, version of this cable.  They have earned many glowing reviews...just imagine what they will say when they review this one!

Why Cable Solutions?

Customer service is our first priority.  We do our best to help you find the best solutions for your particular application.  We're enthusiasts too, so we know what it's like to wait for cables to hook up new gear.  We stock all of the components needed to build all of the items that we have listed, so we are able to do something that most cable shops do not - we build and ship most orders within one business day.  We also know how important it is to be able to get a response when you need help, so you'll often find us working long hours in an effort to get you the answers that you need.  It takes good people to do outstanding work...the kind of workmanship you want for your custom cables.  The importance of high-quality workmanship is second only to the importance of  superior service.  I'll let you figure out for yourself why paying too little for a cable can turn out to be just as bad as paying too much. Our pricing is based upon the actual cost of building the cables.

Canare cable, Canare connectors, and Canare tools - an all Canare system.  When you take a system this good and put it in the hands of technicians as good as ours, it becomes an awesome system!  Design excellence, high quality materials, meticulous workmanship, and superior service...put it all together and you get a superior product.  Don't get stuck with bad advice, poor service, slow shipment or an inferior product.  If you want the best, here it is.

Miscellaneous

Please click here to read our policies and disclaimer.  Thanks for reading all of this!

Click on any of the pictures below for a closer view!

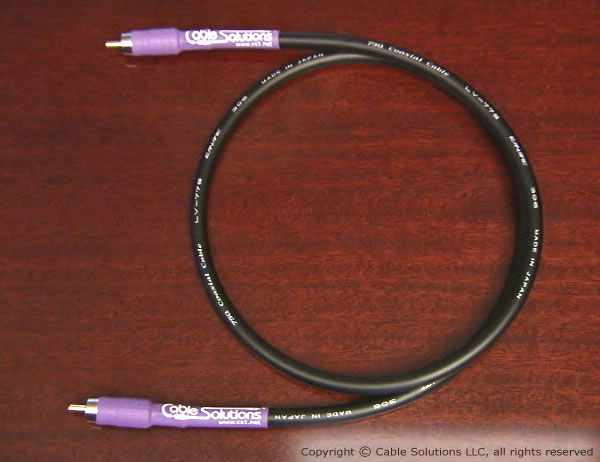

Pictured here is a 1 meter Cable.  Please select the length that you prefer below.




Here is a closer look at an end preparation.  Our Signature shrink tubing gives this cable a distinctive custom look while providing mechanical damping and essential strain-relief at the connector.




Those of you who handle a lot of patch cables will appreciate the snag resistant design...this cable assembly is nice and smooth.




Here is a shot from another angle.




The gold-plated beryllium copper pressure fingers can be seen in this extreme close-up




In this photo, you can see the Canare BNC-male termination option in great detail.
