Audio Authority FlexPort Modules

Flexible Input Options for SonaFlex Audio Systems

Audio Authority Authorized Reseller Seal

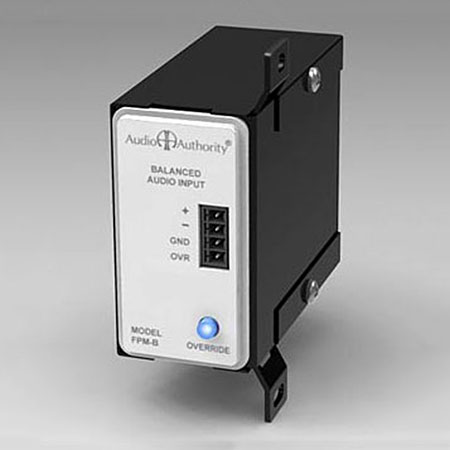

Audio Authority FPM-B FlexPort Module

Audio Authority FPM-B FlexPort Module

Audio Authority's FlexPort audio modules provide up to four additional audio inputs (2 per FlexPort input) to each SF-16M 16-channel digital zone amplifier.

FlexPort modules connect via Cat 5 cable to the SF-16M and accept a wide variety of pro and consumer audio sources. All FlexPort modules can be located up to 500 feet from the SF-16M and include mounting points for either surface or in-wall mounting in an “open ended” single gang bracket such as Arlington model LV1 or Carlon model SC100RR.

FPM-X - XLR/ 1/4” TRS Input with Phantom Power

  • Accepts any 3-wire balanced line or mic level audio input via a combo XLR/ 1/4” TRS input
  • Override button (defeatable) with backlighting to indicate audio override status
  • 15V phantom power (defeatable) for condensor microphones
  • Input gain potentiometer
  • Input can be assigned as Dual Mono (2 mono channels), Mono 1 or Mono 2 on the FlexPort audio bus
  • Optional “Mix” setting allows two FlexPort modules to be mixed together on a single FlexPort audio bus (both inputs must be assigned to a mono channel)

FPM-B - Balanced Line/Mic Input with Phantom Power

  • Accepts any 3-wire balanced line or mic level audio input
  • “Override” contact closure input for push-to-talk paging mics such as Bogen model MBS1000A
  • Override button (defeatable) with backlighting to indicate audio override status
  • 15V phantom power (defeatable) for condensor microphones
  • Input gain potentiometer
  • Input can be assigned as Dual Mono (2 mono channels), Mono 1 or Mono 2 on the FlexPort audio bus
  • Optional “Mix” setting allows two FlexPort modules to be mixed together on a single FlexPort audio bus (both inputs must be assigned to a mono channel)

FPM-U - Analog Audio Input

  • Accepts any analog RCA audio input
  • Override button (defeatable) with backlighting to indicate audio override status
  • Input can be assigned as Stereo (default), Mono 1 or Mono 2 on the FlexPort audio bus
  • Optional “Mix” setting allows two FlexPort modules to be mixed together on a single FlexPort audio bus (both inputs must be assigned to a mono channel)

FPM-D - Digital Coax/Optical Input

  • Accepts any digital SPDIF coax or optical audio input (Stereo PCM only)
  • Override button (defeatable) with backlighting to indicate audio override status
  • Input can be assigned as Stereo (default), Mono 1 or Mono 2 on the FlexPort audio bus
  • Optional “Mix” setting allows two FlexPort modules to be mixed together on a single FlexPort audio bus (both inputs must be assigned to a mono channel)
  • Analog audio output (pass-thru) for applications where a converted analog output is desired

More Information

  • FlexPort Application Example: Restaurant with Live Music

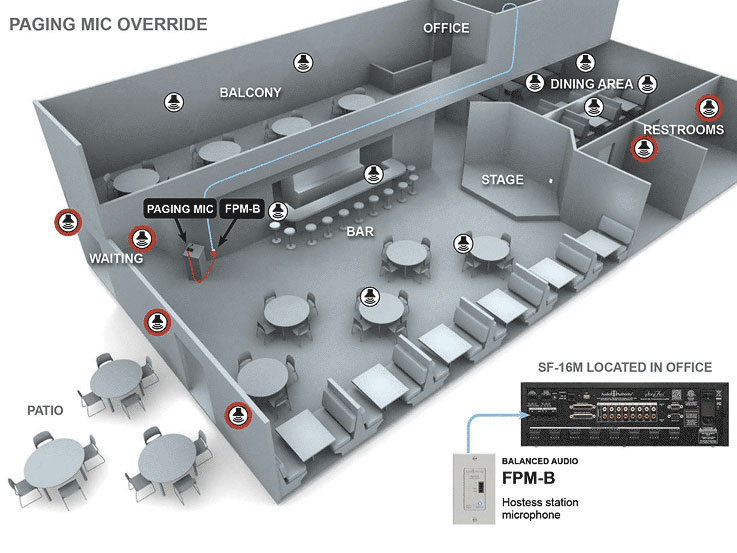

    In this application drawing, the SF-16M amplifies audio to 6 speakers in the main dining area, 4 in the bar, 2 in the restrooms, 2 in the waiting area and 2 on the patio. The equipment rack, located in the office, includes a streaming media player, Sirius radio and a 5-disc CD changer for background music. The bar area, which includes a stage for live music, includes an FPM-X FlexPort module. The FPM-X accepts the XLR output from a local mixer at the stage. Prior to live performances the sound operator presses the FPM-X override button, which switches to his audio mixer in the dining area and the bar.  At the hostess stand, a push-to-talk microphone is connected to a FPM-B module, which overrides audio in the waiting area, restrooms and outside with paging announcements.

  • SF-16M 16-Channel Audio Matrix Amplifier

Like most Audio Authority products, the SF-16M comes with a one year limited warranty from the manufacturer.

Audio Authority FPM-X - XLR/ 1/4” TRS Input with Phantom Power

FPM-X - XLR/ 1/4” TRS Input with Phantom Power

Audio Authority FPM-B - Balanced Line/Mic Input with Phantom Power

FPM-B - Balanced Line/Mic Input with Phantom Power

Audio Authority FPM-U - Analog Audio Input

FPM-U - Analog Audio Input

Audio Authority FPM-U - Analog Audio Input

FPM-U - Analog Audio Input

Audio Authority FPM-B FlexPort Application Drawing

 Audio Authority FPM-B FlexPort Application Drawing



Audio Authority SonaFlex SF-16M Focus Sheet - click to download PDF

Audio Authority SonaFlex Series focus sheet - click to download PDF.

Audio Authority SonaFlex SF-16M Manual - click to download PDF

Audio Authority SonaFlex Series Manual - click to download PDF.

Purchase Information
Description de SKU MSRP Your Price Quantity
FlexPort XLR/ 1/4” TRS Input with Phantom Power Module FPM-X $159.00 $143.00
FlexPort Balanced Line/Mic Input with Phantom Power Module FPM-B $159.00 $143.00
FlexPort Analog Audio Input Module FPM-U $139.00 $125.00
FlexPort Digital Coax/Optical Input Module FPM-D $169.00  $152.00
