Audio Authority 2811 HD-IP™
HDMI over Gigabit IP Receiver

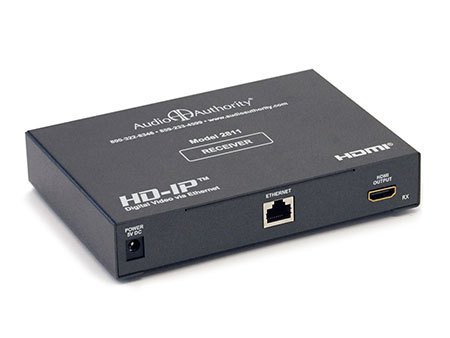

Audio Authority 2811 HDMI over Gigabit IP Video Distribution Receiver
Use these Audio Authority 2811 HDMI over Gigabit IP Video Distribution Receivers with Audio Authority's 2801 transmitters to distribute high-resolution HDMI over gigabit IP.
Advanced Gigabit Ethernet technology enables HDMI® to be transmitted over a single Cat 5e or Cat 6 cable. Transmitter/receiver system provides a long distance, high reliability solution capable of distributing the latest 1080p video sources.
The system offers exceptional picture quality and reliability, using only a single Cat 5e/6 cable for signal transmission. Use up to 127 2811 receivers with each 2801 transmitter.
Read more about this ground-breaking system from Audio Authority on our 2800 Series product page.
Like most Audio Authority products, the 2811 comes with a one year limited warranty from the manufacturer.
Audio Authority's Description
HD-IP™ Gigabit Video Distribution Receiver
Model 2811
Overview
The 2800 series of HD-IP™ products is perfectly suited to digital signage and other video distribution applications. The system is capable of transmitting 1080p video content up to 250 feet in one run without any loss of quality, and supports an almost unlimited number of HDTV displays. Using Gigabit Ethernet technology, picture quality is maximized while overcoming the slow handshake times, poor cable integrity, and distance limitations of traditional HDMI distribution amplifiers. Using off-the-shelf Gigabit IP switches, a system can be extended for even more distance, or expanded to add more displays. This plug and play system is incredibly simple to install - just connect a single Cat 5e or Cat 6 from the 2801 transmitter to a gigabit switch, then feed the cables from the switch to a network of 2811 receivers.
- Gigabit HD-IP™ technology maximizes picture quality
- HDMI version 1.3 and HDCP version 2.0 compliant
- Supports 1080p and 720p video, plus audio
- One source feeds an almost unlimited number of HDTVs (127)
- Uses off-the-shelf gigabit IP switches for extension and distribution
- Plug-and-play operation - no programming or setup required
- Extends 1080p HDMI signals up to 250 feet on a single run
- Cable runs can be extended another 250 feet by adding a Gigabit Ethernet switch
Features
Key Features
- Gigabit HD-IP™ technology maximizes picture quality
- HDMI version 1.3 and HDCP version 2.0 compliant
- Supports 1080p and 720p video, plus audio
- One source feeds an almost unlimited number of HDTVs (127)
- Uses off-the-shelf gigabit IP switches for extension and distribution
- Plug-and-play operation - no complex setup routines or programming
Specifications
Video Parameters
- Video Formats: 1080p, 720p
- Data Rate: 2.25 Gbps
- Clock Rate: 225 MHz
Audio Parameters
- Formats supported: 2-channel PCM
- Min Load Impedance: 75 ohms/10K ohms
- Multi-channel Digital: Converts multi-channel signals to 2-channel PCM for maximum compatibility
Miscellaneous
- Requires Gigabit Ethernet switches (1000BASE-T) for extension or distribution/splitting
- Connector Types: 1 x HDMI Type A (female), 1 x RJ-45
- Dimensions (inches, HxWxD): 1.25 x 6.35 x 4.5
- Product Weight: [1.20 lbs. (2811 unit only) per Cable Solutions]
- Shipping Weight: [2.25 lbs. (in product box) per Cable Solutions]
- Agency Approvals: TBD
- DC Input Connector: [5.5mm per Cable Solutions]
- DC Input Voltage/Polarity: 12V/Center Positive
- Max DC Input Current: 2.5A
In the Box
- (1) 2811 Receiver
- Power Supply
- User Manual
Downloads
Documents
- Product Focus Sheet: 2800 series
- User Manual: 2800 series

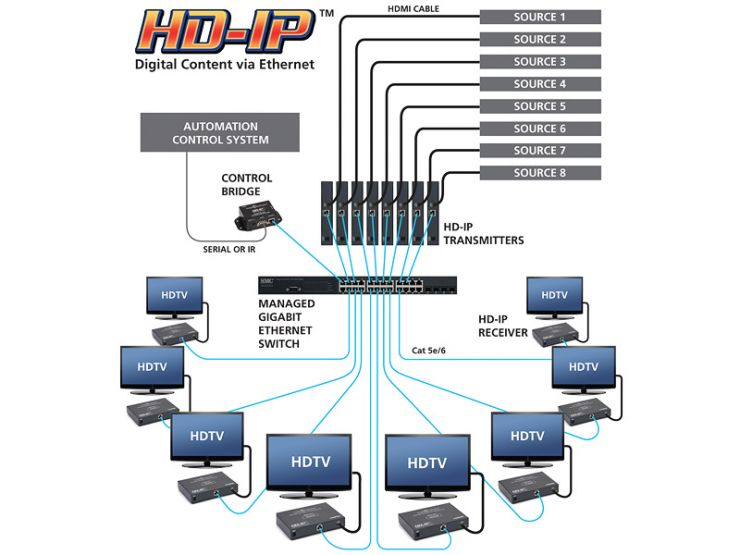

Here is a single-source connection example.
This is the Product Focus sheet in PDF format.
Click here to download the HD-IP Manual in PDF format.
