The Audio Authority 1362 Video Converter makes it simple to convert standard-definition NTSC or PAL sources
to HDTV or computer monitor formats. The 1362 can handle composite, S-Video, standard-definition component
(YCbCr), or RGsB video inputs, and the output can be configured for a wide variety of YPbPr component or
RGBHV computer-style video formats. Check out the user manual at the lower right for more details.
With it's high-quality video scaler, the 1362 provides both colorspace and format conversion. Among
the many possible applications for this device, the 1362 provides an ideal solution for the integration
of SD sources into HD distribution systems.
Dimensions are 1" H x 7" W x 4" D. Like most Audio Authority products, the model 1362 comes with
a one year limited warranty from the manufacturer.
Audio Authority's Description
Composite/S-Video to YPbPr/VGA Converter
Model 1362
The Model 1362 converts composite video, S-Video, and YCbCr component video to YPbPr component
video or VGA output. High performance video conversion solution with onscreen menus for setup.
Ideal for interfacing non-component sources with a component video matrix, like the Audio Authority
AVAtrix.
Connect a source and display, then use the 1362 onscreen menu to make adjustments
- Composite video, S-Video or YCbCr inputs to PC/HD outputs
- PC resolutions to 1280x1024
- All HDTV progressive scan resolutions
- 32Mb frame memory
- Integral picture adjustments
- Onscreen display for setup and adjustment
User Manual (PDF file)
|
Included items
The 1362 package is complete with the 1362 device itself, universal 100-240 volts @ 50-60 Hz
AC power supply, composite video input cable, 8-pin Mini-DIN to 3-RCA Cable, 6 foot HD-15 VGA-style cable,
and user manual.
Why Cable Solutions?
Cable Solutions is an Audio Authority Authorized Reseller, so our customers get the full benefit of Audio
Authority's factory-direct support and warranty.
This item is in stock and ready for immediate shipment, and no one works harder than we do to get your
order shipped out to you fast! On business days, orders that are funded by noon will ship the same
day. Orders funded on weekends or holidays will ship the next business day.
Customer service is our first priority. We do our best to help you find the best solutions for
your particular application. We're enthusiasts too, so we know what it's like to wait for cables and
accessories that are needed to hook up new gear. We also know how important it is to be able to get
a response when you need help, so you'll often find us working long hours in an effort to get you the answers
that you need.
Design excellence, high quality materials, meticulous workmanship, and superior service...put it all
together and you get a superior product. Don't get stuck with bad advice, poor service, slow shipment
or an inferior product. If you want the best, here it is.
Miscellaneous
Please click here to read our policies and disclaimer. Thanks
for reading all of this!
|
SKU Number AAC 1362
MSRP: $299.00
Our Price: $269.00
Cable Solutions is an Audio Authority Authorized Reseller, so
our customers get the full benefit of Audio Authority's factory-direct support and warranty.
Click on any of the pictures below for a closer view!!

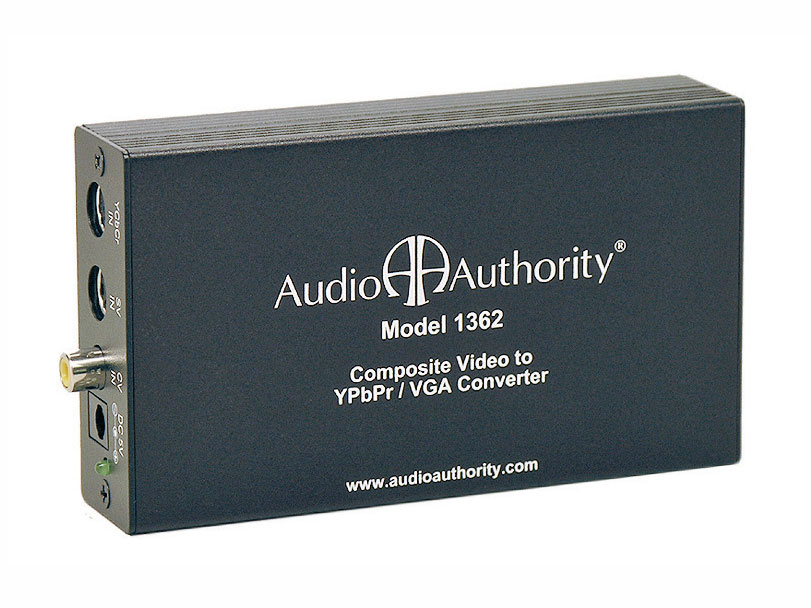

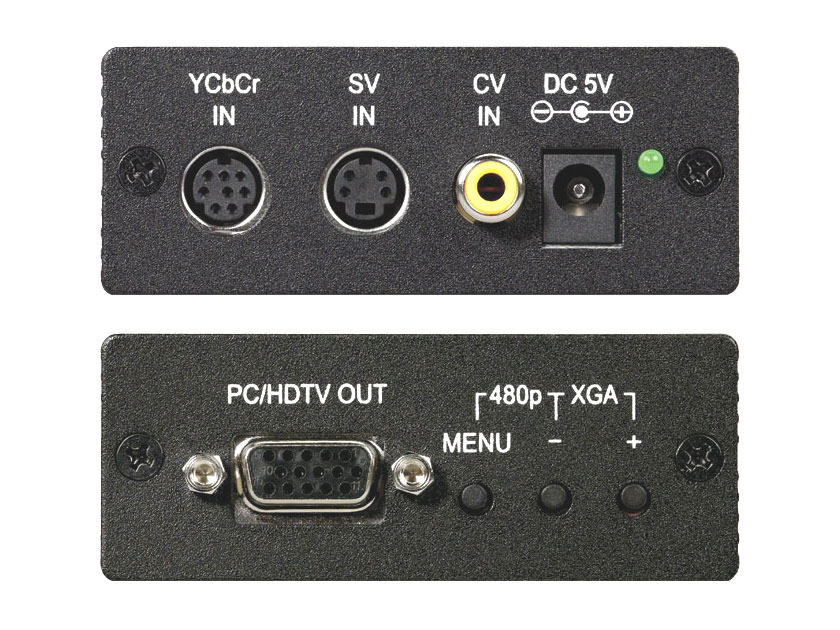

The Audio Authority 1362. Inputs on the left side of the device (from top to bottom) are Y/Cb/Cr (via
mini-DIN), S-Video, composite video, power connector, and an power indicator LED..

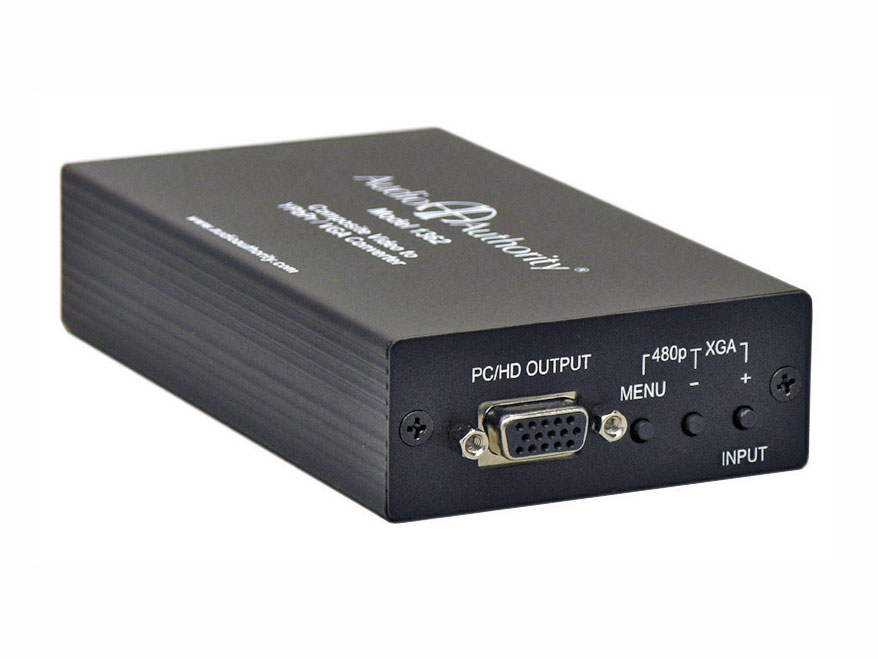

Here is the output side of the 1362, As you can see, the VGA-style HD-15 connector is on the left,
and buttons for access to the on-screen menu system ar on the right.
Here is the User Manual in PDF format.
|
