The Audio Authority 1361 Component Video or PC Down-converter provides an elegant solution for using
standard definition televisions in HDTV distribution systems, or with computers. It solves problems with mismatched
formats and resolutions. It can handle any HDTV format up to 1080i, and it is also appropriate for
computer resolutions up to 1600 x 1200 @ 60Hz.
Supported HDTV input resolutions include 480i/p, 576i/p, 720p, and 1080i. PC input resolutions include VGA,
SVGA, XGA, SXGA, and UXGA. If you need to down-convert 1080p, you might want to consider the Model 1360. The Model 1361 features simultaneous output via composite video,
S-Video, and component video.
The Model 1361 comes with an IR remote control, making it simple manage scaling, pan, position, zoom and aspect
ratio. Dimensions are 2" H x 8" W x 6" D.
Like most Audio Authority products, the model 1361
comes with a one year limited warranty from the manufacturer.
Audio Authority's Description
Digital Optical to Coaxial Audio Converter
Model 977RPO
If you need to distribute the same video signal to TVs with HD component inputs as well as TVs
with composite or S-Video inputs, you need the 1361.
Downconverts HDTV or PC signals to 480i component, s-video, or composite output. Features
passthrough.
For simple component to composite or s-video applications, consider the
Model 1360.
Perfect for interfacing HD and SD signals from an Audio Authority AVAtrix system into a
standard-definition television.
Mixed Signal Distribution Systems
Many satellite receivers and cable boxes do not offer simultaneous output on YPbPr and
composite outputs. To distribute the same signal to TVs with HD component inputs as well as TVs
with composite or S-Video inputs, a quality down-converter is needed to make both resolutions of
the same content available to the distribution system.
- Switchable PC or HDTV Inputs
- NTSC or PAL Outputs, Composite, S-Video or Component
- Supports PC Inputs up to UXGA (1600x1200@60Hz)
- Supports HDTV inputs up to 1080i
- Loop thru inputs - Both PC and HDTV
- Adjustable image scaling: Pan, Position and Zoom
- Aspect Ratio adjustment
- Remote Control with On Screen Display
- Supplied with PC Input/Output Cable, Component, Composite and S-Video Output Cables
Model 1361 Component Down Converter generates a standard analog NTSC or PAL video signal from
an HD component or PC video signal. Output is either composite and S-Video or standard definition
component (YCbCr) format, with HD Pass-thru. Any HD signal up to 1080i can be converted to
standard analog video. It can also handle computer resolutions up to UXGA (1600 x 1200 at 60Hz)
vertical refresh rate.
The Model 1361 settings are controlled via front panel push-button, an IR remote or an RS-232
interface. The over-scan feature allows you to fill the entire video screen. The aspect ratio can
be switched between wide screen and standard display.
Product Dimensions (H-W-D, inches):
Downloads
|
Included Items
The 1361 package is complete with the device itself, IR remote control, power supply, PC input/output cable, as well as
component, composite and S-Video output cables, and an owner's manual.
Why Cable Solutions?
Cable Solutions is an Audio Authority Authorized Reseller, so our customers
get the full benefit of Audio Authority's factory-direct support and warranty.
This item is in stock and ready for immediate shipment, and no one works
harder than we do to get your order shipped out to you fast! On business
days, orders that are funded by noon will ship the same day. Orders funded
on weekends or holidays will ship the next business day.
Customer service is our first priority. We do our best to help you find
the best solutions for your particular application. We're enthusiasts too,
so we know what it's like to wait for cables and accessories that are needed to
hook up new gear. We also know how important it is to be able to get a
response when you need help, so you'll often find us working long hours in an
effort to get you the answers that you need.
Design excellence, high quality materials, meticulous workmanship, and
superior service...put it all together and you get a superior product.
Don't get stuck with bad advice, poor service, slow shipment or an inferior
product. If you want the best, here it is.
Miscellaneous
Please click here to read our policies
and disclaimer. Thanks for reading all of this!
|
Click on any of the pictures below for a closer view!

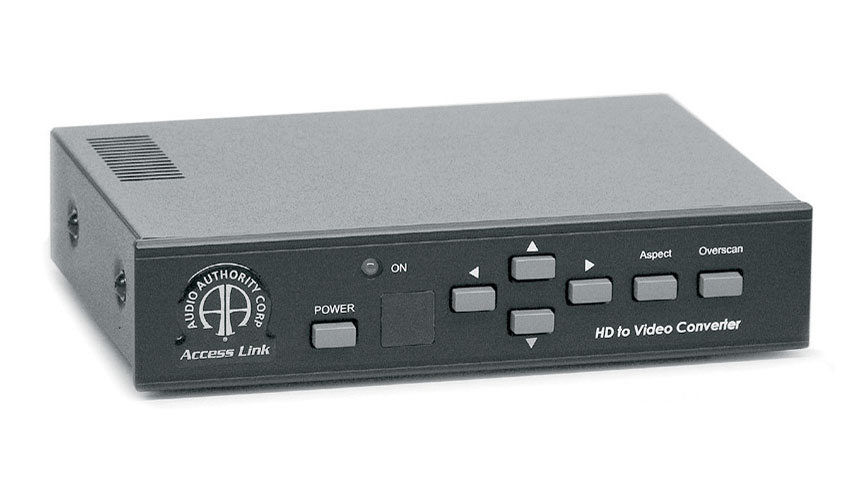

The Audio Authority 1361. Dimensions are 2" H x 8" W x 6" D.

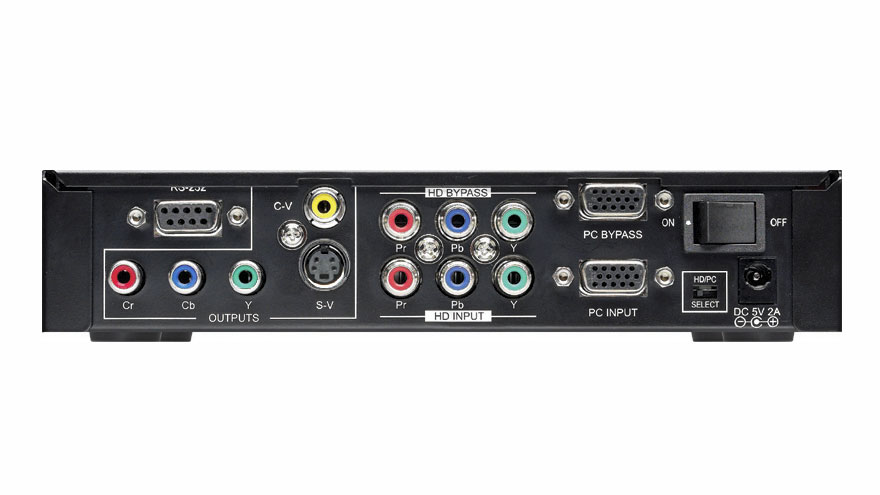

Here is the back panel of the device. As you can see, the center area has inputs for both
component video and VGA, as well as pass-through outputs for each of those inputs. SD component
video, composite and S-Video outputs are on the left side of the panel. The "RS-232" connection is
for third-party remote control applications. The power switch, HD/PC selector switch and power
connection are on the right side of the panel.

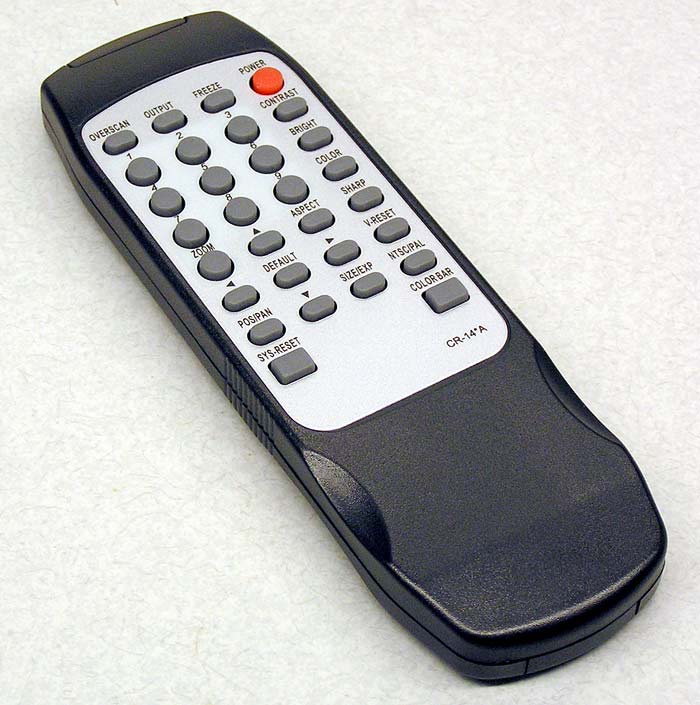

Here is the included IR remote control.
This is the 1361 product focus sheet. Click to download PDF.
Here is the user manual.
Click to download in PDF format.
 This chart compares the 1361 to the Audio Authority
1360. Click to download in PDF format.
