Use the Audio Authority model 1176 CAT 5 Matrix Router Expander to add up to six Cat-5 receivers to the
1156 / 1166 AutoSelector, or the AVAtrix AVX-561-NR /
AVX-661-NR Whole-House Routing Systems. Multiple 1176 units can be stacked to expand
system capacity to accommodate up to 36 wallplates!
The 1176 driver system can transmit video and audio up to 1000 feet without any frequency roll-off or signal attenuation,
so colors and details are faithfully preserved for your maximum enjoyment.
Audio Authority's Description
|
When stacked with an 1166 or 1156 AutoSelector™ one 1176 allows for 6x6 matrix distribution over Cat 5
cables to remote Wallplate locations - an ''AVAtrix''. Each 1176 expander increases the output capacity of
an AVAtrix system by six Wallplate outputs. A single system can include up to 36 Wallplate outputs.
To use more than three 1176s, use the 802-568 Bus Cable extension.
|
Additional Information
Here is the Installation and Operation Manual
for Model 1176 in PDF format.
Also in PDF format, you may also find the 1100 series brochure
to be helpful in understanding how all of the various components can be used together.
Why Cable Solutions?
Cable Solutions is an Audio Authority Authorized Reseller, so our customers get the full benefit of Audio Authority's
factory-direct support and warranty.
This item is in stock and ready for immediate shipment, and no one works harder than we do to get your order shipped
out to you fast! On business days, orders that are funded by noon will ship the same day. Orders funded
on weekends or holidays will ship the next business day.
Customer service is our first priority. We do our best to help you find the best solutions for your particular
application. We're enthusiasts too, so we know what it's like to wait for cables and accessories that are needed
to hook up new gear. We also know how important it is to be able to get a response when you need help, so you'll
often find us working long hours in an effort to get you the answers that you need.
Design excellence, high quality materials, meticulous workmanship, and superior service...put it all together and
you get a superior product. Don't get stuck with bad advice, poor service, slow shipment or an inferior product.
If you want the best, here it is.
Miscellaneous
Please click here to read our policies and disclaimer. Thanks for reading all
of this!
|
SKU Number AAC 1176
MSRP: $699.00
Click on any of the pictures below for a closer view!

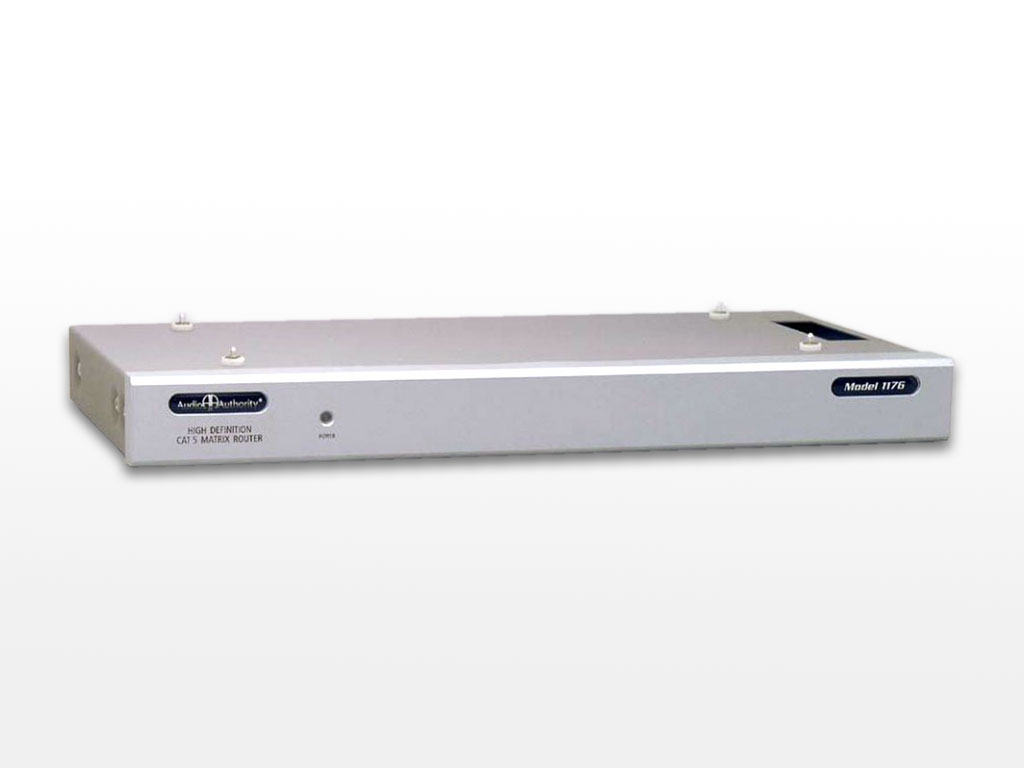

Audio Authority 1176

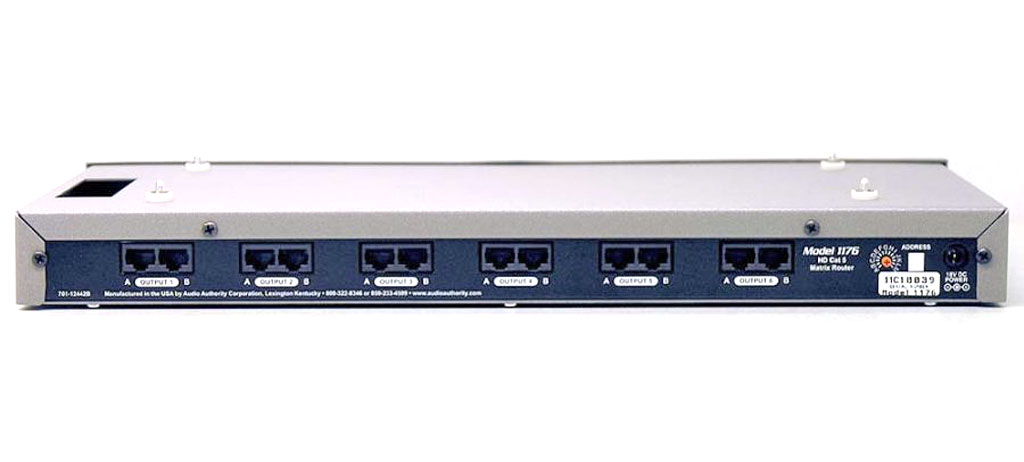

Here is a look at the back panel.

This drawing details the front and back panels.

Here is a typical connection example. In this representation, an
1156 is stacked
on top of the1176. In this example, the 1176 is driving six 9878 wallplates. Additional
1176 units can be stacked to increase capacity up to 36 wallplates.
