This Audio Authority 1170BK MultiDriver Expander makes it simple to add six additional Cat-5 ports to your SixDrive
AVM-71D or 1171BK Distribution System. 1170BK Expanders may
be stacked to serve up to 48 wallplates/receivers.
Like most Audio Authority products, the Model 1170BK comes with a one year limited warranty from the manufacturer.
Audio Authority's Description
Cat 5 Multidriver Expander
Model 1170BK
Expander designed for the SixDrive (1171BK or AVM-71).
Adds six additional outputs to Model 1171BK. The Model 1170BK Cat 5 outputs deliver identical audio and
video to six wallplate/receivers in remote locations. The outputs are not matrixed - only one source is possible
with the 1170BK. To expand matrixed output from an AVAtrix, use model 1176BK
It's easy to expand your SixDrive Cat 5 Distribution system to any size, up to 42 outputs. Simply stack
1170BK Expanders with the main Cat 5 driver and connect additional wallplate/receivers. See the PDF Installation
Manual for details.
- Adds six Cat 5 Wallplate outputs to 1171 MultiDriver
- Up to 1080p component video (YPbPr)
- Coaxial digital and stereo analog audio Infrared remote jack for IR pathway
- Cat 5 receivers powered through Cat 5 cable
- Three different Cat 5 wallplate/receiver options
Cat 5 Wallplate/Receiver Options
Choose from three different receiver styles: a single-gang Decora
wallplate, a dual-gang stainless steel wallplate, and a
breakout box. Wallplates are easy to install in a standard electrical
box, while the breakout box can be mounted on any flat surface. Two Cat 5 cables deliver component video,
digital audio and analog audio to each receiver. The 3.5mm IR jack provides a convenient pathway for a third
party IR remote distribution network over the Cat 5 pathway. Use compatible IR receivers and emitters (see
1171 manual). IR receiver and emitter equipment not included.
See a comparison chart showing the differences
between our Cat 5 receivers.
Product Dimensions (H-W-D):
Expander 1.75 x 16.7 x 9
Downloads
1170 User Manual (PDF file)
|
Additional Information
This item may ship from any one of multiple locations, so if you choose a ground shipping method, that could affect
transit time to your location. Lead time is typically two business days. If you have any questions about
this, please contact us.
Why Cable Solutions?
Cable Solutions is an Audio Authority Authorized Reseller, so our customers get the full benefit of Audio Authority's
factory-direct support and warranty.
Customer service is our first priority. We do our best to help you find the best solutions for your particular
application. We're enthusiasts too, so we know what it's like to wait for cables and accessories that are needed
to hook up new gear. We also know how important it is to be able to get a response when you need help, so you'll
often find us working long hours in an effort to get you the answers that you need.
Design excellence, high quality materials, meticulous workmanship, and superior service...put it all together and
you get a superior product. Don't get stuck with bad advice, poor service, slow shipment or an inferior product.
If you want the best, here it is.
Miscellaneous
Please click here to read our policies and disclaimer. Thanks for reading all
of this!
|
Click on any of the pictures below for a closer view!

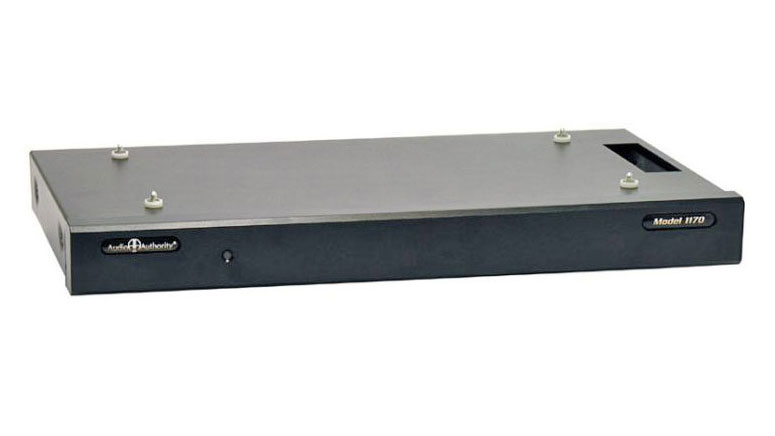

Audio Authority 1170BK 6-Port Cat-5 MultiDriver Expander

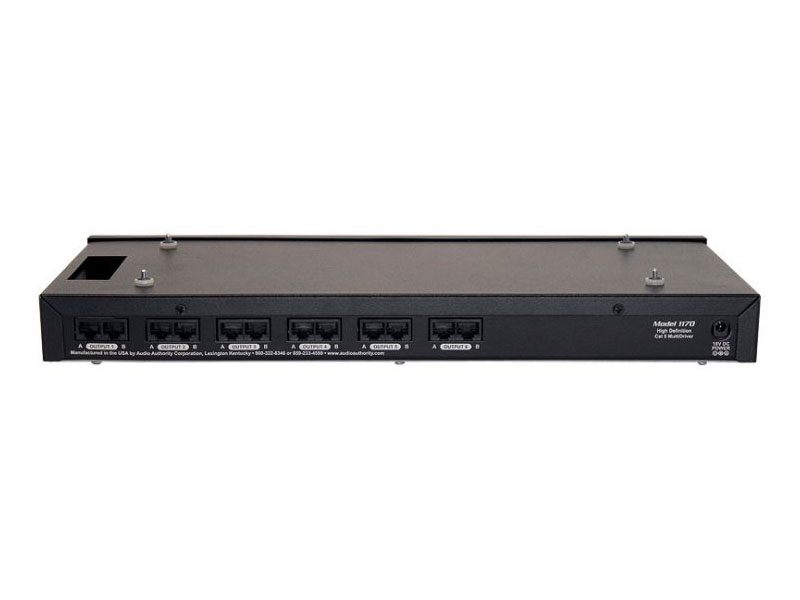

Here is a good look at the back panel of the unit.
In this photo, the Model 1170BK is shown stacked with a Model 1171BK Model 1171BK Cat-5 Single-Source
Multidriver
(1171BK not included)
Here is the manual - click to download in PDF format.
